Relay Control 5-3

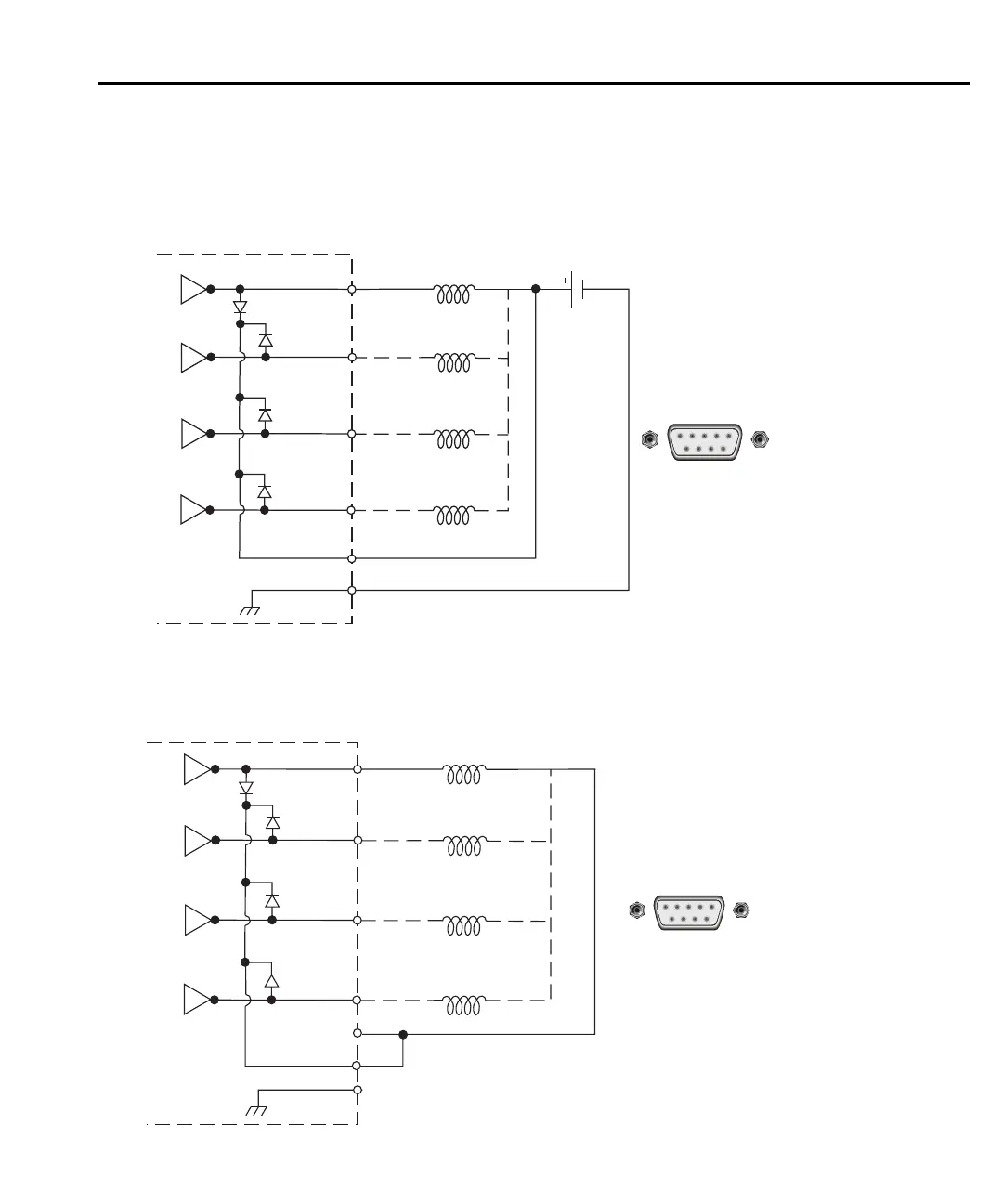

Figure 5-1

External source relay control

CAUTION For external source relay control:

-Do not exceed 100mA DC per channel

-Do not exceed +24V DC

Relay 1

Relay

Coil

Power Supply Relay Control

24VDC

Max

Chassis

Ground

External Source

Relay 2

Relay 3

Relay 4

Pin 5

Pin 4

Pin 2

Pin 1

Pin 7

Pins 3, 6, 9

Relay 1

Relay

Coil

Power Supply Relay Control

+5VDC

Chassis

Ground

Relay 2

Relay 3

Relay 4

CAUTION

For internal source relay control:

-Do not exceed 100mA DC per channel

-Do not exceed 250mA DC total

Pin 5

Pin 4

Pin 2

Pin 1

Pin 7

Pins 3, 6, 9

Pin 8

Figure 5-2

Internal source relay control
