Keithley 2306 User Manual

2-4 Basic Power Supply Operation
Local sense
The 2306 battery and charger channels can be connected to operate with local sense leads
(2-wire connection) as shown in Figure 2-2. In this connection scheme, the sense inputs and sup-
ply outputs are jumpered at the rear of the supply.
External Test Circuit
Quick Disconnect
Connector
Model 2306
Source Input/Output
DVM Input
+
-
DVM +
DVM -
Source -
Source -
Sense -
Sense +
Source +
Source +
Twisted Pair
DUT

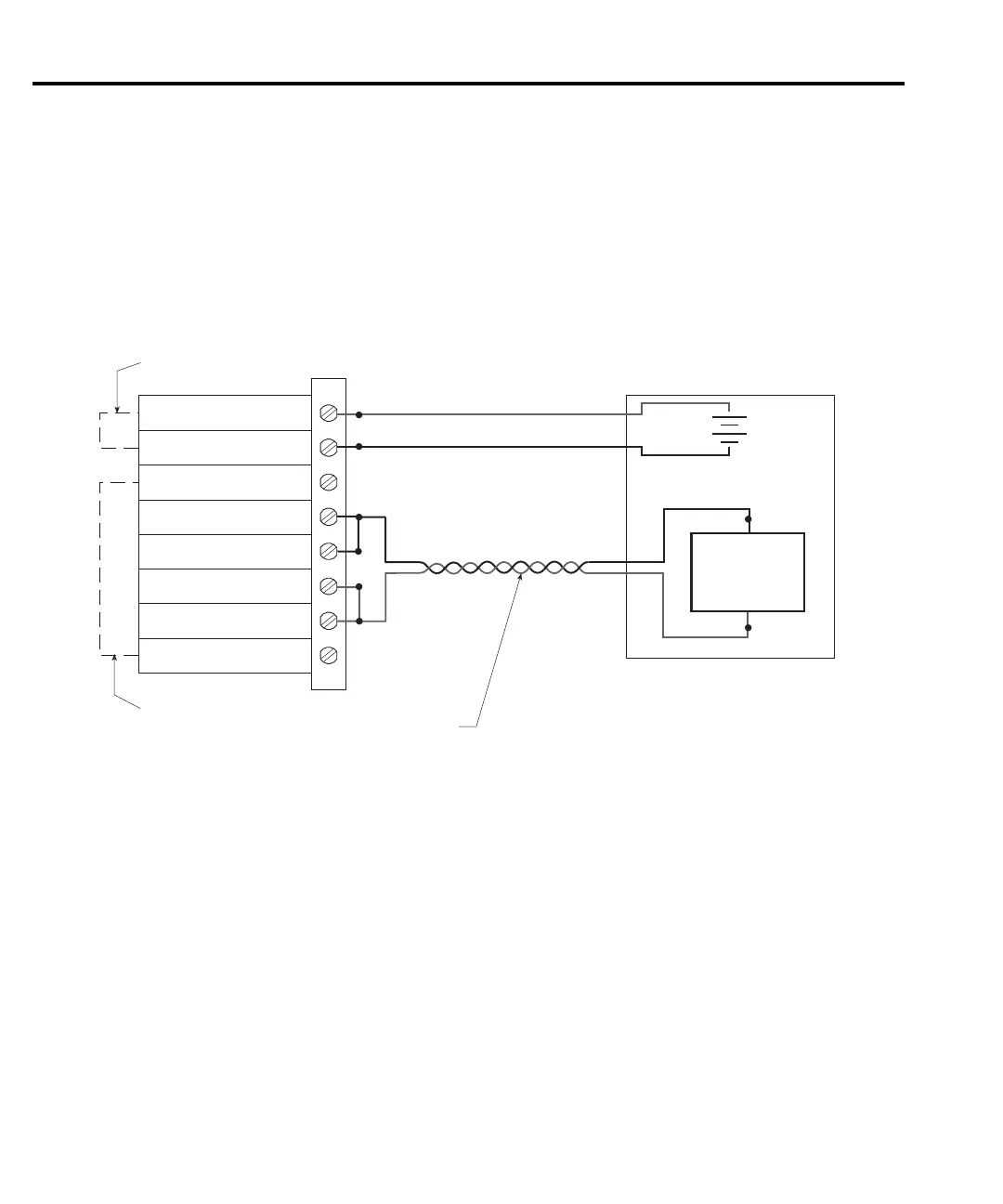

F
igure 2-2
L
ocal sense connections
RFI considerations
Operating the power supply in high RFI (Radio Frequency Interference) environments may
result in improper operation. For that reason, keep RFI to a minimum when operating the unit.
Additional shielding can be used to reduce RFI to an acceptable level.
