Keithley 2306 User Manual

1-4 Getting Started
Power supply overview
The Model 2306 power supply (dual channel battery/charger simulator — see Figure 1-1) can
simulate a battery (Channel #1) or a charger (Channel #2). Figure 1-2 shows the Model 2306-VS
front and rear panels.
NOTE Except where noted, all information in this manual pertaining to the Model 2306 and
2306-PJ a
lso applies to the Model 2306-VS. See Section 6 for information on opera-
tion specific to the Model 2306-VS.

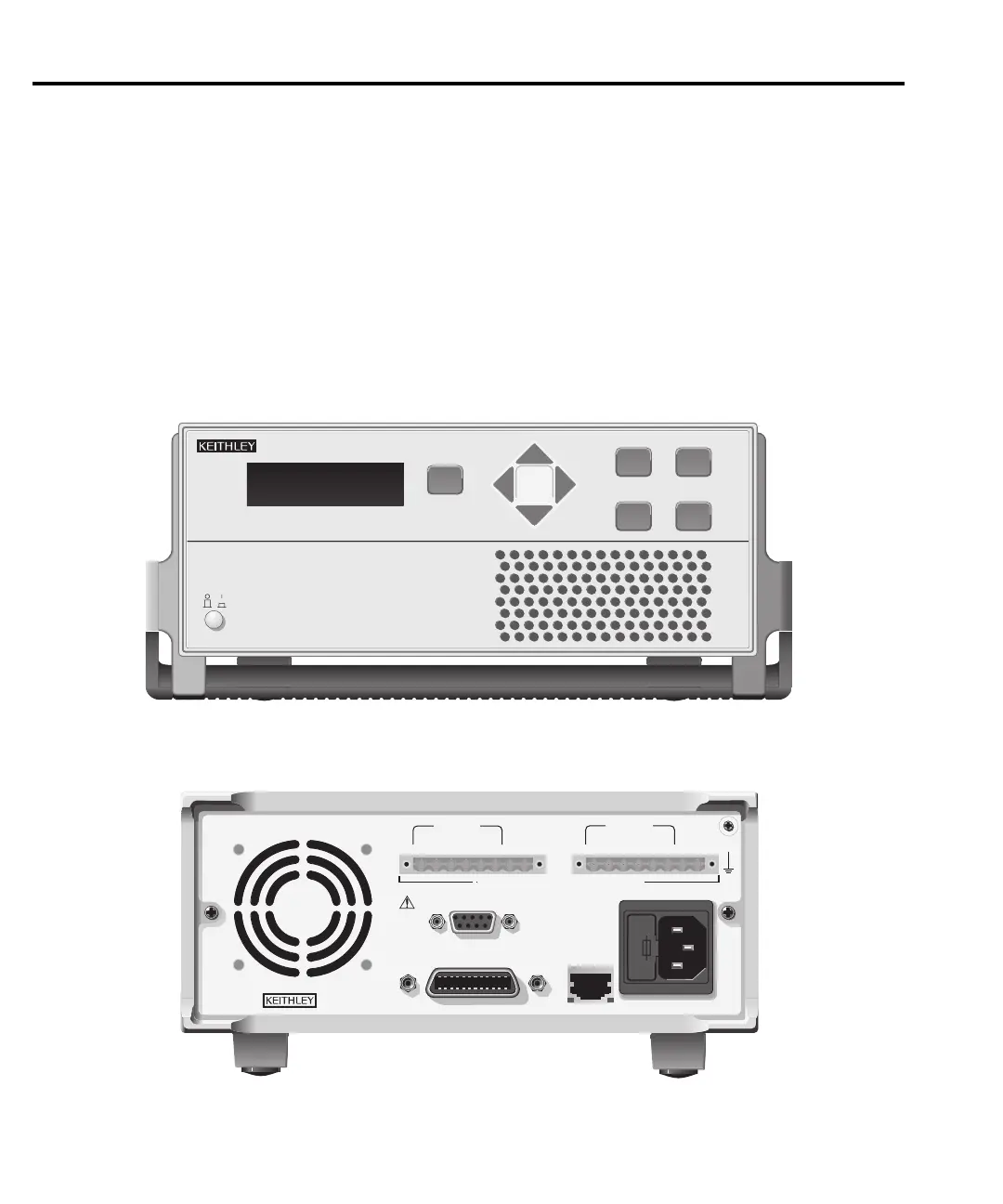

Figure 1-1
Model 2306 and 2306-PJ dual channel battery/charger simulator
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
LINE RATING
100-120VAC, 200-240VAC
50, 60 HZ 165VA MAX.
LINE FUSE
SLOWBLOW
2.0A, 250V
IEEE-488
(ENTER IEEE ADDRESS
FROM FRONT PANEL MENU)
REMOTE
DISPLAY
OPTION
+++
____
+
SOURCE SENSE
DVM IN
SOURCE
OUTPUT #1
A) Front Panel
B) Rear Panel
ISOLATION FROM EARTH: 22 VOLTS MAX.
RELAY
CONTROL
24VDC MAX.
POWER
DISPLAY
OPERATE
ENTER
SET
MENU
LOCAL
2306 DUAL CHANNEL BATTERY/CHARGER SIMULATOR
+++
____
+
SOURCE SENSE
DVM IN
SOURCE
OUTPUT #2
DVM IN
+30 VDC MAX.
CAT
I
