OPERATION
TRANSPORTATION

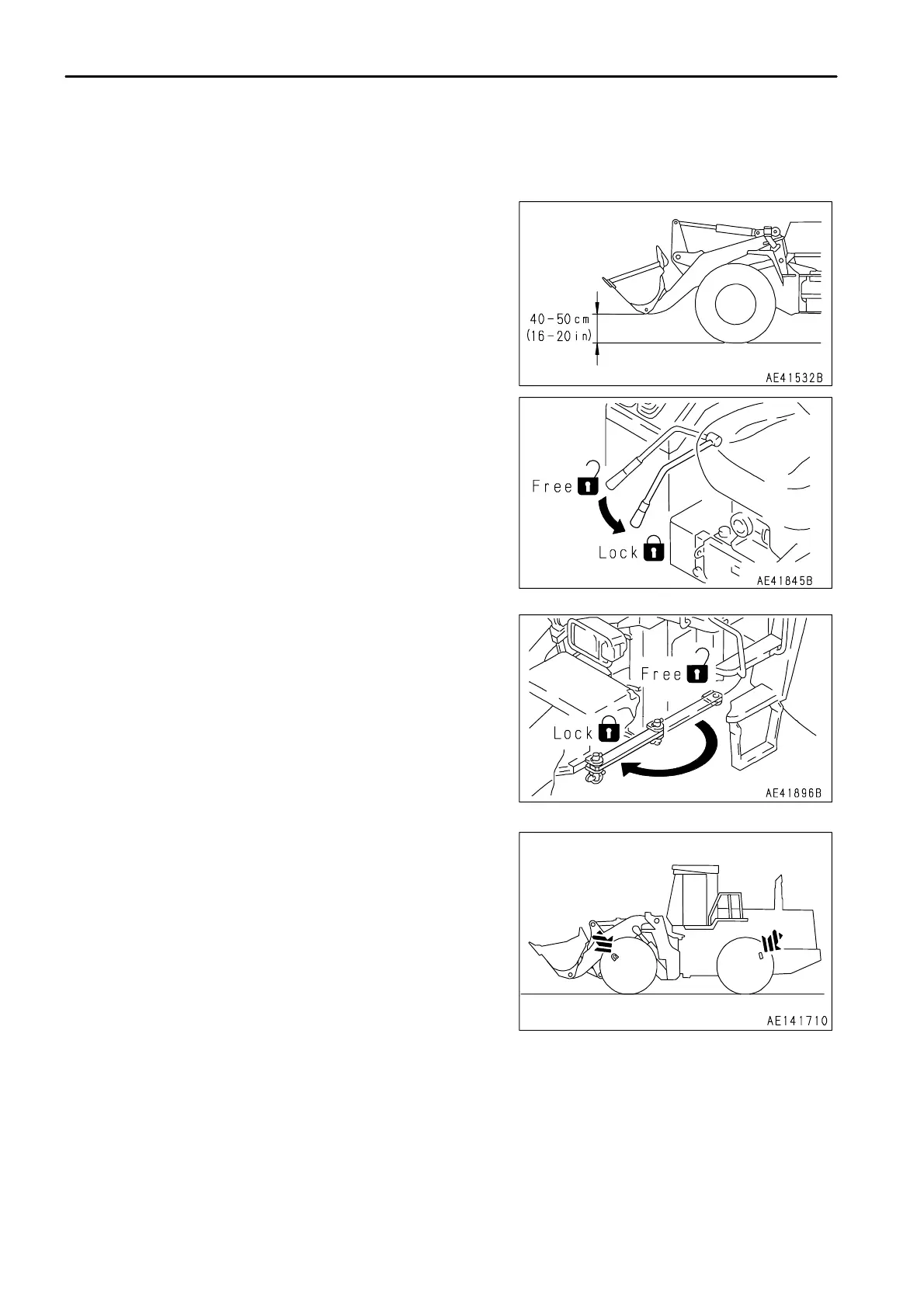

LIFTING PROCEDURE
The machine can be lifted only if it has hook mark labels.
When lifting the machine, stop the machine on level ground and do as follows.
1. Start the engine, make sure that the machine is horizontal,
then set the work equipment to the travel posture.
For details, see "PREPARATIONS FOR MOVING MACHINE
(PAGE 3-55)".
2. Move the work equipment safety lock lever to the LOCK
position.
3.
Stop the engine, check that the area around the operator's
compartment is safe, then lock with the safety bar so that the
front frame and rear frame do not articulate.
4.
Select wire ropes, slings, spreader bars and other lifting
equipment to match the weight of the machine, and fit the wire
ropes to the lifting hooks at the front of the front frame and the
rear of the rear frame (lifting hook marks).
5. When the machine comes off the ground (raised 10 to 20
cm(3.9 to 7.9 in)), stop the lifting operation, check carefully that
the machine is balanced and that the wire ropes are not loose,
then continue the lifting operation slowly.
3 - 86
