OPERATION
EXPLANATION OF COMPONENTS
BACKUP ALARM
This sounds an alarm when the directional lever is set to the R position. It is used to warn people behind the machine
that the machine will travel in reverse.

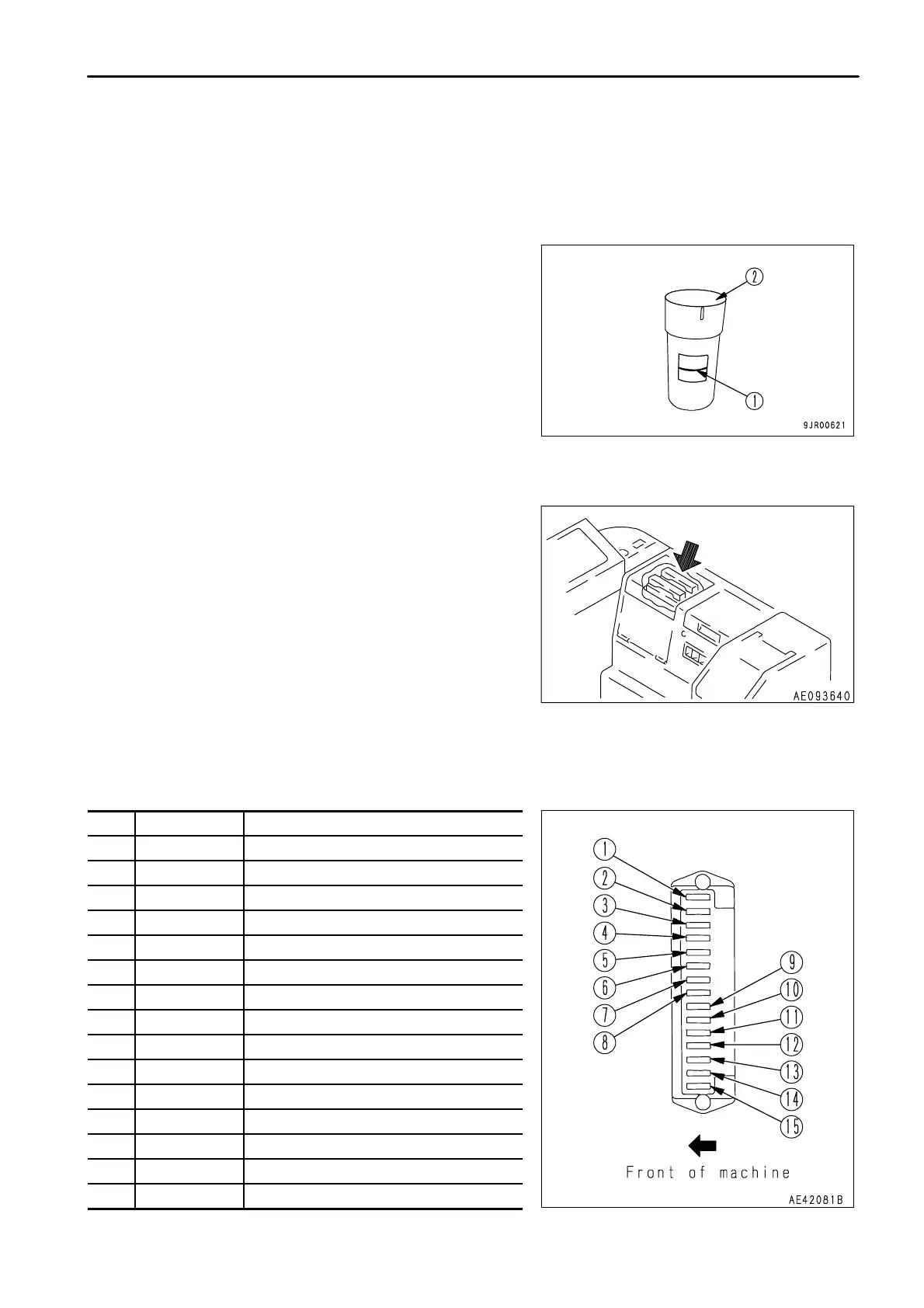

DUST INDICATOR
This device indicates clogging of the air cleaner.
Depending on the degree of clogging of the element, red line (1)
appears in the transparent portion. If red line (1) indicates 0.0075
MPa (30 INCHES H2O) (0.076 kg/cm
2
, 1.1 PSI), clean the element
immediately.
After cleaning, press top portion (2) of the indicator to return red
line (1) to its original position.
FUSE
NOTICE
Before replacing a fuse, be sure to turn off the starting switch.
The fuses protect the electrical equipment and wiring from burning
out.
If the fuse becomes corroded, or white powder can be seen, or the
fuse is loose in the fuse holder, replace the fuse.
Replace the fuse with another of the same capacity.
FUSE CAPACITY AND NAME OF CIRCUIT
FUSE BOX 1
No. Fuse capacity Name of circuit
(1) 20A Main lamp circuit
(2) 20A Backup lamp, brake lamp
(3) 10A Turn signal indicator lamp
(4) 10A R.H. head lamp
(5) 10A L.H. head lamp
(6) 10A R.H. side clearance lamp
(7) 10A L.H. side clearance lamp
(8) 10A Parking brake
(9) 10A Transmission control
(10) 10A Instrument panel
(11) 10A Work equipment positioner
(12) 10A Starting switch
(13) 20A Hazard lamp
(14) 20A Engine controller
(15) 10A Auto-greasing (if equipped)
3 - 33
