OPERATION
GENERAL VIEW
GENERAL VIEW

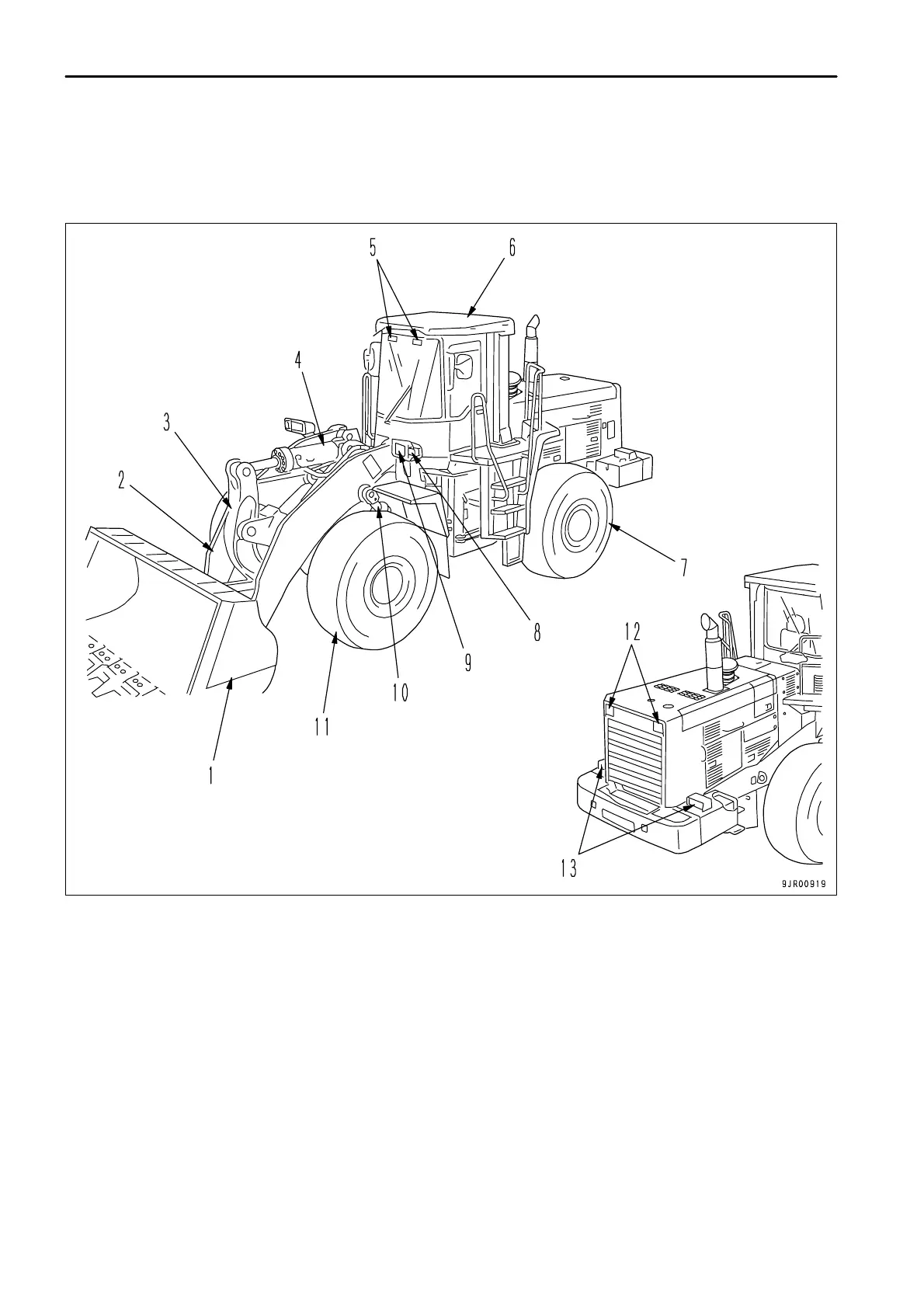

GENERAL VIEW OF MACHINE
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Bucket
Lift arm
Tilt lever
Bucket cylinder
Front working lamp
ROPS
Rear wheel
(8)
(9)
(10)
(11)
(12)
(13)
Turn signal lamp
Head lamp
Lift cylinder
Front wheel
Rear working lamp
Rear combination lamp
