ATTACHMENTS, OPTIONS
HANDLING JOYSTICK STEERING SYSTEM
ADJUSTMENT OF JOYSTICK CONSOLE
WARNING
Stop the machine on level ground in a safe place when carrying out the adjustment.
Carry out the adjustment before starting operations or when changing operator shifts.
Put your back against the backrest of the operator's seat and adjust the seat so that it is possible to depress the brake fully,
then adjust the console.

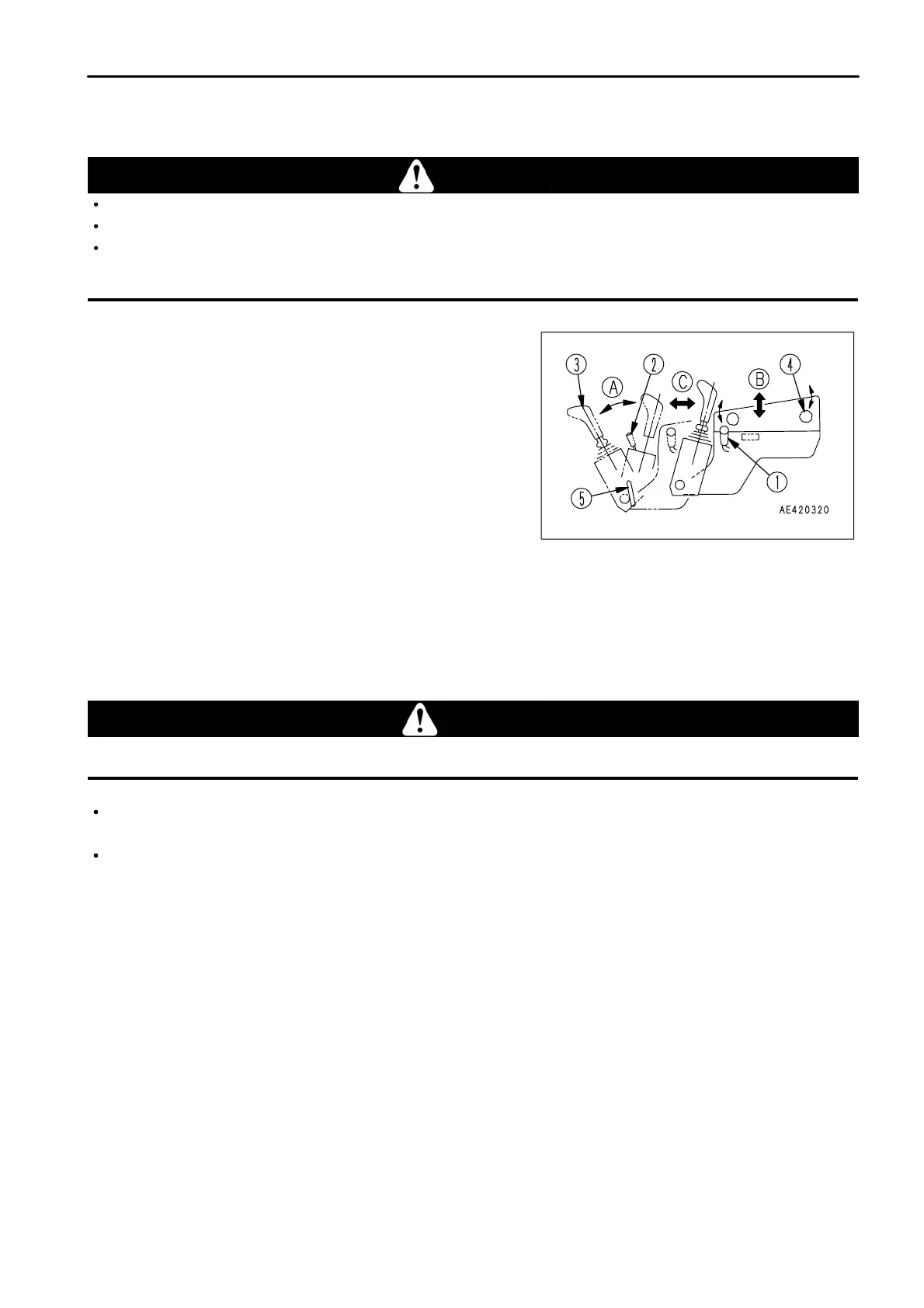

(A) Adjustment of joystick
Turn lever (2) forward and set the knob to a desired position.
After setting, release the lever.
Forward/Backward adjustment: 130 mm (5.12 in)(At knob top)
Loosen lever (5) and move the console to the rear until it contacts
the stopper, then tighten lever (5). In this way, lever (3) can be set
to the desired position, and there will be no need to adjust the
position of lever (3) in future.
(B) Adjustment of height of armrest (Left-hand)
Turn grip (4) to unlock the armrest, then set the armrest to a desired position.
After setting, tighten the grip securely.
Vertical adjustment range: 35 mm (1.38 in)
(C) Sliding of console
CAUTION
When traveling or operating the work equipment, be sure to lock the console at the forward stroke end.
When getting on or off the machine, pull up lever (1) and slide the console to the rear.
When doing this, do not stop the console half way, but slide it fully to the rear and lock it in position.
After getting of the machine, be sure to slide the console fully to the front and lock it in position.
6 - 21
