MAINTENANCE
SERVICE PROCEDURE
CHANGE OIL IN TRANSMISSION CASE, CLEAN STRAINER
WARNING
The parts and oil are at high temperature immediately after the engine is stopped, and may cause burns. Wait for the
temperature to go down before starting the work.
When removing the oil filler cap, turn it slowly to release the internal pressure, then remove it.
Refill capacity: 62 liters (16.4 US gal)

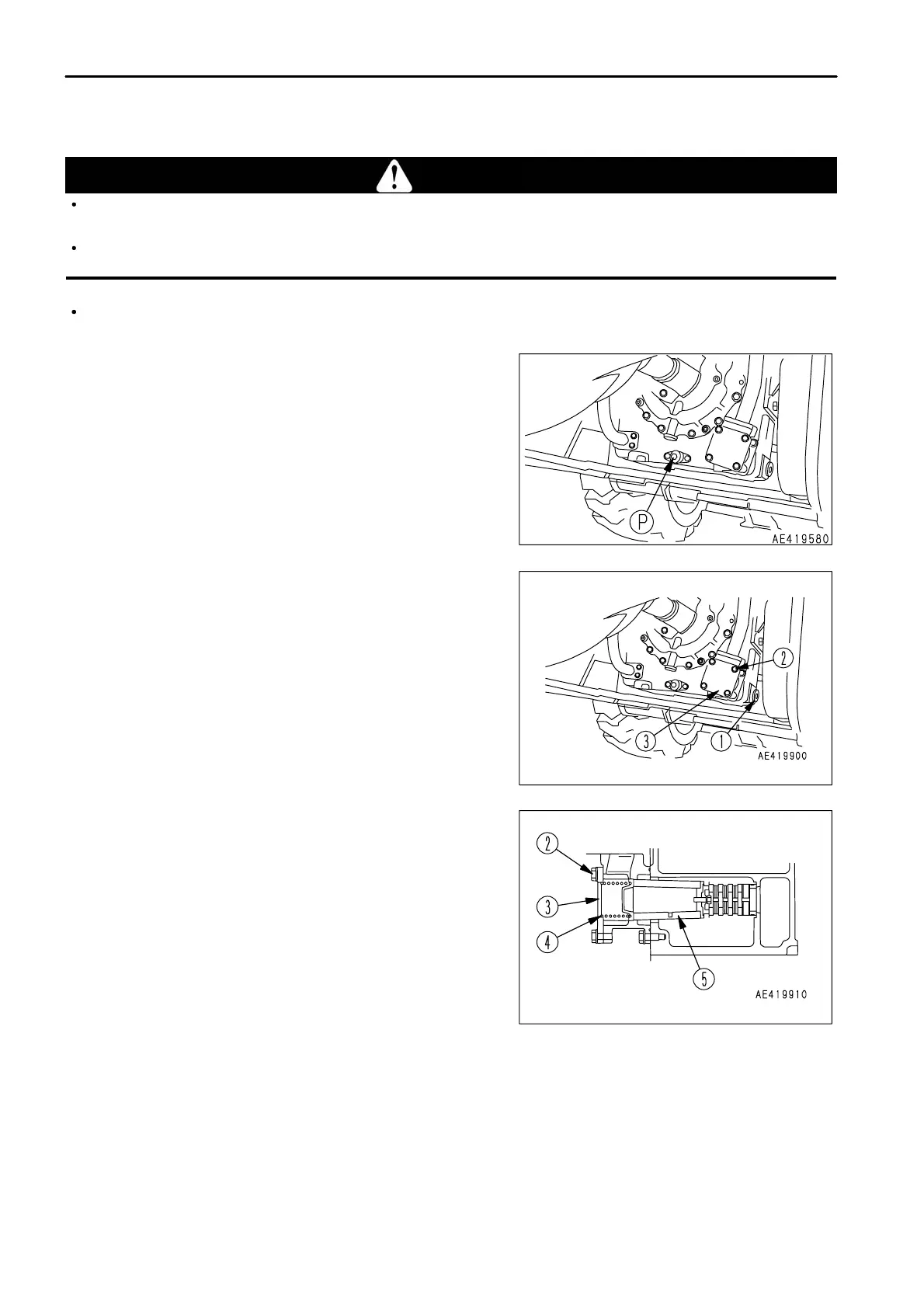

1.
Set a container to catch the oil under drain plug (P), then
remove drain plug (P) and drain the oil.
To prevent the oil from pouring out suddenly, loosen drain plug
(P) and remove it gradually.
2.
After draining the oil, install drain plug (P).
Tightening torque: 68.6 ± 9.8 Nm
(7.0 ± 1.0 kgm , 50.6 ± 7.2 lbft)
3.
Set a container to catch the oil under the transmission filter.
4.
Remove drain plug (1) of the transmission filter, drain the oil,
then tighten the plug again.
Tightening torque: 108 ± 14.7 Nm
(11 ± 1.5 kgm , 79.6 ± 10.8 lbft)
5. Remove bolt (2), then remove cover (3) and take out strainer
(5), which is screwed into cover (3).
6.
Remove any dirt stuck to strainer (5), then wash it in clean
diesel oil or flushing oil. If strainer (5) is damaged, replace it
with a new part.
7.
Install spring (4) and strainer (5) to cover (3).
Replace the O-ring on the cover with a new part, then install the
cover.
4 - 56
