OPERATION
EXPLANATION OF COMPONENTS

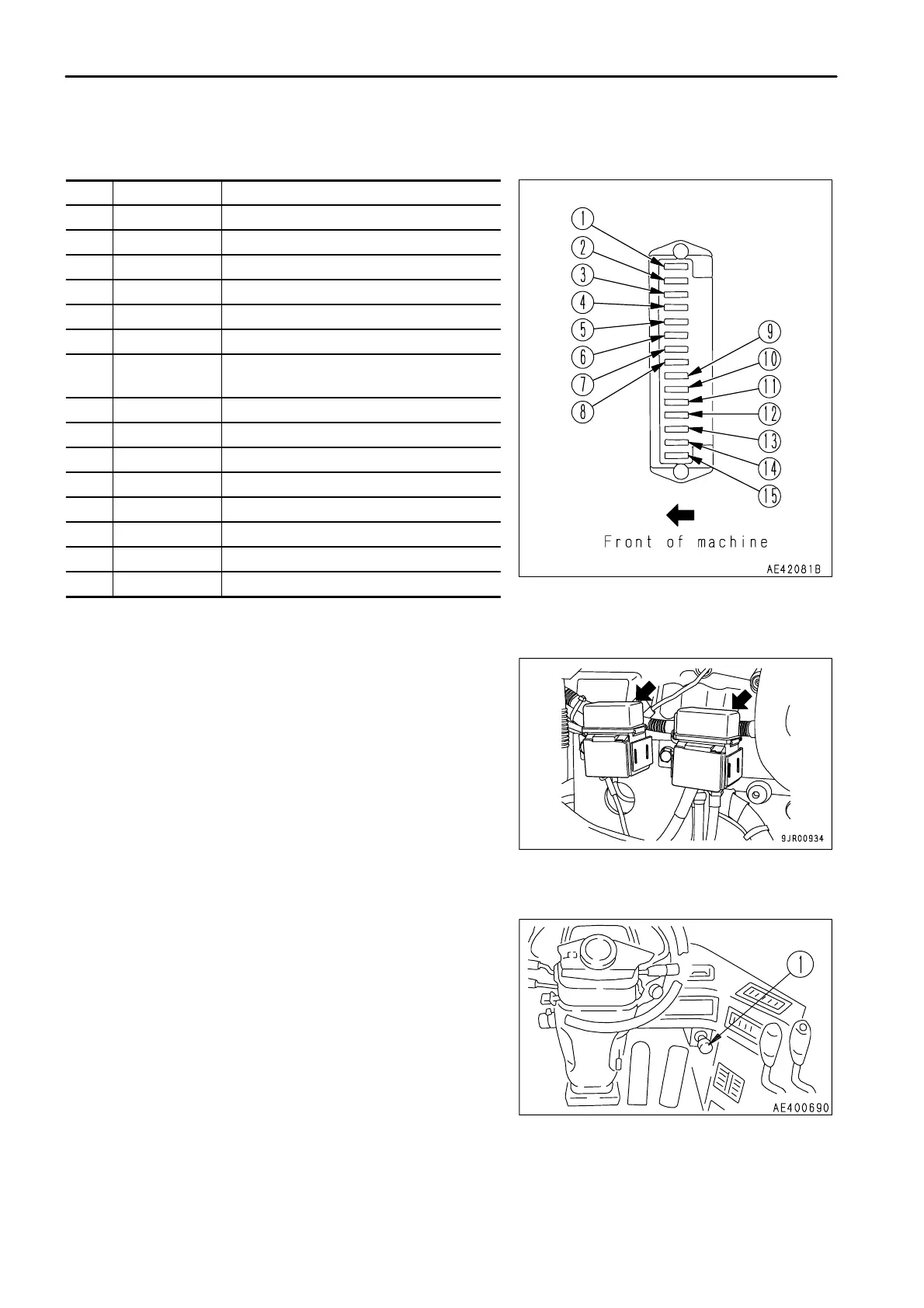

FUSE BOX 2
No. Fuse capacity Name of circuit
(1) 20A Front working lamp
(2) 20A Rear working lamp
(3) 30A Air conditioner 1
(4) 20A Air conditioner 2
(5) 20A Wiper, washer
(6) 10A Auto shift
(7) 10A
Cigarette lighter (if equipped),
radio (if equipped)
(8) 10A Rotating lamp (if equipped)
(9) 10A Air suspension (if equipped)
(10) 10A Auto-greasing (if equipped)
(11) 30A Spare
(12) 20A Power window (L.H.)
(13) 20A Power window (R.H.)
(14) 10A Spare
(15) 10A Spare
SLOW BLOW FUSE
If the power does not come on when the starting switch is turned to
the ON position, there is probably a disconnection in the slow blow
fuse, so inspect and replace it.
The slow blow fuse is on the left side of the machine at the side of
the engine.
SLOW BLOW FUSE
(1) 120A: Heater relay (glow plug)
(2) 80A: Main power
(3) 30A: Battery power (starting switch, hazard)
POWER OUTLET
Removing the cigarette lighter (1) allows use of its power. The
maximum electric current is 7A (168 W).
