MAINTENANCE
SERVICE PROCEDURE
CLEANING OR REPLACING OUTER ELEMENT

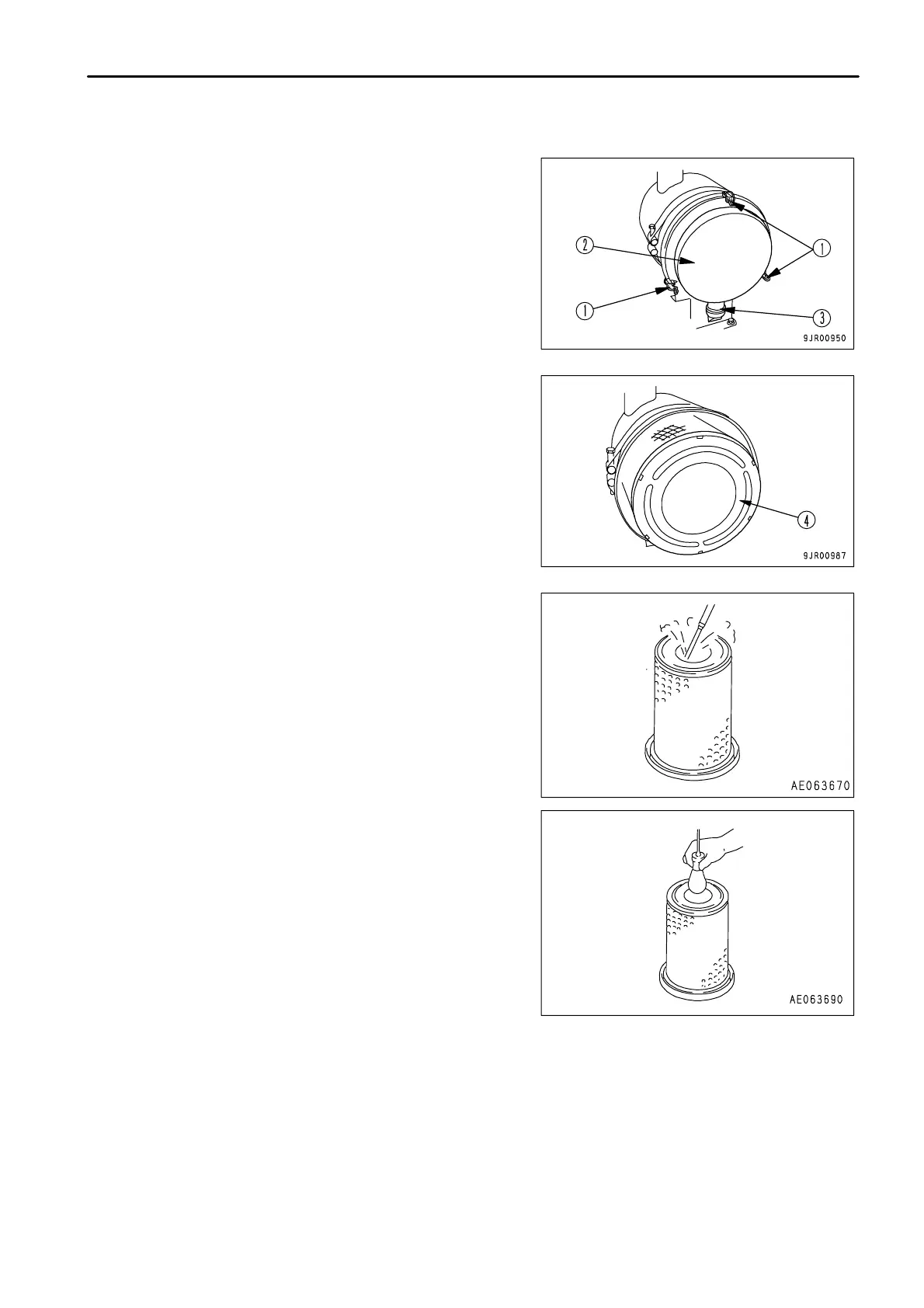

1.
Remove lock (1) of the cover, then remove cover (2).
2.
Remove outer element (4).
3. Clean the air cleaner body interior and the cover.
4.
Direct dry compressed air (less than 0.69 MPa (7 kg/ cm
2
, 99.4
PSI)) to the element from inside along its folds, then direct it
from outside along its folds and again from inside.
1)
Remove one seal every time the element is clean.
2)
Replace the outer element if it has been cleaned 6 times
repeatedly or used throughout a year. Replace the inner
element at the same time.
3)
Replace both inner and outer elements when the dust
indicator red piston appears soon after installing the
cleaned outer element even though it has not been
cleaned 6 times.
4) Remove actuator valve (3), then clean it with compressed
air. After cleaning, install it again.
NOTICE
If small holes or thinner parts are found on the element when it is checked
with an electric bulb after cleaning and drying, replace the element.
When cleaning the element, do not hit it or beat it against something.
Do not use an element whose folds or gasket or seal are damaged.
5.
After cleaning the element, install it, then install cover (2).
6. After cleaning or replacing the element, return the red display of the dust indicator to its original position.
