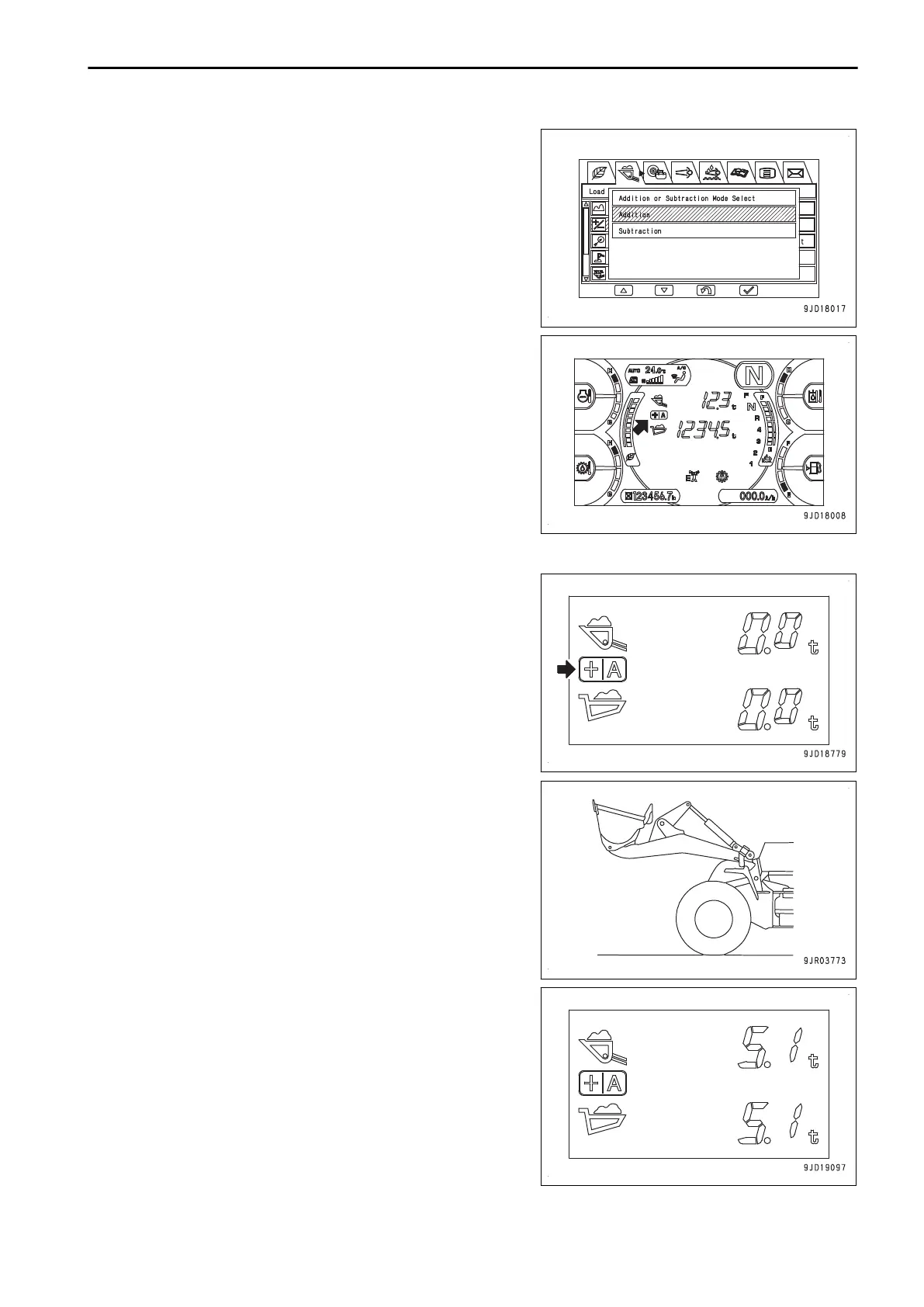

4.
Press UP switch (2) or DOWN switch (3) to select “Addi-
tion”, and press ENTER switch (4).
When the display returns to the standard screen, the indi-
cation changes to “+” and the Addition mode is selected.
METHOD FOR USING ADDITION MODE
Set the load meter to Addition mode.
The explanation is made when “A” is selected for the handled
material.
1.
Load the bucket with the first load, tilt back the bucket fully,
raise the boom above the horizontal level, and dump the
load onto a dump truck.
At this time, if the load is assumed to be 5.1 t, both indica-
tions of bucket load and total load are displayed as 5.1 t.
ATTACHMENTS AND OPTIONS HANDLE LOAD METER
6-49
