When a message appears
6
bizhub 160/161
6-27
6.8
When the message MA
CHINE TROUBLE appear
s

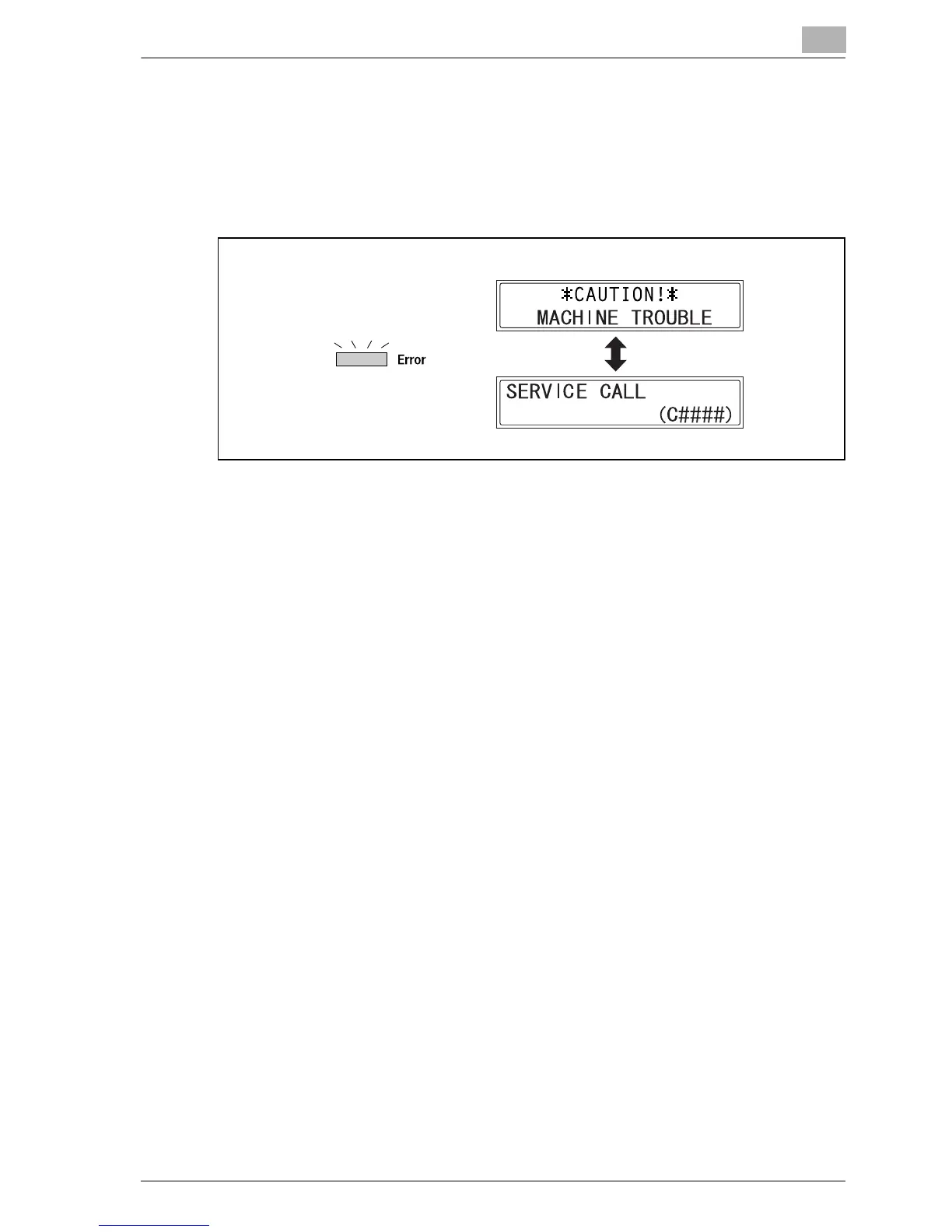

If the message shown below
appears, some machine ma
lfunction has oc-
curred. Contact your service representativ
e. When contacting the service
representative, be sure to inform them of the
machine code (error code:
C####) that was indicated.
