8 ERGONOMICS 87
0
0
AA
402300-10
–

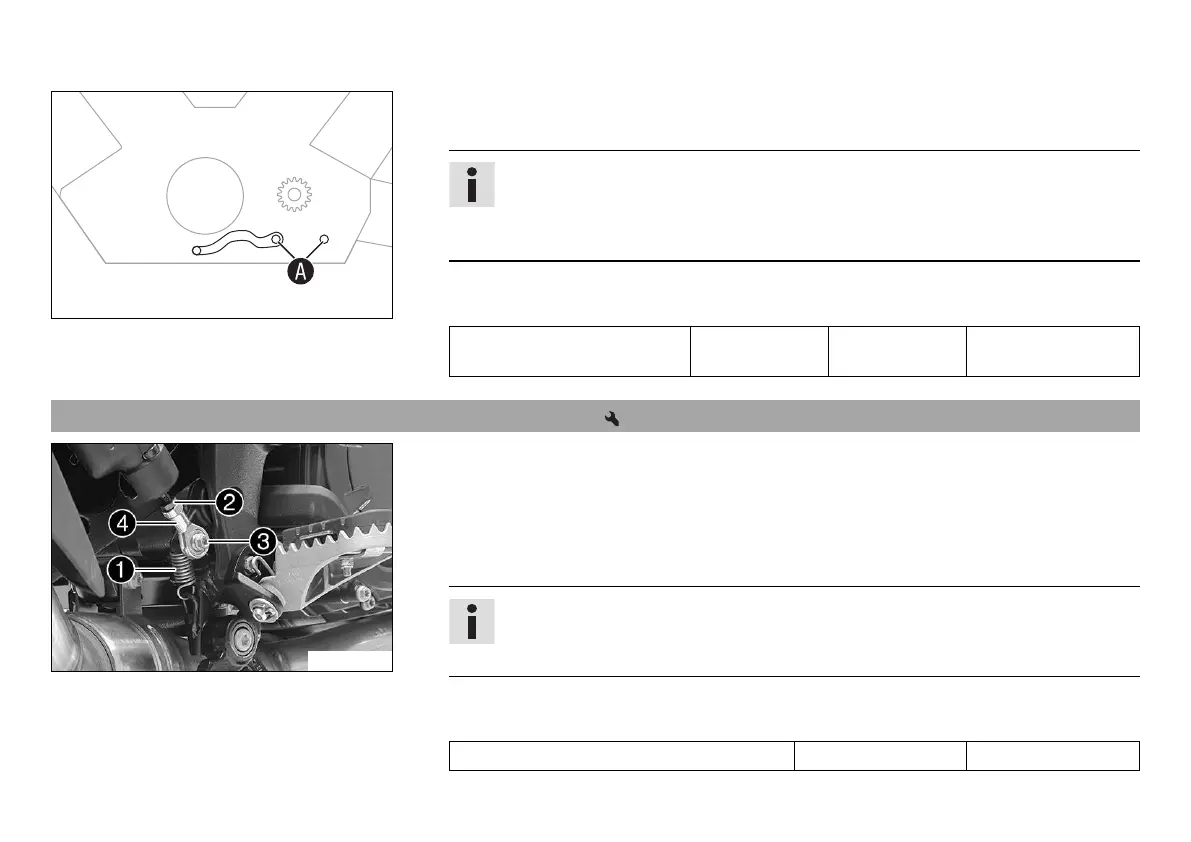

Clean gear teeth

of the shift lever and shift shaft.
– Mount the shift lever on the shift shaft in the required position and engage the gearing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any other vehicle components
during the shift procedure.
–
Locate and tighten screw

with washers.
Guideline
Screw, shift lever M6 18 Nm
(13.3 lbf ft)
Loctite
®
243™
8.12 Adjusting the basic position of the foot brake lever
M00828-10
–
Disconnect spring

.
–
Loosen nut

.
–
Remove screw

.
– To adjust the basic position of the foot brake lever to individual requirements, turn ball
joint

accordingly.
Info
The range of adjustment is limited.
The screw must be screwed into the ball joint by at least 5 turns.
–
Hold ball joint

and tighten nut

.
Guideline
Remaining chassis nuts M6 10 Nm (7.4 lbf ft)

KTM 1290 Super Adventure Specifications

General

Displacement	1301 cc
Transmission	6-speed
Power	160 hp (118 kW)
Torque	138 Nm
Fuel Capacity	23 liters
Front Suspension	WP Semi-active Suspension
Rear Suspension	WP Semi-active Suspension
Front Brakes	Dual 320 mm discs, 4-piston calipers
Rear Brakes	267 mm disc, 2-piston caliper
ABS	Yes
Traction Control	Yes, MTC (Motorcycle Traction Control)
Wheelbase	1, 560 mm
