ERGONOMICS 8
103
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)

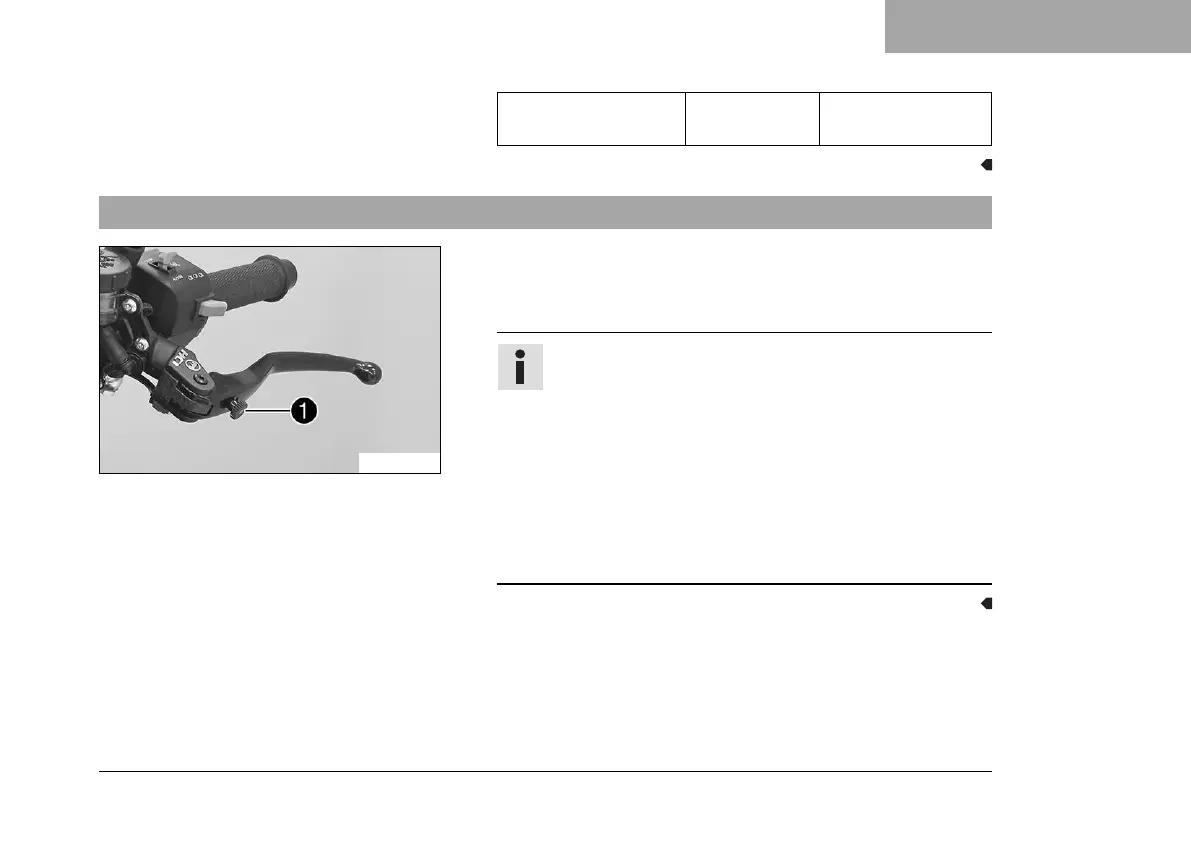

8.3 Adjusting the basic position of the clutch lever
S01728-10
– Push the clutch lever forward.
– Adjust the basic position of the clutch lever to your hand size
by turning adjusting screw
1
.
Info
Turn the adjusting screw clockwise to increase the
distance between the clutch lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease
the distance between the clutch lever and the handle-
bar.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not use
force.
Do not make any adjustments while riding.
