KTM 1290 Super Duke R 2018 User Manual

16 ELECTRICAL SYSTEM
236

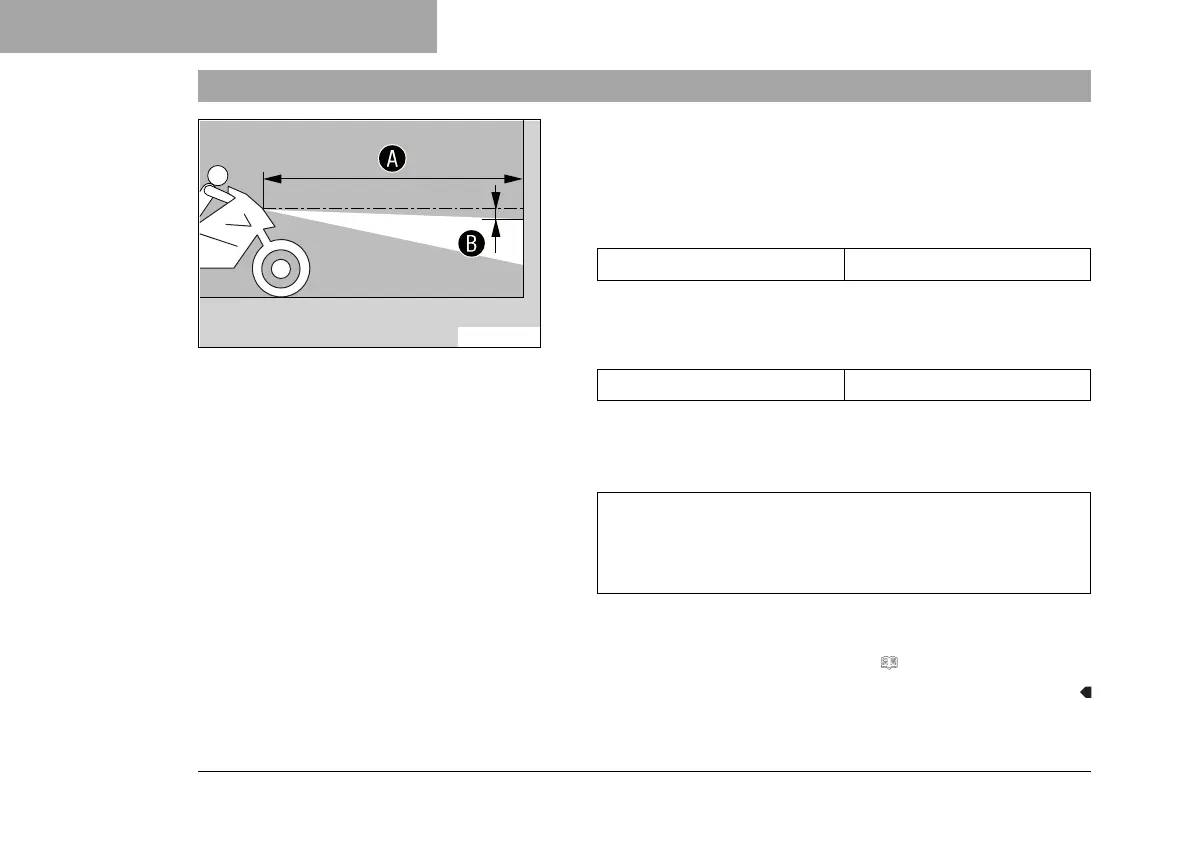

16.8 Checking the headlight setting
400726-10
– Park the vehicle on a horizontal surface in front of a light-
colored wall and make a mark at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance
A
from the wall and switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider, with luggage and passenger if applicable, now
mounts the motorcycle.
– Check the headlight setting.
The light-dark boundary must lie exactly on the lower
mark when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 237)

KTM 1290 Super Duke R 2018 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP monoshock
Traction Control	MTC (Motorcycle Traction Control)
Ground Clearance	140 mm
Seat Height	835 mm
Fuel Capacity	18 liters
Dry Weight	189 kg
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Power	177 hp (130 kW) @ 9, 750 rpm
Torque	141 Nm @ 7, 000 rpm
Fuel System	Electronic fuel injection
Frame	Chromoly steel trellis frame, powder coated
Front Brake	2 x Brembo, 320 mm
Rear Brake	Brembo twin-piston fixed caliper, 240 mm
Wheelbase	1482 mm
