KTM 1290 Super Duke R 2018 User Manual

7 COMBINATION INSTRUMENT
72
Fuel Range indicates the possible distance you can cover with the
fuel reserve.
Press and
hold the SET
button for 3-5
seconds.
In the Trip 1 menu all entries apart from
Fuel Rangeare deleted.

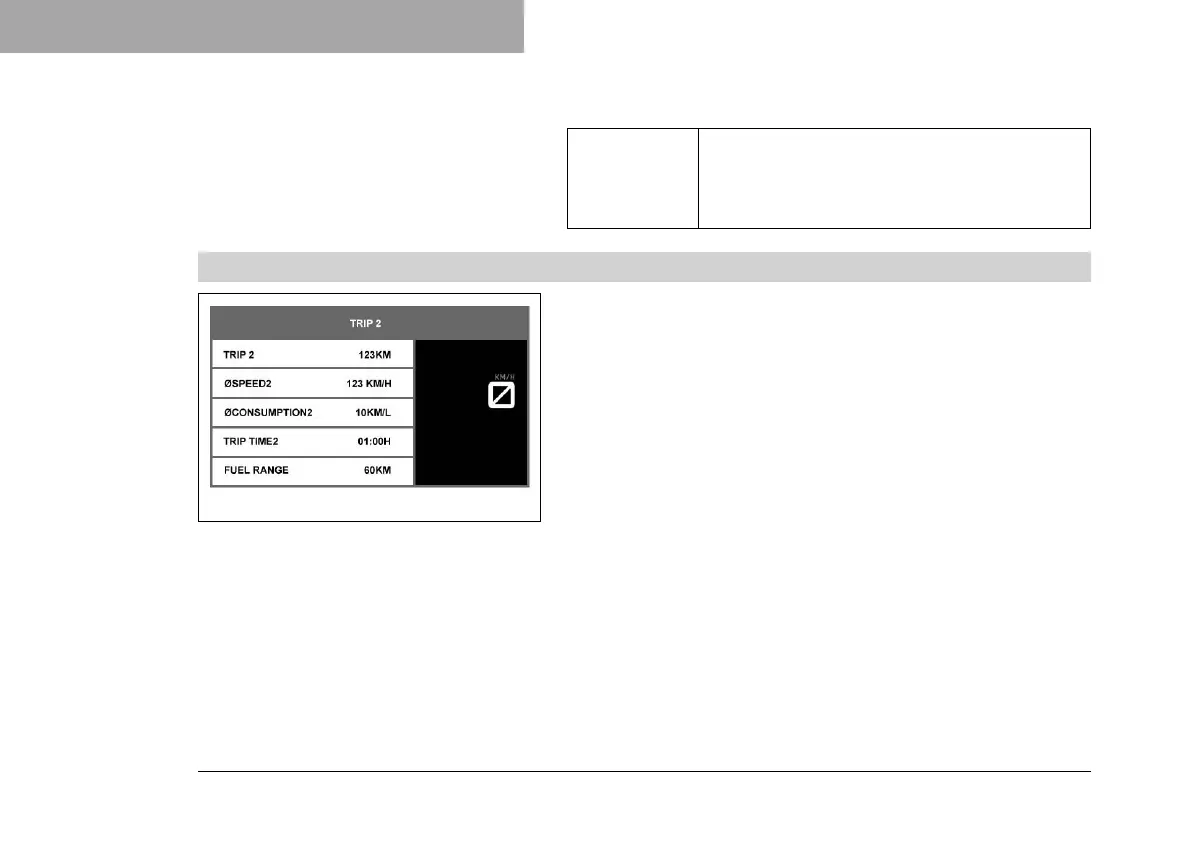

7.14.4 Trip 2
K00749-01
– Press the SET button when the menu is closed.
– Press the UP or DOWN button until Trip 2 menu is marked on
the display. Press the SET button to open the menu.
Trip 2 shows the distance since the last reset, such as between two
refueling stops. Trip 2 is running and counts up to 9999.
Ø Speed 2 indicates the average speed based on Trip 2 and
Trip Time 2.
Ø Consumption 2 indicates the average fuel consumption based on
Trip 2.
Trip Time 2 shows the journey time on the basis of Trip 2 and runs
as soon as there is a speed signal.
Fuel Range indicates the possible distance you can cover with the
fuel reserve.

KTM 1290 Super Duke R 2018 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP monoshock
Traction Control	MTC (Motorcycle Traction Control)
Ground Clearance	140 mm
Seat Height	835 mm
Fuel Capacity	18 liters
Dry Weight	189 kg
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Power	177 hp (130 kW) @ 9, 750 rpm
Torque	141 Nm @ 7, 000 rpm
Fuel System	Electronic fuel injection
Frame	Chromoly steel trellis frame, powder coated
Front Brake	2 x Brembo, 320 mm
Rear Brake	Brembo twin-piston fixed caliper, 240 mm
Wheelbase	1482 mm
