KTM 1290 Super Duke R 2018 User Manual

8 ERGONOMICS
108

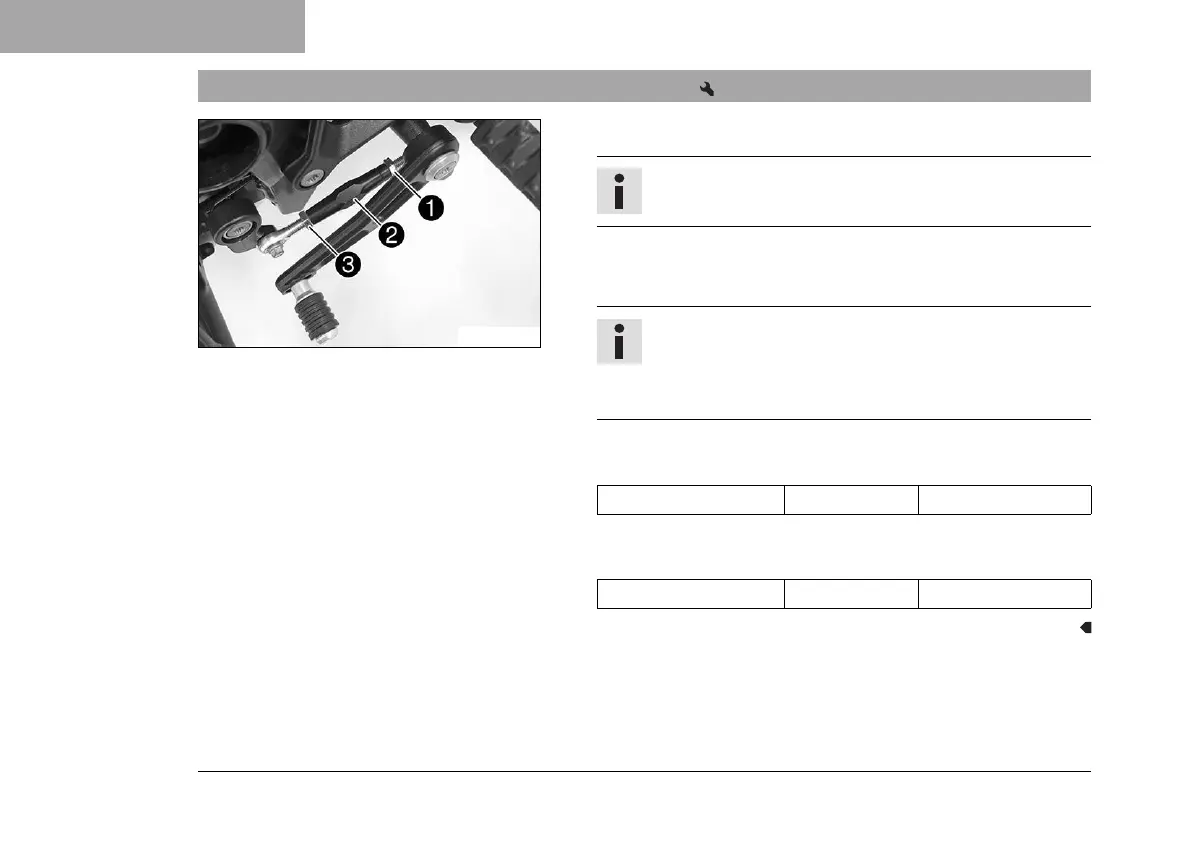

8.8 Adjusting the basic position of the shift lever
S01732-10
–
Loosen nut
1
, holding the threaded rod
2
.
Info
Nut
1
has a left-handed thread.
–
Loosen nut
3
, holding the threaded rod
2
.
–
Turn threaded rod
2
to adjust the shift lever.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift procedure.
–
Tighten nut
3
, holding the threaded rod
2
.
Guideline
Nut, shift rod M8 12 Nm (8.9 lbf ft)
–
Tighten nut
1
, holding the threaded rod
2
.
Guideline
Nut, shift rod M8LH 12 Nm (8.9 lbf ft)

KTM 1290 Super Duke R 2018 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP monoshock
Traction Control	MTC (Motorcycle Traction Control)
Ground Clearance	140 mm
Seat Height	835 mm
Fuel Capacity	18 liters
Dry Weight	189 kg
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Power	177 hp (130 kW) @ 9, 750 rpm
Torque	141 Nm @ 7, 000 rpm
Fuel System	Electronic fuel injection
Frame	Chromoly steel trellis frame, powder coated
Front Brake	2 x Brembo, 320 mm
Rear Brake	Brembo twin-piston fixed caliper, 240 mm
Wheelbase	1482 mm
