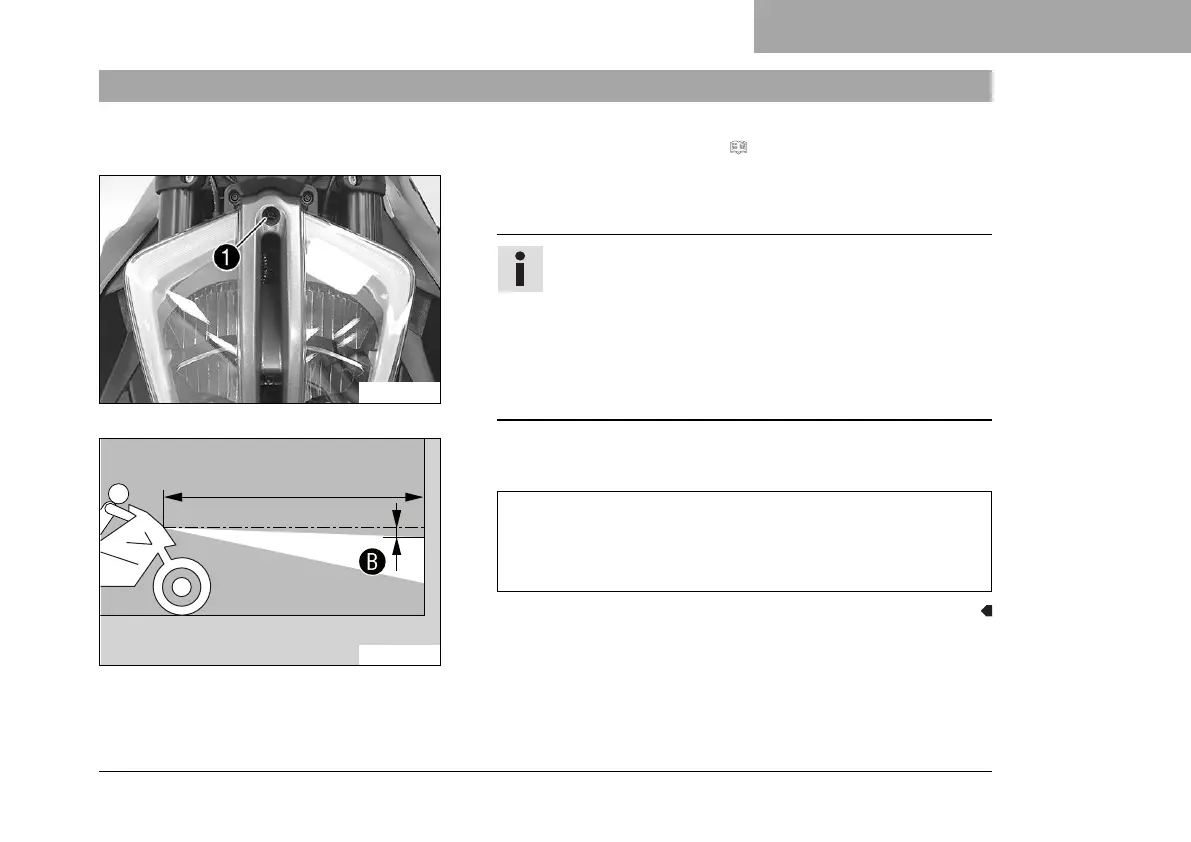

16.9 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 236)
E00679-10
Main work
–
Turn adjusting screw
1
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
Screw
1
also secures the headlight. Ensure the screw
is always screwed in far enough.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark
B
when the motorcycle is ready to operate with the rider
mounted along with any luggage and a passenger if applica-
ble.

KTM 1290 Super Duke R 2018 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP monoshock
Traction Control	MTC (Motorcycle Traction Control)
Ground Clearance	140 mm
Seat Height	835 mm
Fuel Capacity	18 liters
Dry Weight	189 kg
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Power	177 hp (130 kW) @ 9, 750 rpm
Torque	141 Nm @ 7, 000 rpm
Fuel System	Electronic fuel injection
Frame	Chromoly steel trellis frame, powder coated
Front Brake	2 x Brembo, 320 mm
Rear Brake	Brembo twin-piston fixed caliper, 240 mm
Wheelbase	1482 mm
