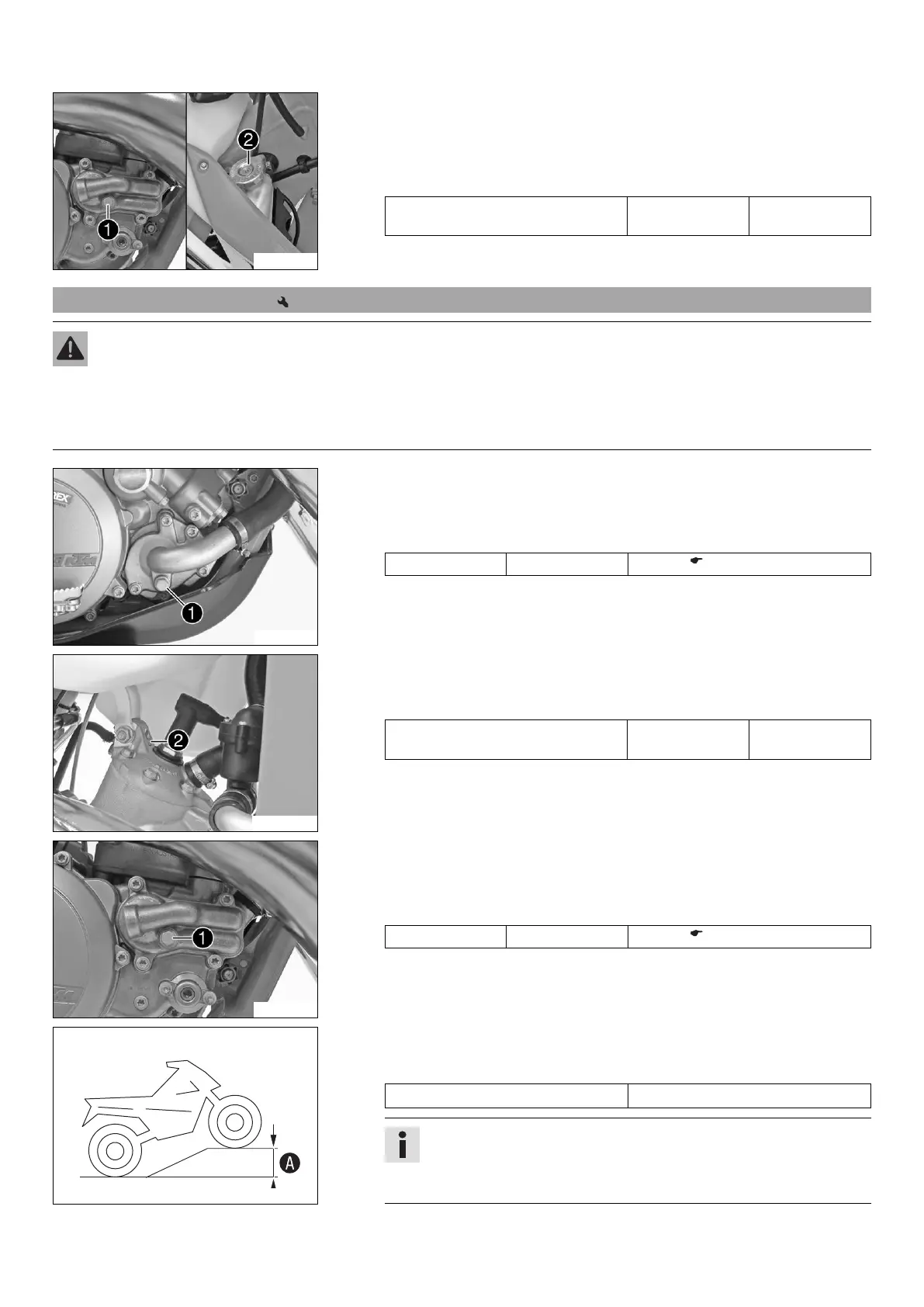

16 COOLING SYSTEM 104
B02168-11
(All 250/300 models)
–
Remove screw
. Take off radiator cap
.
– Completely drain the coolant.
–
Mount and tighten screw
with a new seal ring.
Guideline
Drain plug, water pump cover M10x1 15 Nm
(11.1 lbf ft)
16.5 Refilling with coolant
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swal-
lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of
children.
102295-10
(All 125/200 models)
–
Make sure that screw
is tightened.
– Position the motorcycle upright.
– Fill the radiator completely with coolant.
Coolant 1.2 l (1.3 qt.) Coolant ( p. 141)
M00596-10
–
Loosen screw
until coolant escapes without bubbles.
–
Mount and tighten screw
.
Guideline
Bleeder screw, cylinder head M6 10 Nm
(7.4 lbf ft)
B02171-10
(All 250/300 models)
–
Make sure that screw
is tightened.
– Position the motorcycle upright.
– Fill the radiator completely with coolant.
Coolant 1.2 l (1.3 qt.) Coolant ( p. 141)
400677-10
– Position the vehicle as shown and secure it against rolling away. A height differ-
ence of
must be reached.
Guideline
Height difference
75 cm (29.5 in)
Info
To ensure that all of the air can escape from the cooling system, the
front of the vehicle must be jacked up. A poorly bled cooling system is
less effective at cooling and may result in overheating of the engine.
