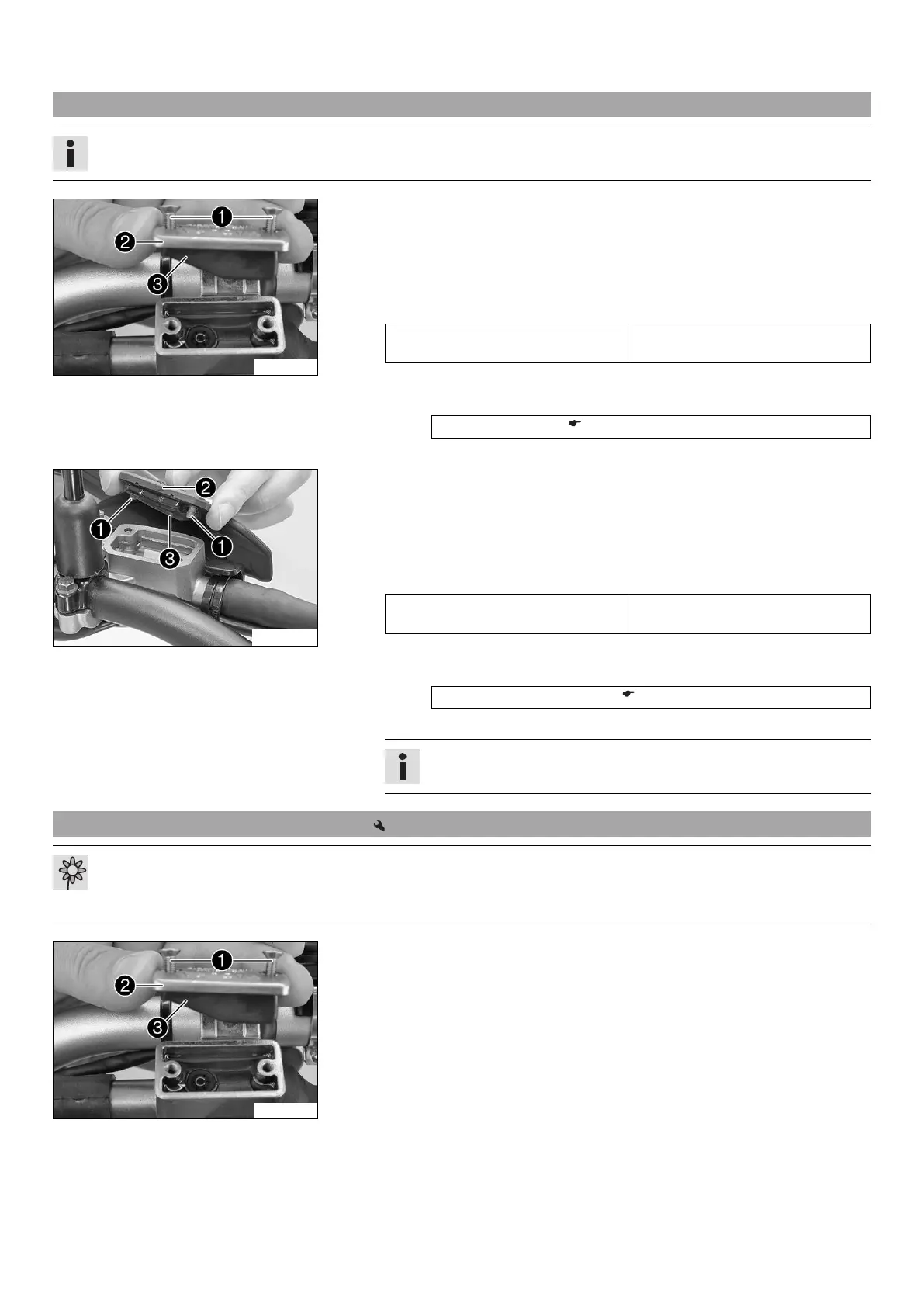

12 SERVICE WORK ON THE CHASSIS 78
12.44 Checking/correcting the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining discs.
400245-10
(All 125/200 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
–
Remove screws
.
–
Remove cover
with membrane
.
– Check the fluid level.
Fluid level under top edge of con-
tainer
4 mm (0.16 in)
» If the level of the fluid does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 142)
– Position the cover with the membrane. Mount and tighten the screws.
M00208-10
(All 250/300 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
–
Remove screws
.
–
Remove cover
with membrane
.
– Check the fluid level.
Fluid level under top edge of con-
tainer
4 mm (0.16 in)
» If the level of the fluid does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Brake fluid DOT 4 / DOT 5.1 ( p. 141)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Wash off overflowed or spilled brake fluid immediately with water.
12.45 Changing the hydraulic clutch fluid
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
400245-10
(All 125/200 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
–
Remove screws
.
–
Remove cover
with membrane
.
