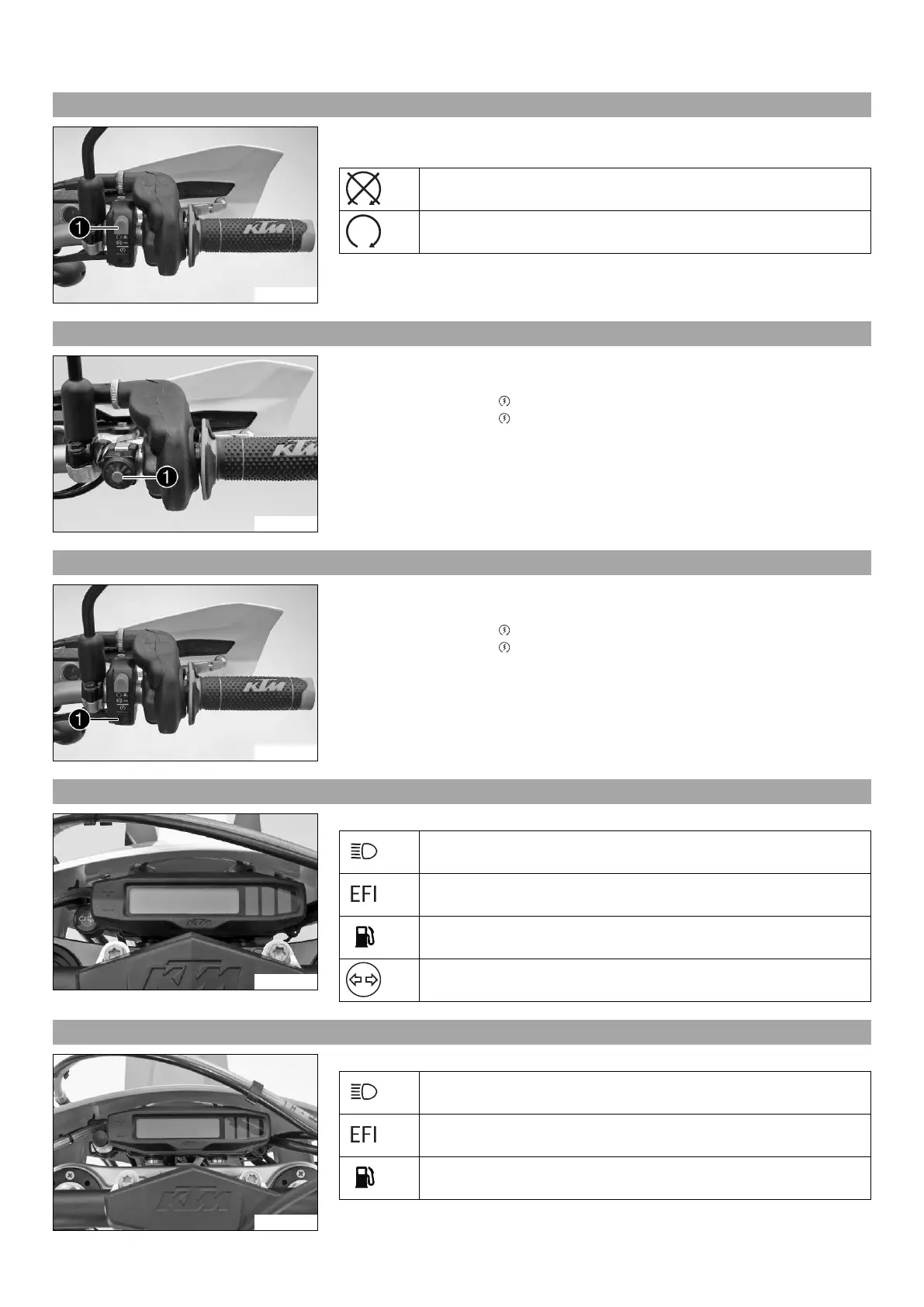

6 CONTROLS 15
6.10 Emergency OFF switch (EXC AU)
602728-10
The emergency OFF switch
is fitted on the right side of the handlebar.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed, and the
engine can be started.
6.11 Electric starter button (All 200/250/300 EU/US models, 300 EXC BR)
602699-10
The electric starter button
is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
6.12 Electric starter button (EXC AU)
602728-11
The electric starter button
is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
6.13 Overview of indicator lamps (All EXC models)
602767-01
Possible states
The high beam indicator lamp lights up blue – The high beam is
switched on.
EFI warning lamp (MIL) – inoperative
Low fuel warning lamp – inoperative
Turn signal indicator light flashes green – The turn signal is switched
on.
6.14 Overview of indicator lamps (All XC-W models)
102252-01
Possible states
The high beam indicator lamp lights up blue – inoperative
EFI warning lamp (MIL) – inoperative
Low fuel warning lamp – inoperative
