23 CARBURETOR TUNING 138

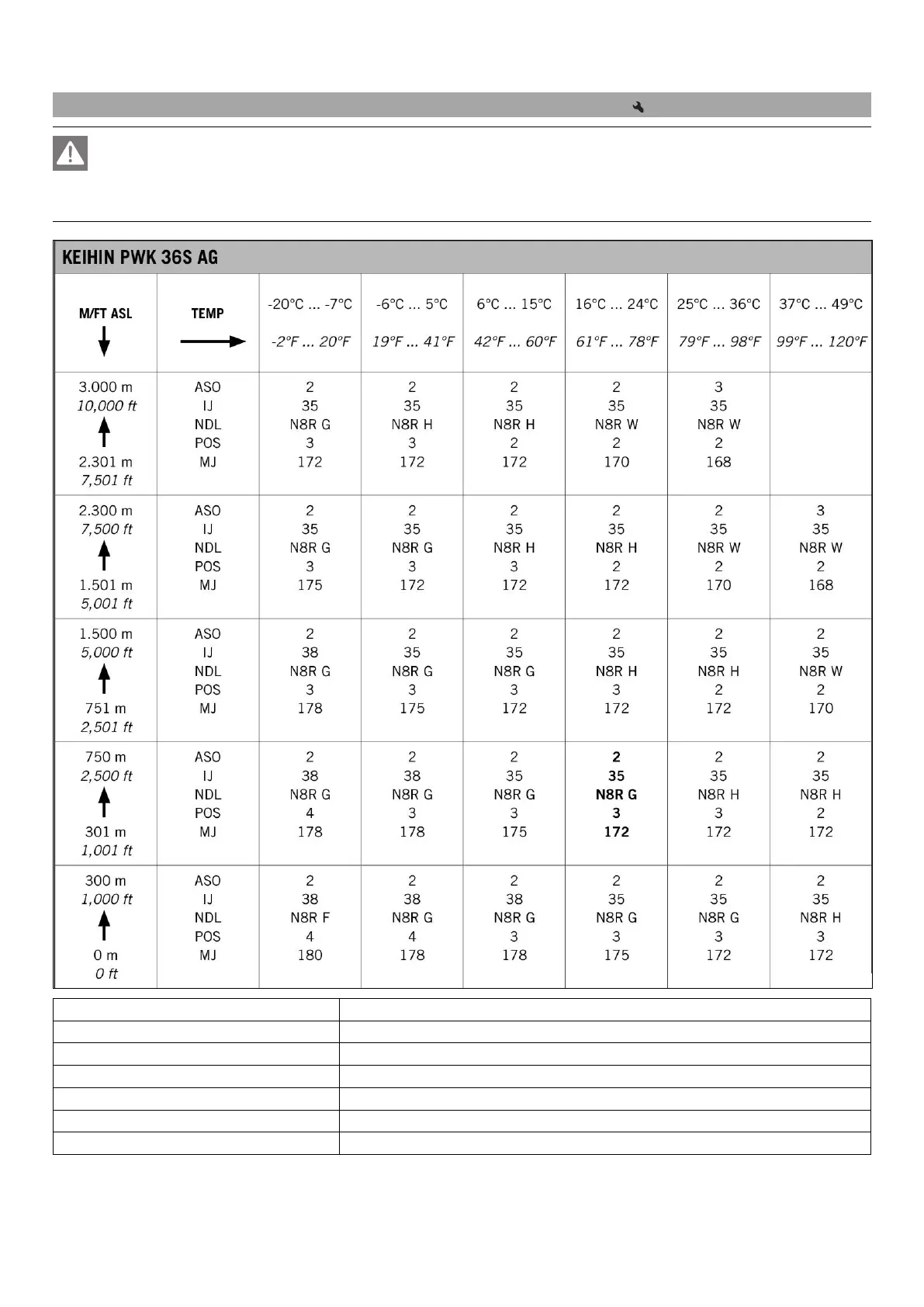

23.5 Carburetor tuning (All 300 EXC EU/AU/Six Days, 300 XC-W US/Six Days)

Danger

Loss of approval for road use and insurance coverage The motorcycle is authorized for public road traffic in the homologous

(reduced) version only.

– In the derestricted version, the motorcycle must be used only on closed off property remote from public road traffic.

402141-01

M/FT ASL Sea level

TEMP Temperature

ASO Idle air adjusting screw open

IJ Idling jet

NDL Needle

POS Needle position from above

MJ Main jet

Does not apply to sand surfaces!
