23 CARBURETOR TUNING 134

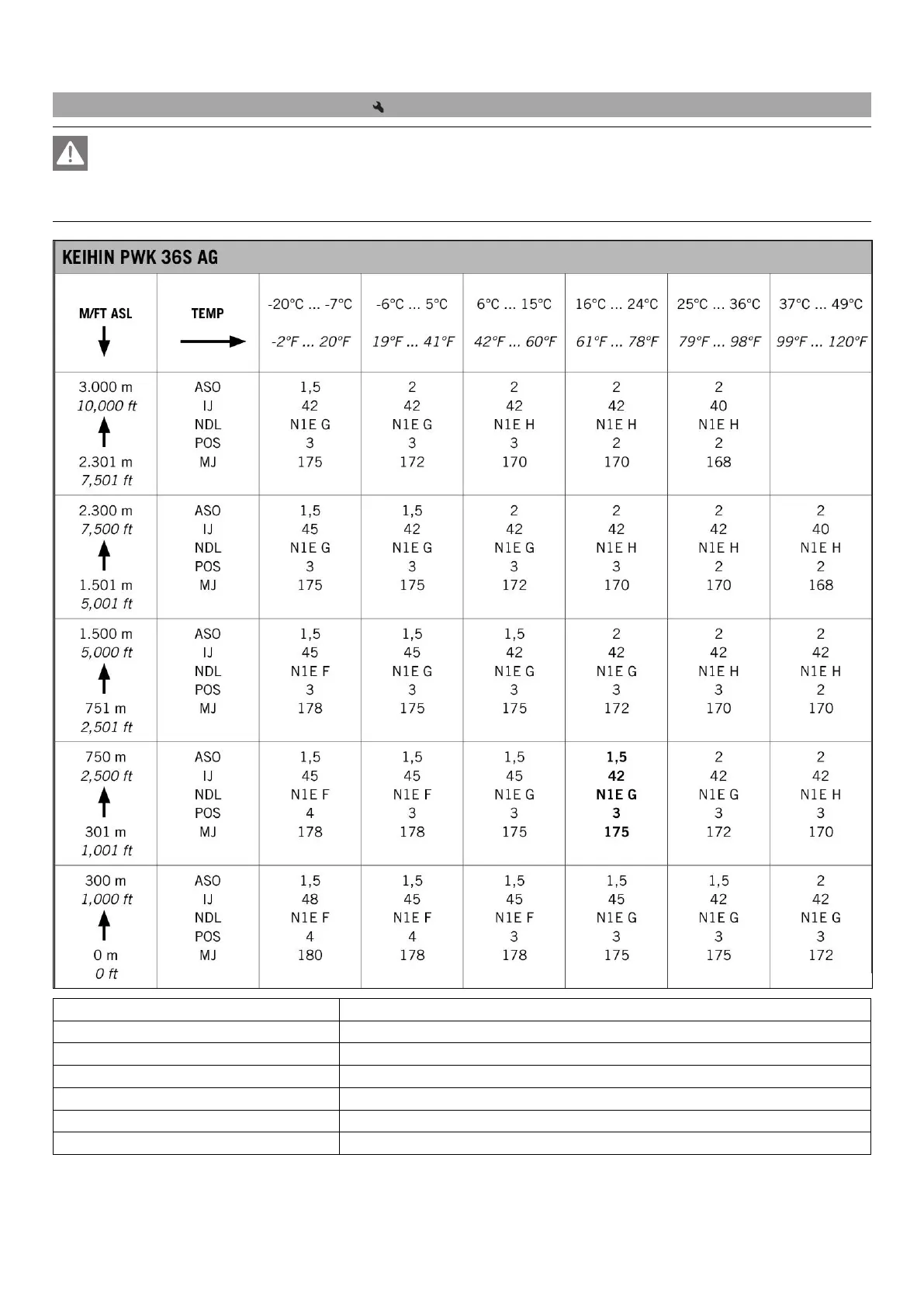

23.1 Carburetor tuning (All 125 models)

Danger

Loss of approval for road use and insurance coverage The motorcycle is authorized for public road traffic in the homologous

(reduced) version only.

– In the derestricted version, the motorcycle must be used only on closed off property remote from public road traffic.

402138-01

M/FT ASL Sea level

TEMP Temperature

ASO Idle air adjusting screw open

IJ Idling jet

NDL Needle

POS Needle position from above

MJ Main jet

Does not apply to sand surfaces!
