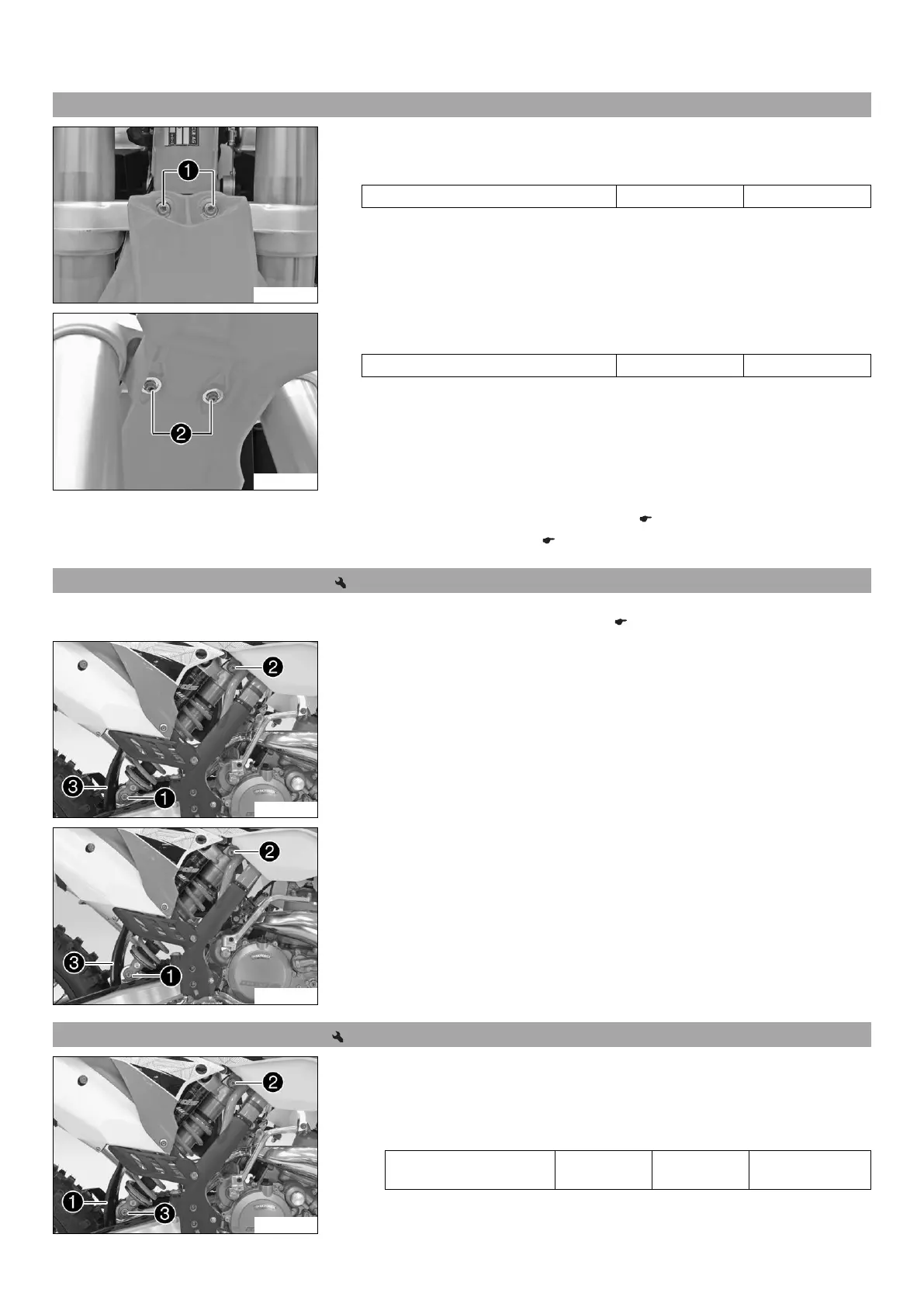

12 SERVICE WORK ON THE CHASSIS 65
12.17 Installing the front fender
B02156-10
Main work
–
Position the front fender. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B02155-11
–
Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Refit the headlight mask with the headlight. ( p. 98)
– Check the headlight setting. ( p. 100)
12.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 52)
102281-11
Main work
(All 125/200 models)
–
Remove screw
and lower the rear wheel with the swing arm as far as possi-
ble without blocking the rear wheel. Fix the rear wheel in this position.
–
Remove screw
, push splash protector
to the side, and remove the shock
absorber.
102282-11
(All 250/300 models)
–
Remove screw
and lower the rear wheel with the swing arm as far as possi-
ble without blocking the rear wheel. Fix the rear wheel in this position.
–
Remove screw
, push splash protector
to the side, and remove the shock
absorber.
12.19 Installing the shock absorber
102281-10
Main work
(All 125/200 models)
–
Push splash protector
to the side and position the shock absorber. Mount
and tighten screw
.
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
.
