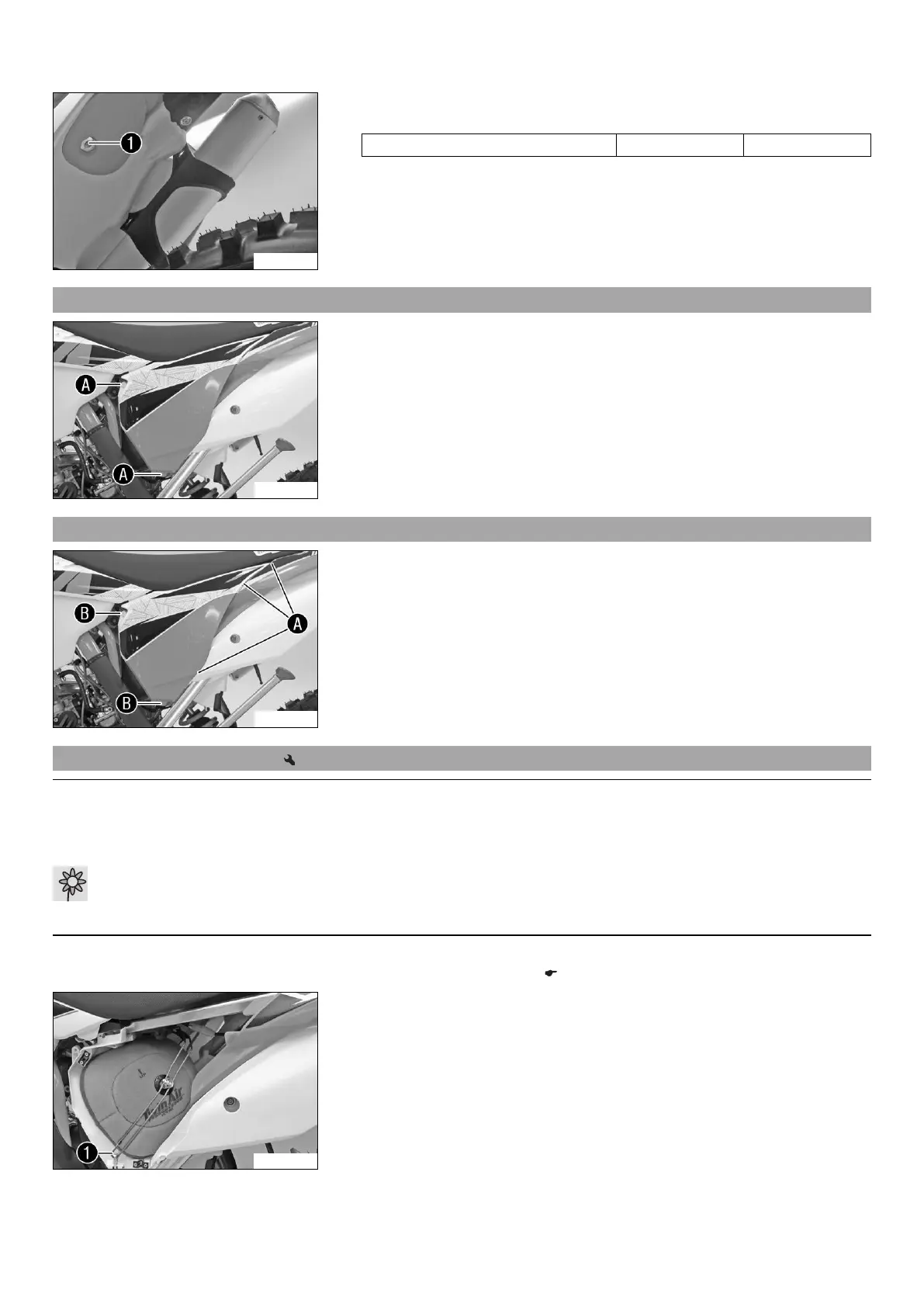

KTM 200 EXC - Removing the Air Filter Box Lid; Installing the Air Filter Box Lid; Removing the Air Filter

12 SERVICE WORK ON THE CHASSIS 67
B00817-10
–
Mount and tighten screw

of the seat fixation.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
12.22 Removing the air filter box lid
102283-10
–
Pull off the air filter box lid in area

sideways and remove it toward the front.
12.23 Installing the air filter box lid
102283-11
–
Insert the air filter box lid into the rear area

and clip it into the front area

.
12.24 Removing the air filter
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never operate the vehicle without an air filter as dust and dirt will enter the engine and lead to increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 67)
B02160-10
Main work
–
Detach air filter holder

at the bottom and swing it to one side. Remove the air
filter with the air filter support.
– Remove the air filter from the air filter support.
