MAINTENANCE WORK ON CHASSIS AND ENGINE 53

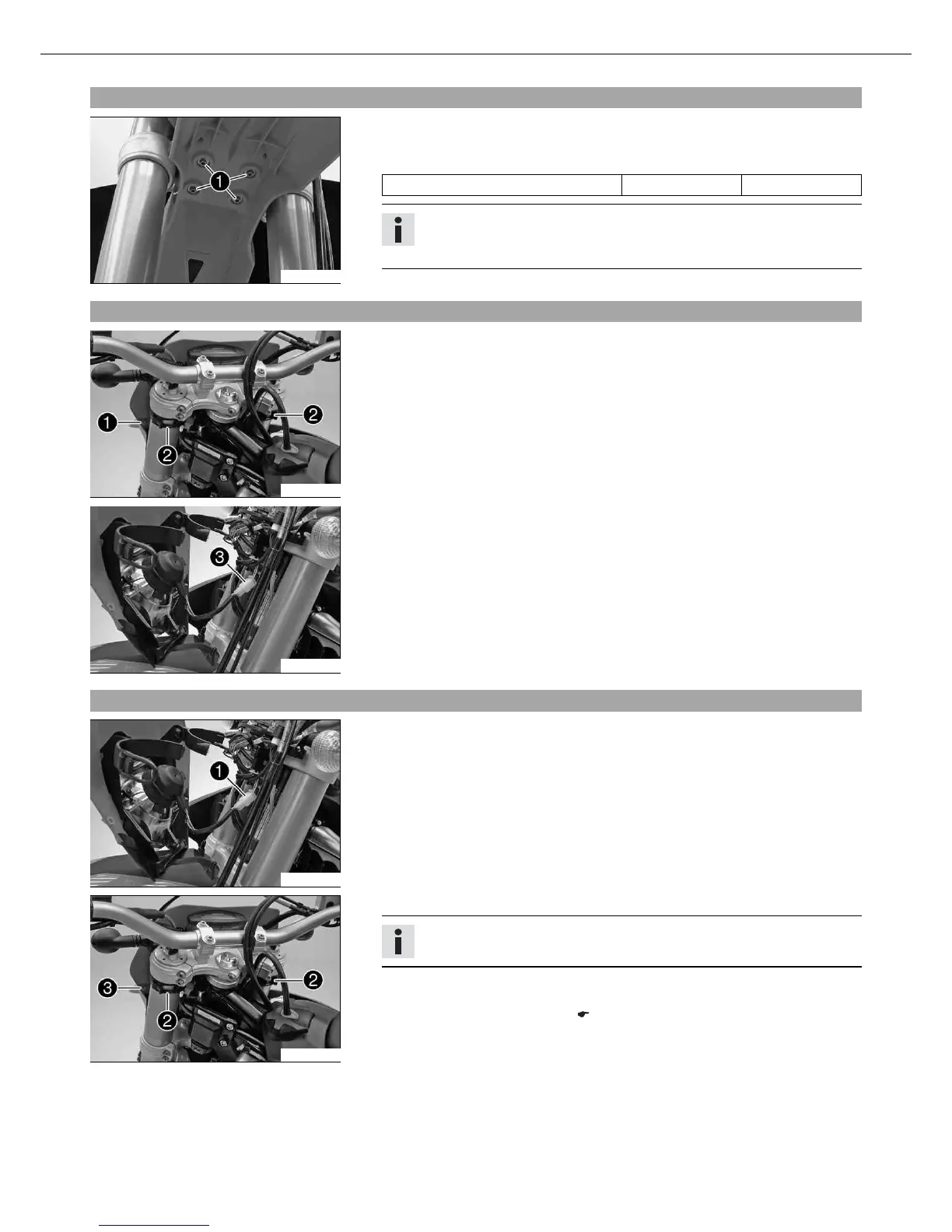

13.31Installing the front fender
600692-10
– Ensure that the spacers are mounted in the fender.
– Position the front fender. Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure the holding lugs engage in the start number plate or headlight
mask.
13.32Removing headlight mask with headlight (EXC‑F, EXC‑F SIX DAYS, XCF-W)
600703-10
– Switch off all electrical equipment.
– Remove screw and take off clamp.
– Loosen the rubber band . Push up the headlight mask and swing it forwards.
600702-10
– Pull out the electric plug connector and remove the headlight mask with the
headlight.
13.33Refitting the headlight mask with the headlight (EXC‑F, EXC‑F SIX DAYS, XCF-W)
600702-11
– Connect the electric plug connector .
600703-11
– Position the headlight mask and fix it with the rubber band .
Info
Ensure that the retaining lugs engage in the fender.
– Position the brake line and wiring harness. Put the clamp on, mount and tighten
screw .
– Check the headlight adjustment. ( p. 76)
