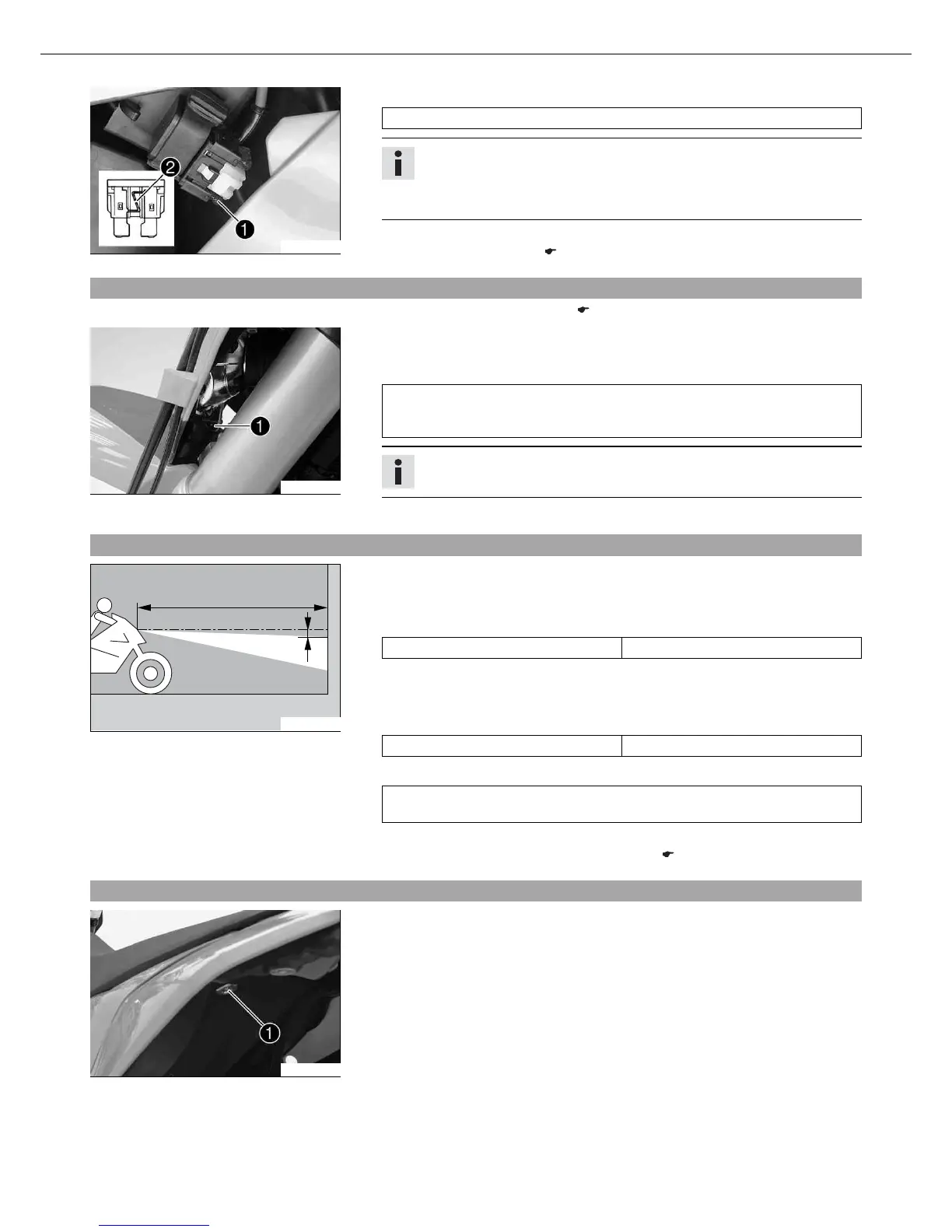

MAINTENANCE WORK ON CHASSIS AND ENGINE 76
400273-10
– Refit the fuse.
Fuse (58011109110)
Info
A reserve fuse is located in the starter relay.
Replace a burned-out fuse only by an equivalent fuse.
If the new fuse burns out, contact an authorized KTM workshop.
– Replace the protection cover.
– Install the air filter box lid. ( p. 81)
13.78Adjusting the beam width of the headlight (EXC‑F, EXC‑F SIX DAYS, XCF-W)
– Check the headlight adjustment. ( p. 76)
301251-10
– Loosen screw .
– Adjust the light range by swiveling the headlight.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with a rider (mark is applied under: Checking the headlight adjust-
ment).
Info
If you have a payload, you may have to correct the headlight beam width.
– Tighten screw .
13.79Checking the headlight adjustment (EXC‑F, EXC‑F SIX DAYS, XCF-W)
400726-10
– On a light-colored wall behind a horizontal area, make a mark as high as the center
of the headlight.
– Make a second mark at distance of under the first mark.
Guideline
Distance 5 cm (2 in)
– Stand the motorcycle upright in front of the wall at distance . The driver, in full
protective clothing, should now sit on the motorcycle in a normal sitting position
(feet on the footrests).
Guideline
Distance 5 m (16 ft)
– Switch on low beam. Check the headlight adjustment.
The border between light and dark must be exactly at the lower mark when the
motorcycle is operational and complete with rider.
» If the boundary between light and dark does not meet specifications:
– Adjust the beam width of the headlight. ( p. 76)
13.80Removing the seat
500080-10
– Remove screw . Lift up the seat at the rear, pull it back and then remove from
above.
