MAINTENANCE WORK ON CHASSIS AND ENGINE 54

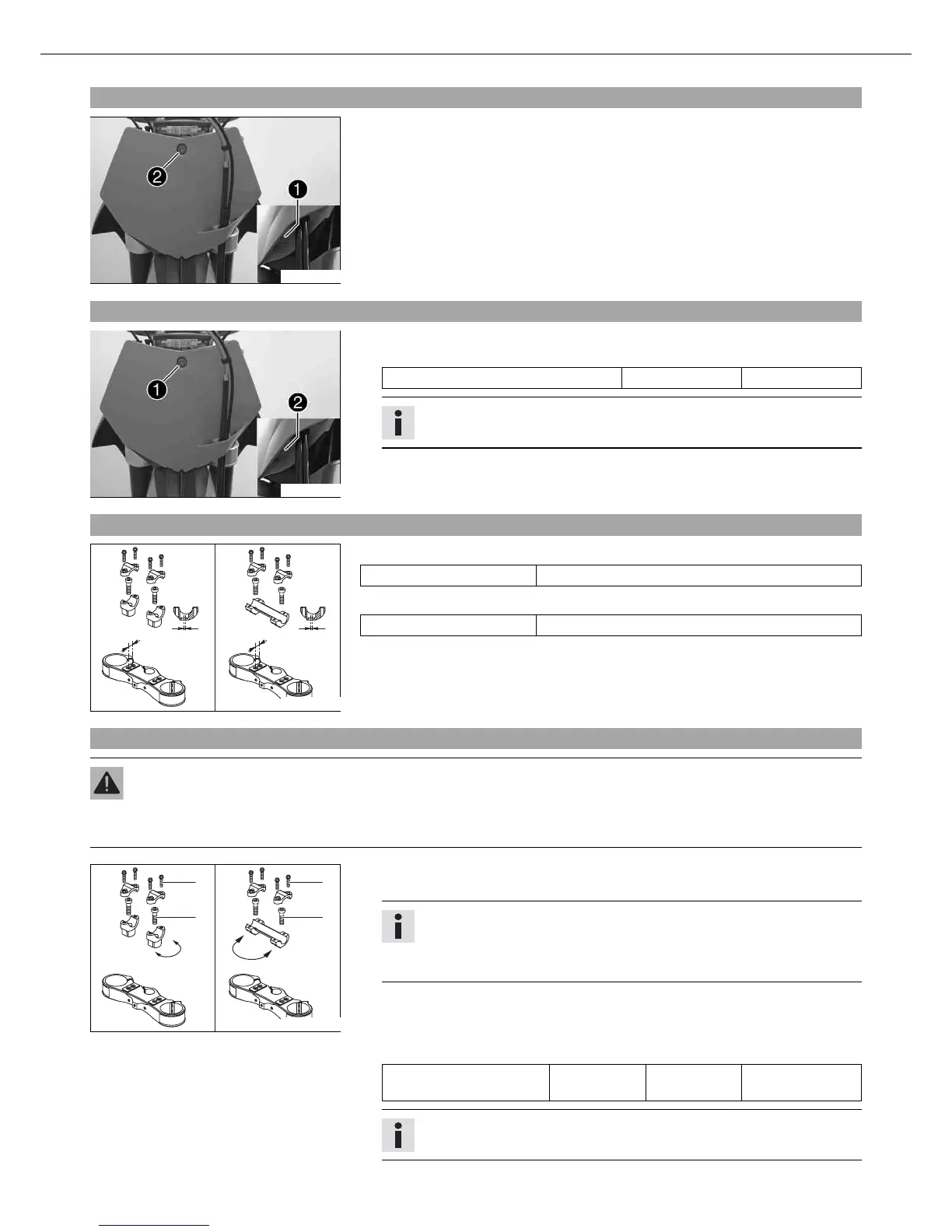

13.34Removing the start number plate (SX‑F)
500101-10
– Remove screw and take off clamp.
– Remove screw with the spacer. Remove the start number plate.
13.35Installing the start number plate (SX‑F)
500101-11
– Position the start number plate. Mount and tighten screw with the spacer.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Take care with the contact of the holding lug at the fender.
– Position the brake line and wiring harness. Put the clamp on, mount and tighten
screw .
13.36Handlebar position
400223-11
On the upper triple clamp, there are 2 holes at a distance of to each other.
Distance between holes 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance of from the center.
Distance between holes 3.5 mm (0.138 in)
The handlebar supports can be mounted in 4 different positions.
13.37Adjusting handlebar position x
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handle-
bar.
400223-10
– Remove the four screws . Remove the handlebar clamps. Remove the handlebar
and lay it to one side.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
– Remove the two screws . Remove the handlebar support.
– Place the handlebar support in the required position. Fit and tighten the two screws
.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
