MAINTENANCE WORK ON CHASSIS AND ENGINE 60

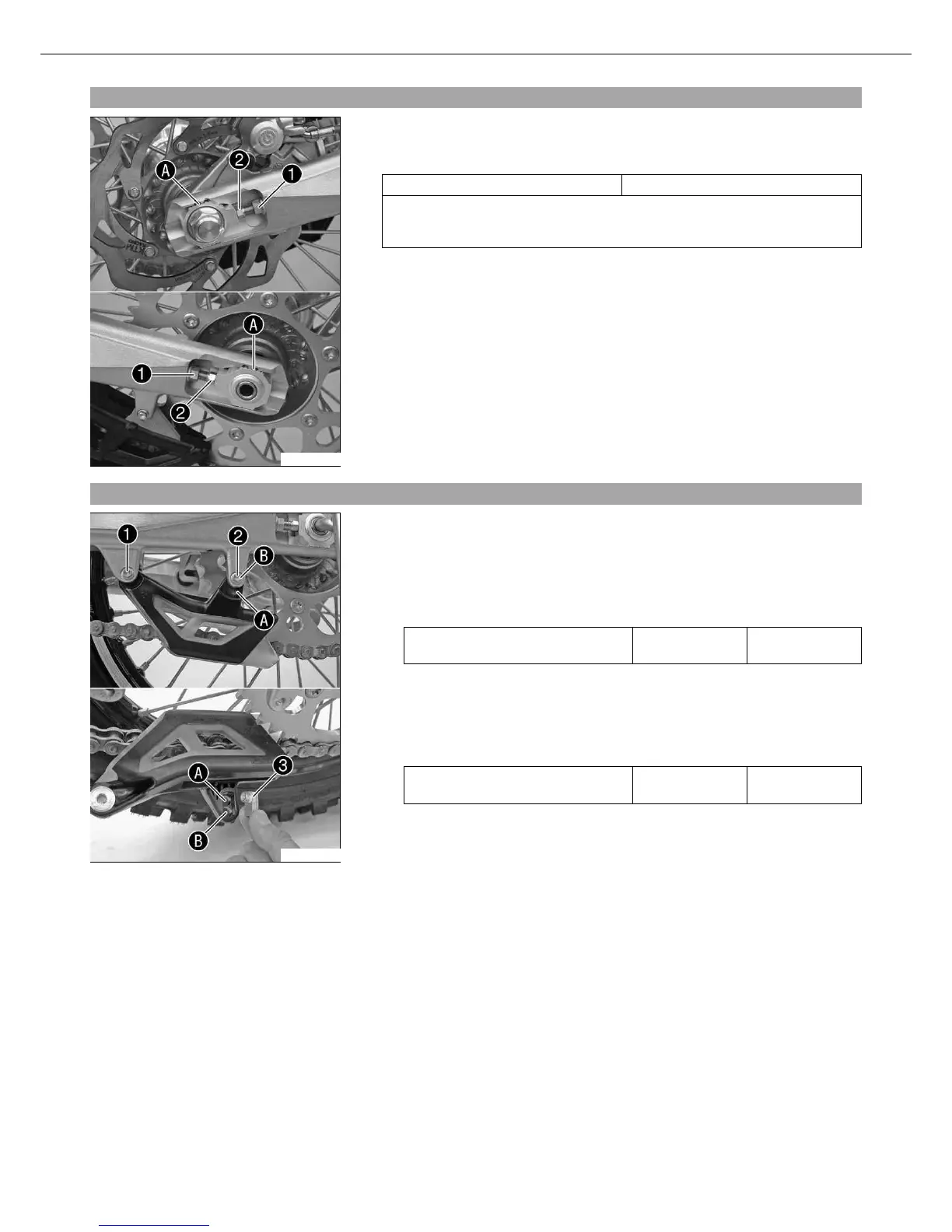

13.49Adjusting chain tension - fitting rear wheel
400225-11
– Loosen nuts .
– Adjust the chain tension by turning the adjusting screws  left and right.
Guideline
Chain tension 8… 10 mm (0.31… 0.39 in)
Turn the adjusting screws  left and right so that the markings on the left and
right chain adjusters are in the same position relative to the reference marks .
The rear wheel is then correctly aligned.
– Tighten nuts .
13.50Adjusting the chain guide x (EXC‑F, EXC‑F SIX DAYS, XCF-W)
400252-10
– Remove screws  and . Take off the chain guide.
Condition
Number of teeth: ≤ 44 teeth
– Insert nut  in hole . Position the chain guide.
– Mount and tighten screws  and .
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Condition
Number of teeth: ≥ 45 teeth
– Insert nut  in hole . Position the chain guide.
– Mount and tighten screws  and .
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
