MAINTENANCE WORK ON CHASSIS AND ENGINE 77

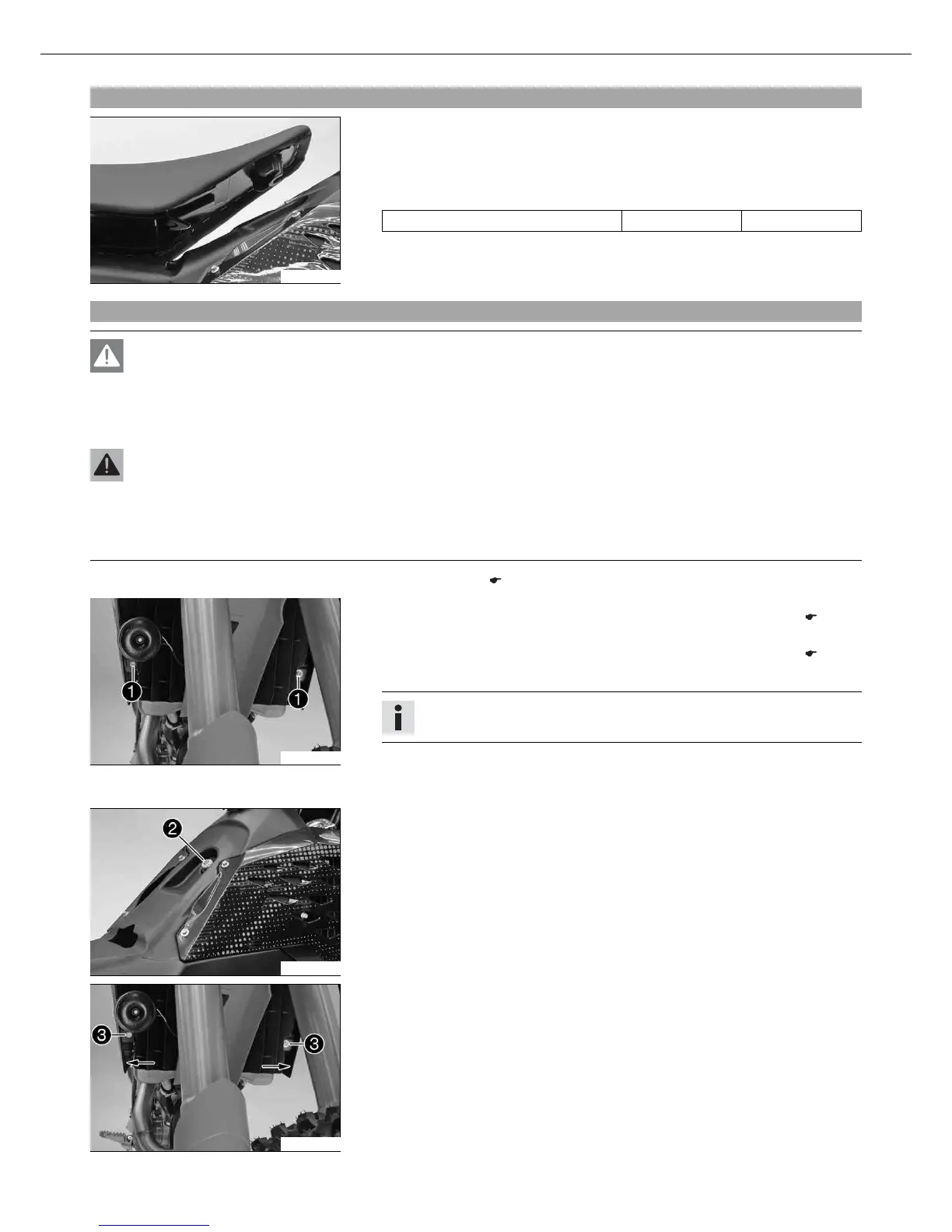

13.81Mounting the seat
600674-01
– Hook in the front of the seat at the collar sleeve of the fuel tank, lower it at the rear
and simultaneously push it forward.
– Make sure that the seat is correctly locked in.
– Mount and tighten the screw of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
13.82Dismounting the fuel tank x
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
– Remove the seat. ( p. 76)
600678-10
(EXC‑F, EXC‑F SIX DAYS, XCF-W)
– Turn handle of the fuel tap to the OFF position. (Figure 500137-10 p. 22)
(SX‑F)
– Turn handle of the fuel tap to the OFF position. (Figure 500178-10 p. 22)
– Pull off the fuel hose.
Info
Remaining fuel may flow out of the fuel hose.
– Remove screws with the collar sleeve.
(EXC-F, EXC‑F SIX DAYS)
– Hang the horn and horn bracket to one side.
600675-11
– Remove screw with the collar sleeve.
– Remove the tube from the fuel tank vent line.
600677-10
– Pull both spoilers to the side of the radiator bracket and take the fuel tank away
upward.
