12 SERVICE WORK ON THE CHASSIS
98

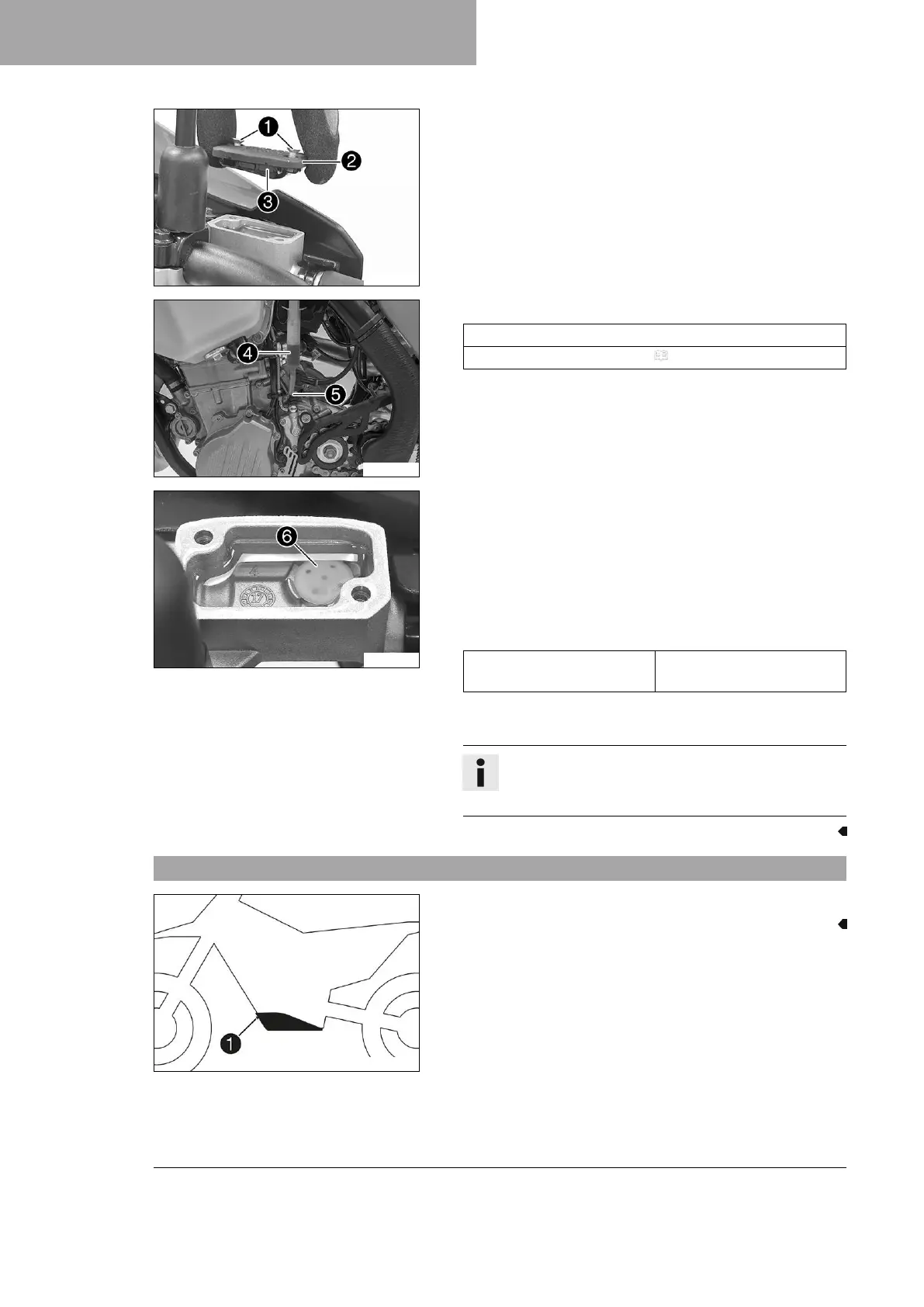

V00456-10
– Move the hydraulic clutch fluid reservoir mounted on the han-
dlebar into a horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
K01342-10
–
Fill bleeding syringe
4
with the appropriate hydraulic fluid.
Syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 164)
– On the clutch slave cylinder, remove the protection cap,
remove bleeder screw
5
and mount bleeding syringe
4
.
E01224-10
– Now inject fluid into the system until it escapes from the
opening
6
of the master cylinder without bubbles.
– Occasionally extract the fluid from the master cylinder reser-
voir to prevent overflowing.
– Remove the bleeding syringe. Mount and tighten the bleeder
screw. Mount the protection cap.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container
rim
4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Immediately clean up any brake fluid that has over-
flowed or spilled with water.
12.47 Removing the engine guard (All EXC-F Six Days, XCF‑W)
H01638-10
–
Remove screws
1
and engine guard.
