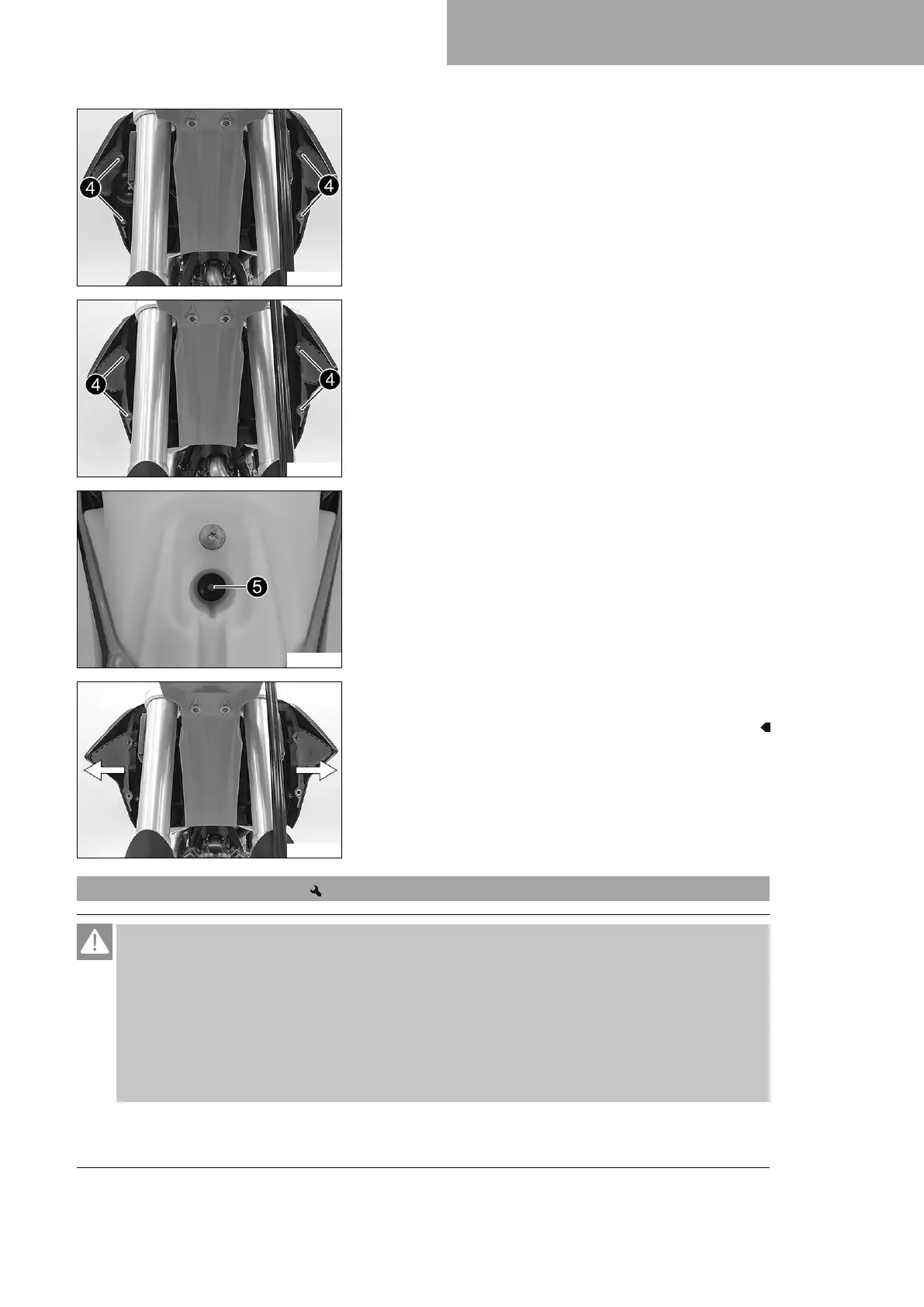

SERVICE WORK ON THE CHASSIS 12

V01764-10

(All EU models)

–

Remove screws

– Hang the horn and horn bracket to one side.

V01765-10

(XCF‑W)

–

Remove screws

V01766-10

–

Remove screw

with the rubber bushing.

– Remove the hose from the fuel tank breather.

V01767-10

– Pull both spoilers laterally off the radiator and lift off the fuel

tank.

12.34 Installing the fuel tank

Danger

Fire hazard Fuel is highly flammable.

The fuel in the fuel tank expands when warm and can escape if overfilled.

– Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.

– Switch off the engine for refueling.

– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.

– If any fuel is spilled, wipe it off immediately.

– Observe the specifications for refueling.
