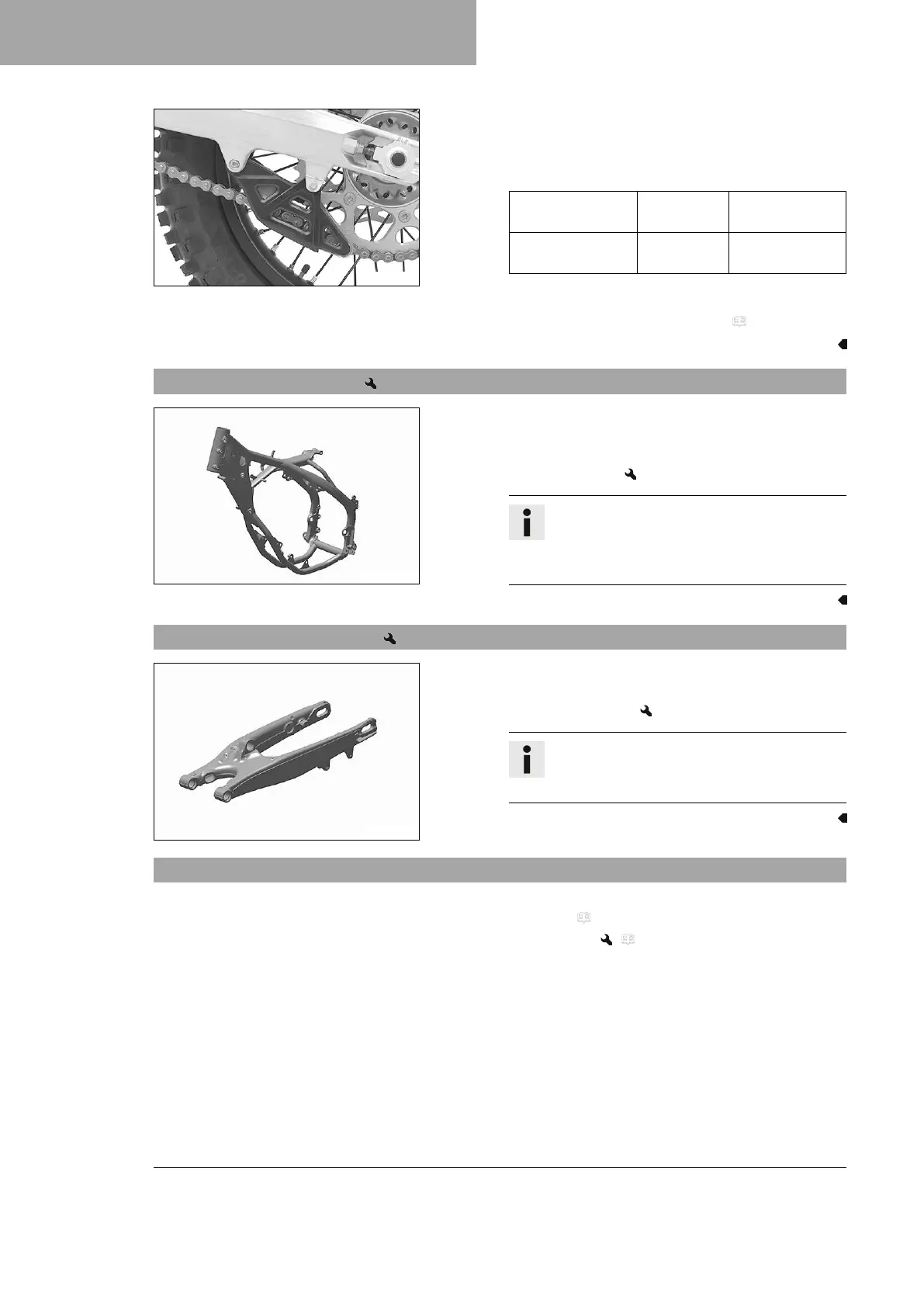

12 SERVICE WORK ON THE CHASSIS
94
E00333-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Remaining nuts,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 64)
12.40 Checking the frame
S01316-10
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
12.41 Checking the link fork
S01317-10
– Check the link fork for damage, cracking, and deformation.
» If the link fork exhibits damage, cracking, or deformation:
– Change the link fork.
Info
Always replace a damaged link fork. Repairing
the link fork is not authorized by KTM.
12.42 Checking throttle cable routing
Preparatory work
– Remove the seat. ( p. 78)
– Remove the fuel tank. ( p. 86)
