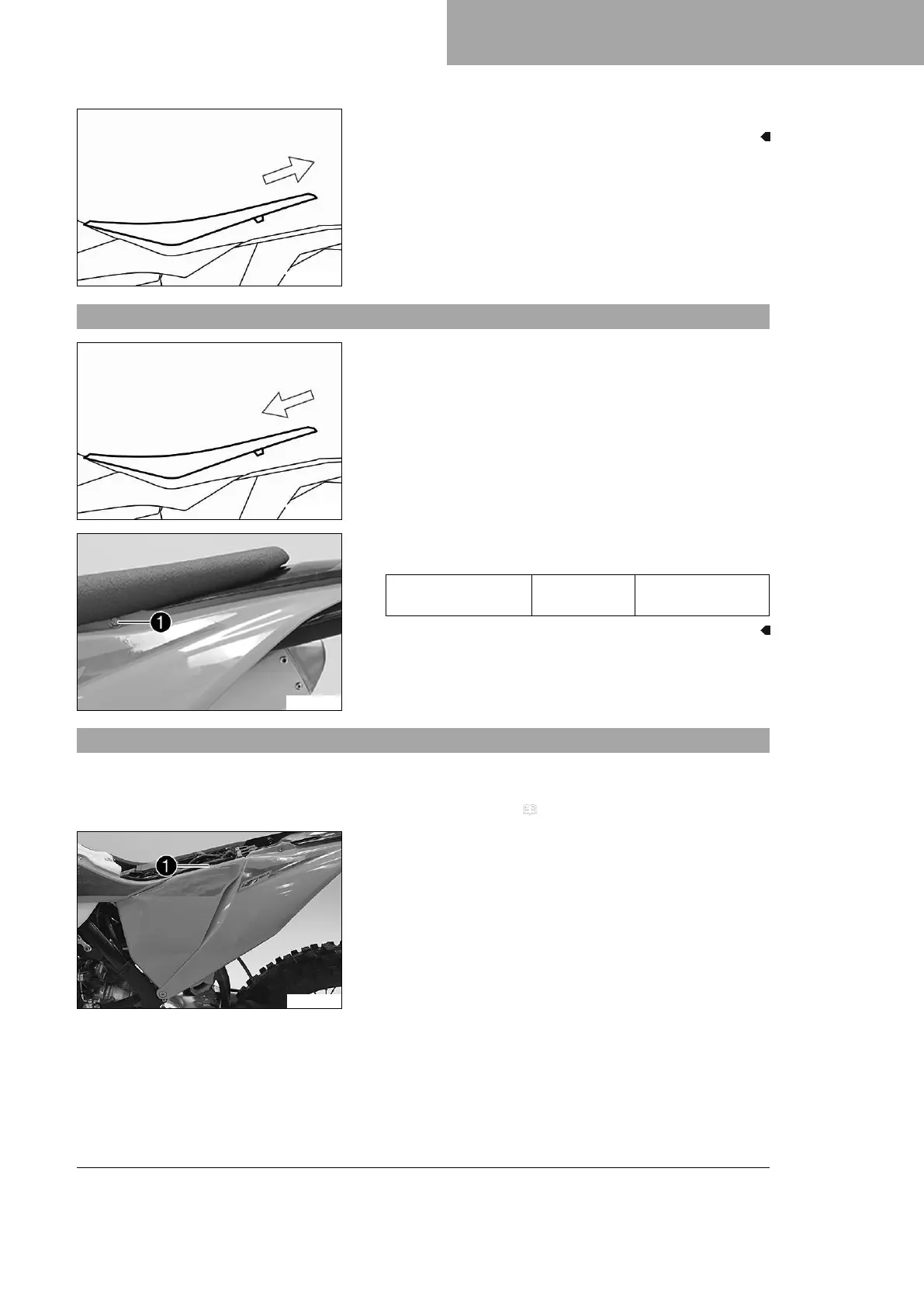

SERVICE WORK ON THE CHASSIS 12

H02218-10

– Raise the rear of the seat, pull the seat back, and lift it off.

12.22 Mounting the seat

H02218-11

– Mount the front of the seat on the collar bushings of the fuel

tank, lower the seat at the rear, and push the seat forward.

– Make sure the seat is locked in correctly.

S03480-10

–

Mount and tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

12.23 Removing the air filter box cover

Condition

The air filter box cover is secured.

– Remove the seat. ( p. 78)

V01759-10

–

Remove screw
