WHEELS, TIRES 14

115

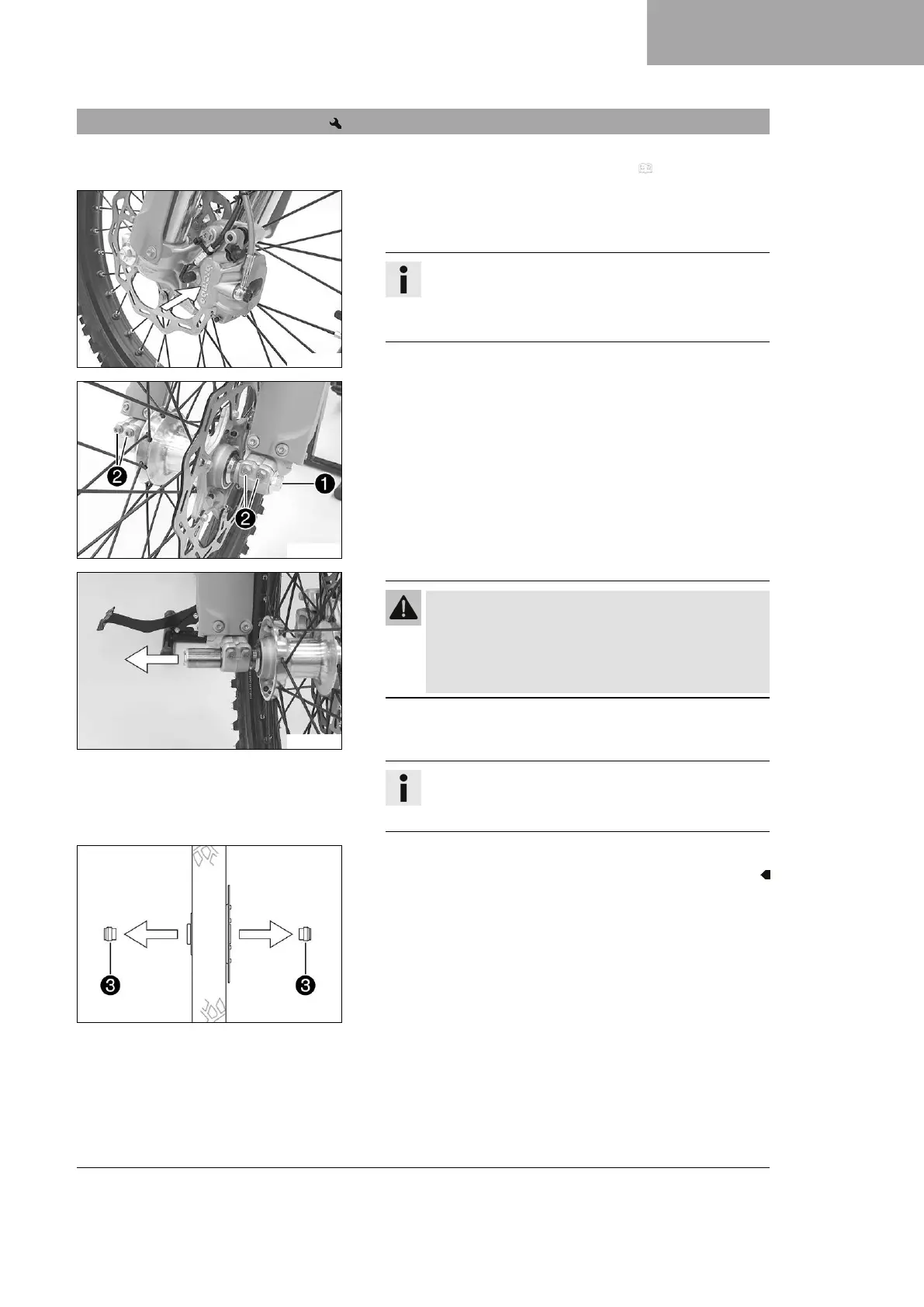

14.1 Removing the front wheel

Preparatory work

– Raise the motorcycle with the lift stand. ( p. 64)

V00363-10

Main work

– Manually press the brake caliper toward the brake disc to push

back the brake pistons.

Info

Make sure that you do not press the brake caliper

against the spokes when pushing back the brake

pistons.

V00364-10

–

Loosen screw

by several rotations.

–

Loosen screws

–

Press on screw

to push the wheel spindle out of the axle

clamp.

–

Remove screw

V00365-10

Warning

Danger of accidents Damaged brake discs reduce the

braking effect.

– Always lay the wheel down in such a way that the

brake disc is not damaged.

– Hold front wheel and remove wheel spindle. Take front wheel

out of the fork.

Info

Do not actuate the hand brake lever when the front

wheel is removed.

H00934-10

–

Remove spacers
