TUNING THE CHASSIS 11
61
11.15 Handlebar position
M00993-10
(EXC‑F EU, XCF‑W)

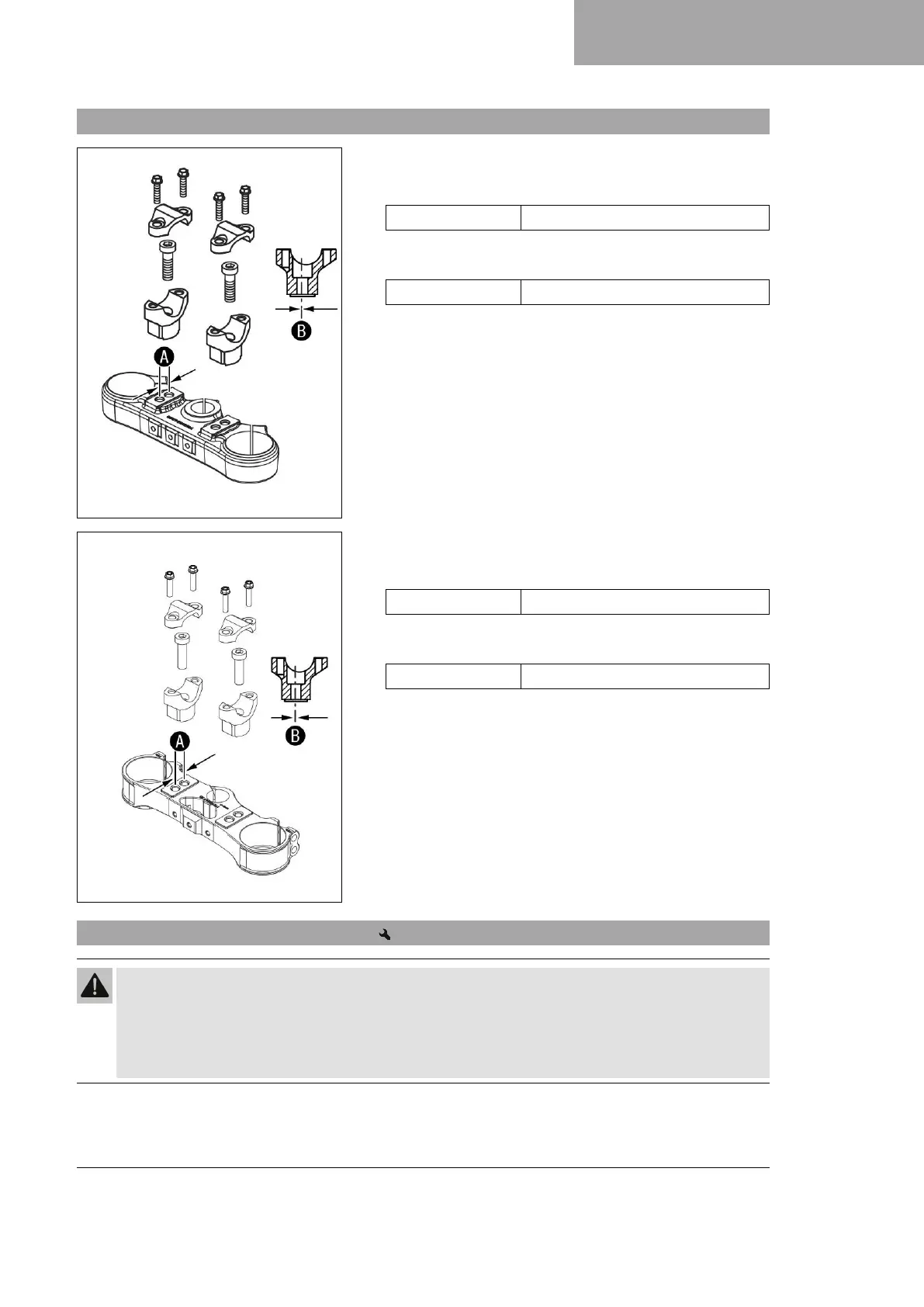

On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar holders can be mounted in four different posi-
tions.
M00987-10
(All EXC-F Six Days)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar holders can be mounted in four different posi-
tions.
11.16 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
