ELECTRICAL SYSTEM 15
127
(XCF‑W)
Fuse 1 ‑ 10 A - EFI control unit, combination instru-
ment, combination switch (optional), electronic fuel
injection, diagnostics connector, evaporate emission
control system, fuse 4
Fuse 2 - 10 A - low beam, position light, tail light
Fuse 3 - 10 A - radiator fan
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert spare fuse with the correct rating.
Fuse (75011088010) ( p. 159)
Fuse (75011088005) ( p. 159)
Tip
Insert a spare fuse in the fuse box so that it is available
if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 79)

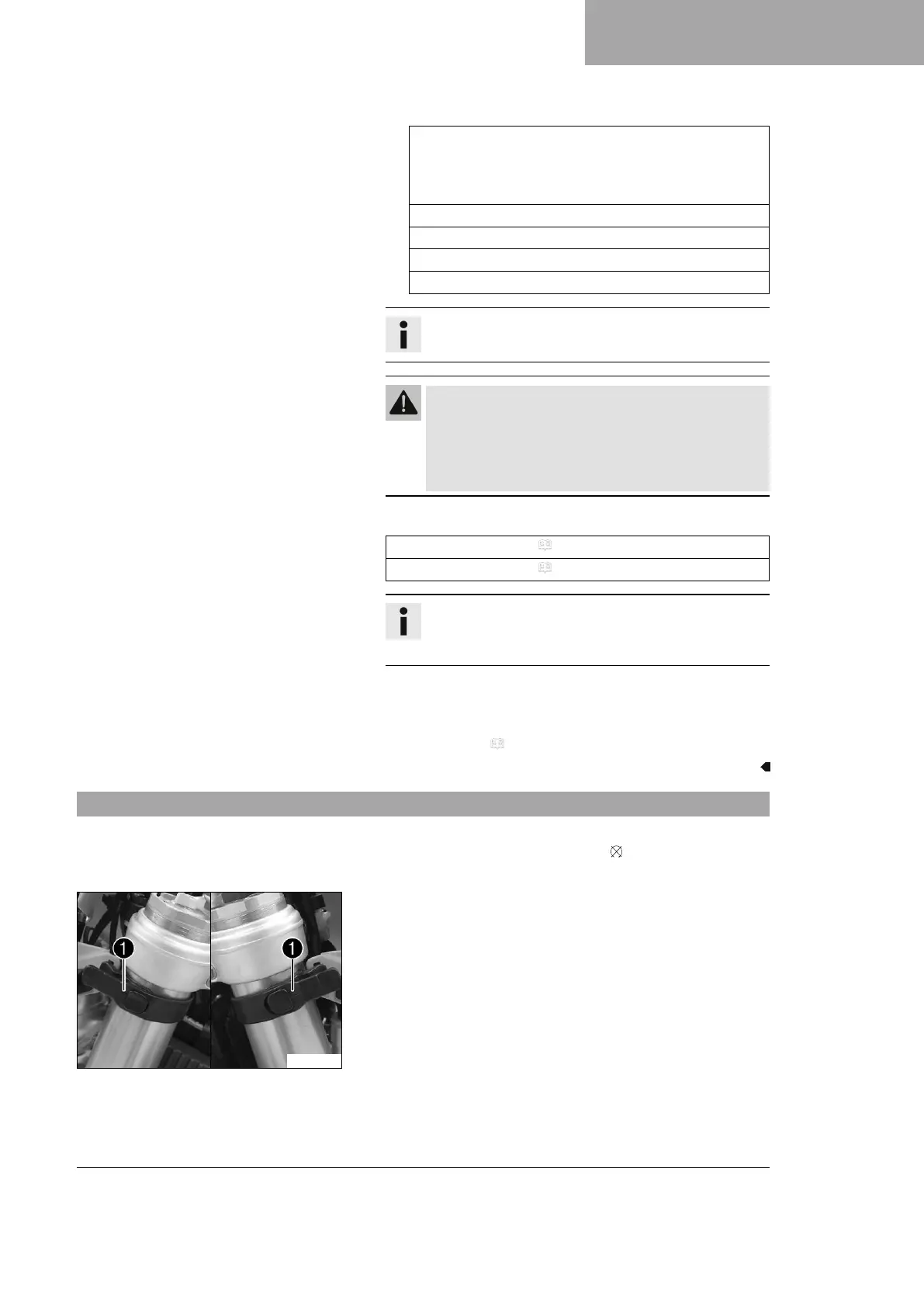

15.6 Removing the headlight mask with the headlight
Preparatory work
– Press and hold the switch-off button while the engine is
idling until the engine stops.
V01782-10
Main work
– Detach the brake line and wiring harness from the headlight
mask.
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.
