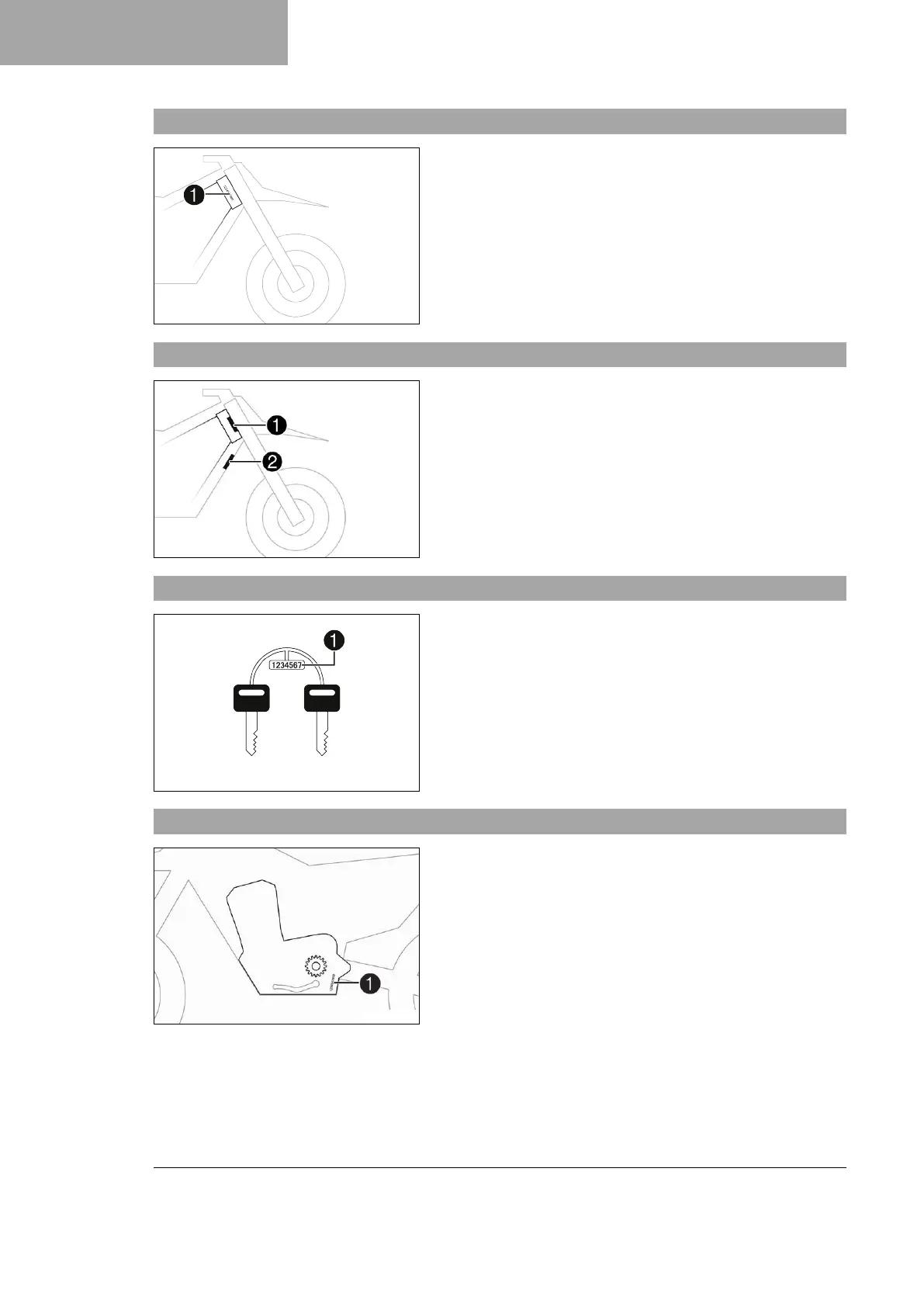

5 SERIAL NUMBERS

5.1 Vehicle identification number

401945-10

The vehicle identification number

is stamped on the right side

of the steering head.

5.2 Type label

V01808-10

(All EU models)

The Europe type label

is fixed to the front of the steering

head.

The Canada type label

is fixed to the front of the chest

tube.

5.3 Key number (All EU models)

402247-10

The key number

for the steering lock is stamped onto the key

connector.

5.4 Engine number

H00940-10

Engine number

is embossed on the left side of the engine

behind the shift lever.
