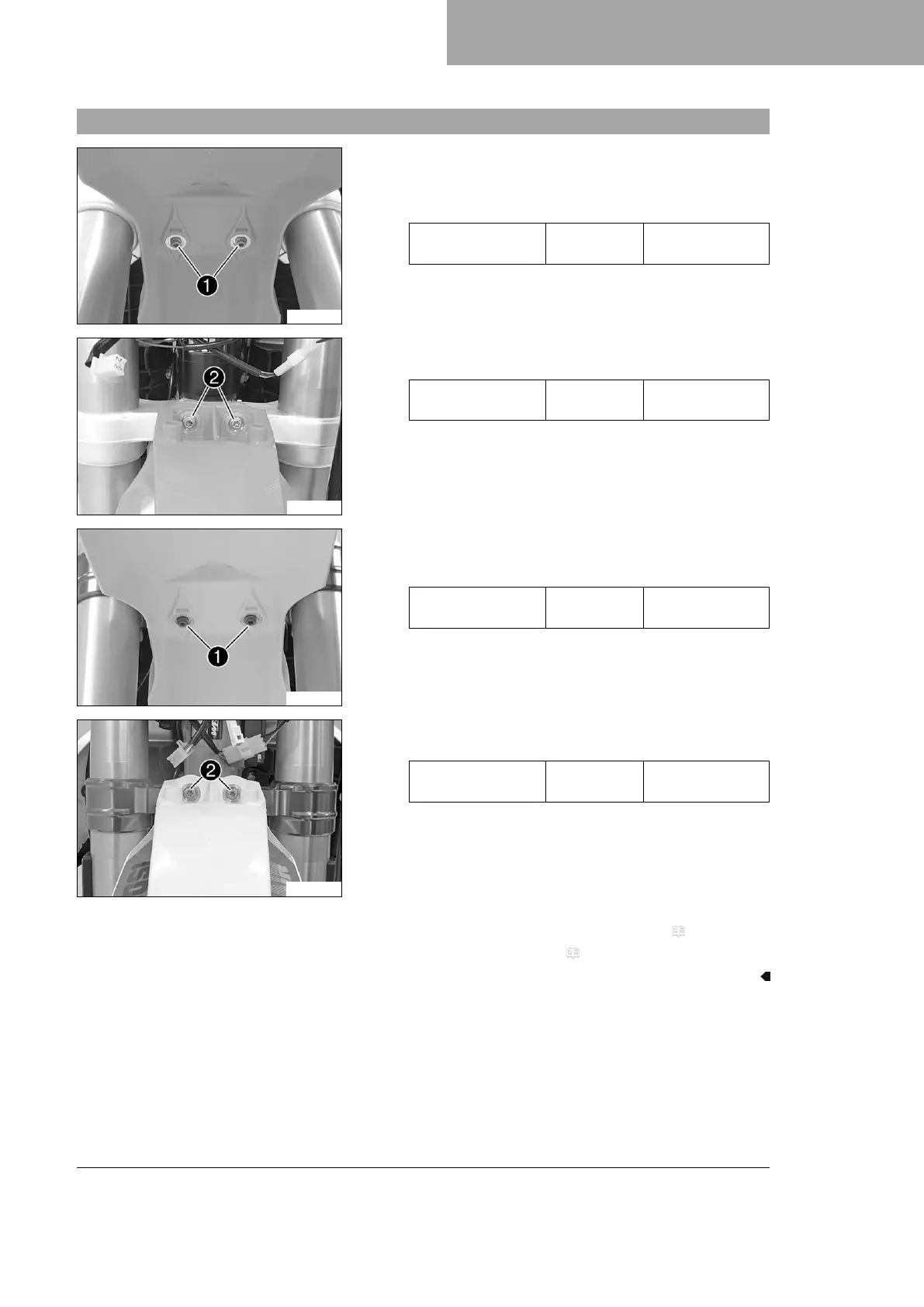

SERVICE WORK ON THE CHASSIS 12

12.18 Installing front fender

V00340-10

Main work

(EXC‑F EU, XCF‑W)

–

Position front fender. Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

V00341-10

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

K00576-10

(All EXC-F Six Days)

–

Position front fender. Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

S01321-10

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

Finishing work

– Install the headlight mask with the headlight. ( p. 128)

– Check the headlight setting. ( p. 129)
