BRAKES 99
101125-10

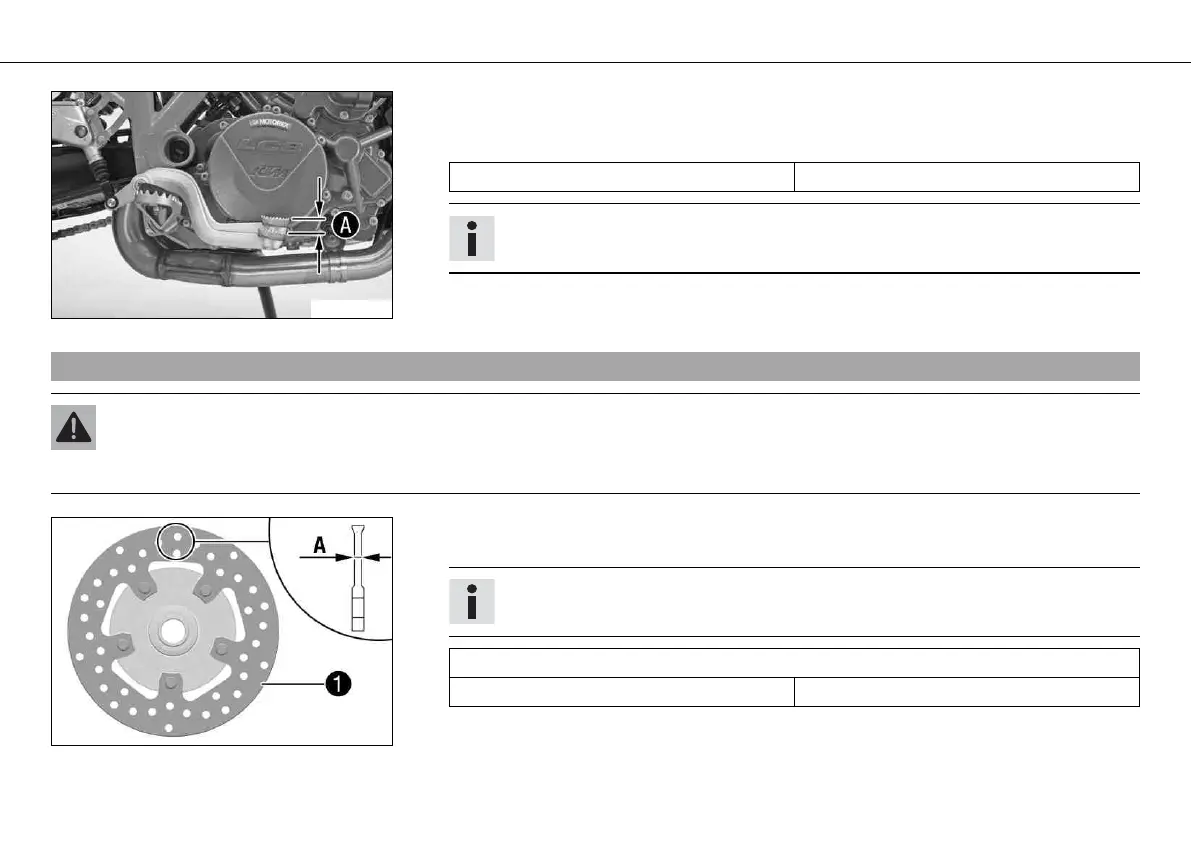

– Move the foot brake lever back and forth between the end stop and the contact to the
piston rod and check free travel .
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
Info
The piston rod should not move.
» If the free travel does not meet specifications:
– Adjust the free travel to the specified value.
11.8Checking the rear brake disc
Warning
Danger of accidents Reduced braking efficiency due to worn brake disc(s).
– Change the worn brake disc(s) without delay. (Your authorized KTM workshop will be glad to help.)
400480-10
– Check the thickness of the brake disc in several places to see if it conforms to measure-
ment .
Info
Wear reduces the thickness of the brake disc in area of the brake disc.
Brake disc - wear limit
Rear 4.5 mm (0.177 in)
» If the brake disc thickness is less than the specified value:
–
Change the brake disc. x
