ELECTRIC
AL
SYSTEM
136

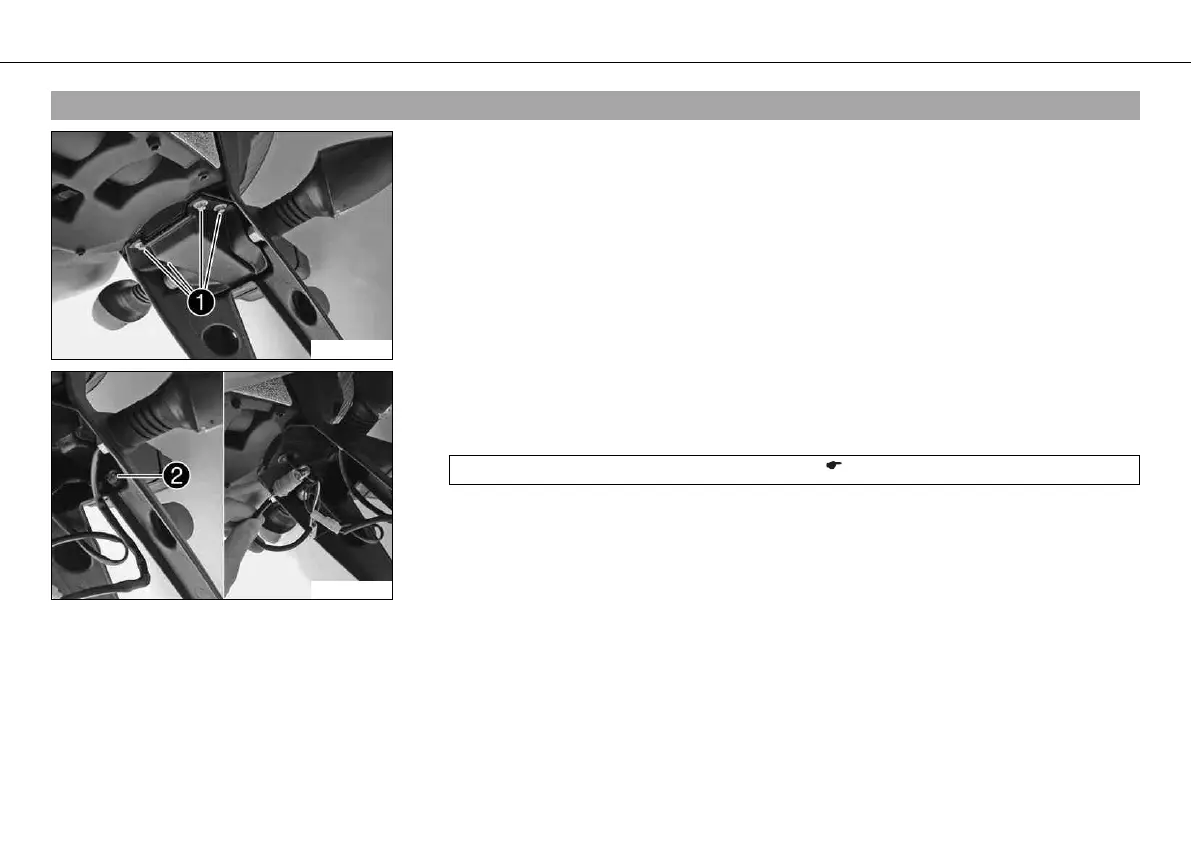

13.11
Changing
the
license
plate
lamp
700602-01
–
Remove
screws
.
–
Remove
the
license
plate
lamp
cover.
700603-01
–
Pull
holder
carefully
out
of
the
bracket.
–
Remove
the
bulb.
–
Position
a
new
light
bulb
in
the
holder.
License
plate
lamp
(W5W/socket
W2.1x9.5d)
(
p.
187)
–
Carefully
position
the
holder
with
the
bulb
into
the
bracket.
137
