ELECTRICAL SYSTEM 127
101145-10

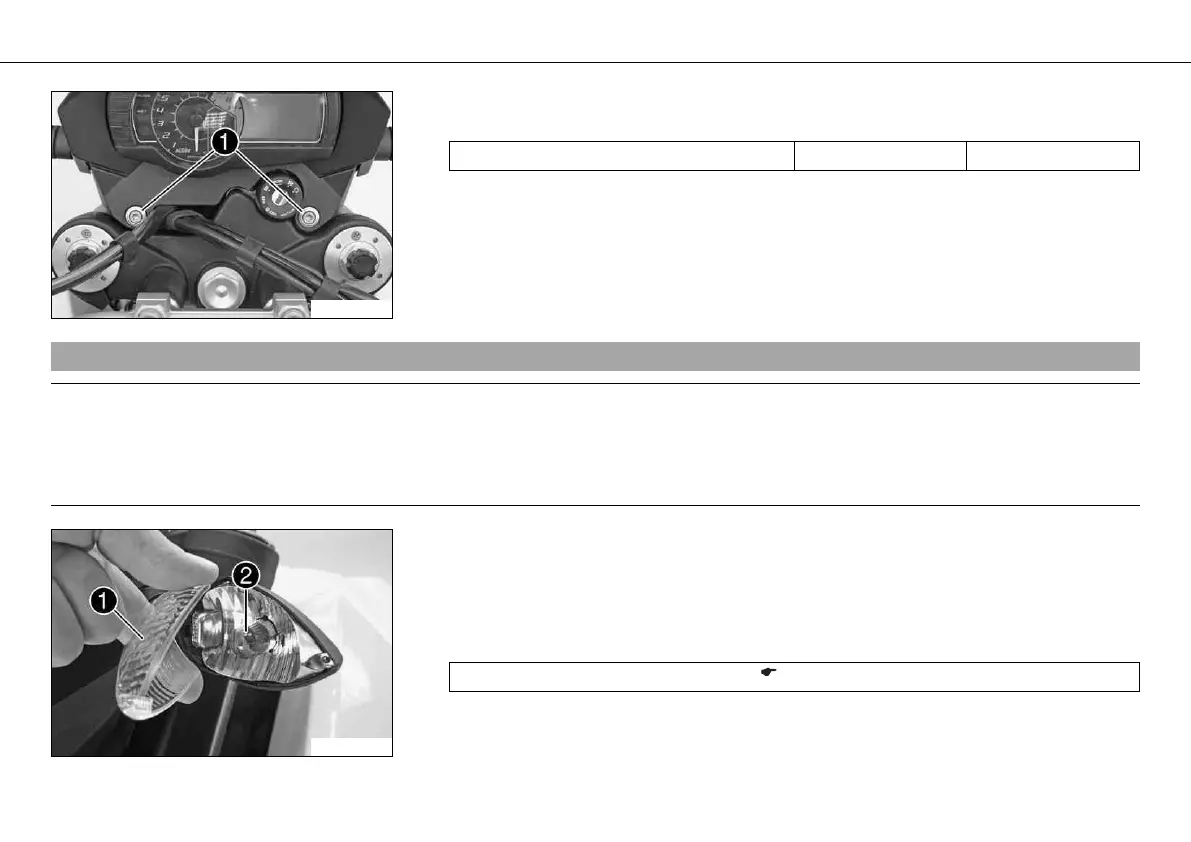

– Position the headlight mask. Mount and tighten screws .
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
– Check that the lighting is functioning properly.
13.8Changing the turn signal bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease before
mounting.
101147-10
– Remove the screw on the rear of the turn signal housing.
– Carefully remove diffuser .
– Press bulb carefully into the socket, turn it counterclockwise by about 30°, and pull
it out of the socket.
– Press the new bulb carefully into the socket and turn it clockwise until it stops.
Turn signal (RY10W/socket BAU15s) ( p. 186)
– Check the turn signal to make sure it is functioning properly.
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it engages in the thread. Tighten
the screw slightly.
