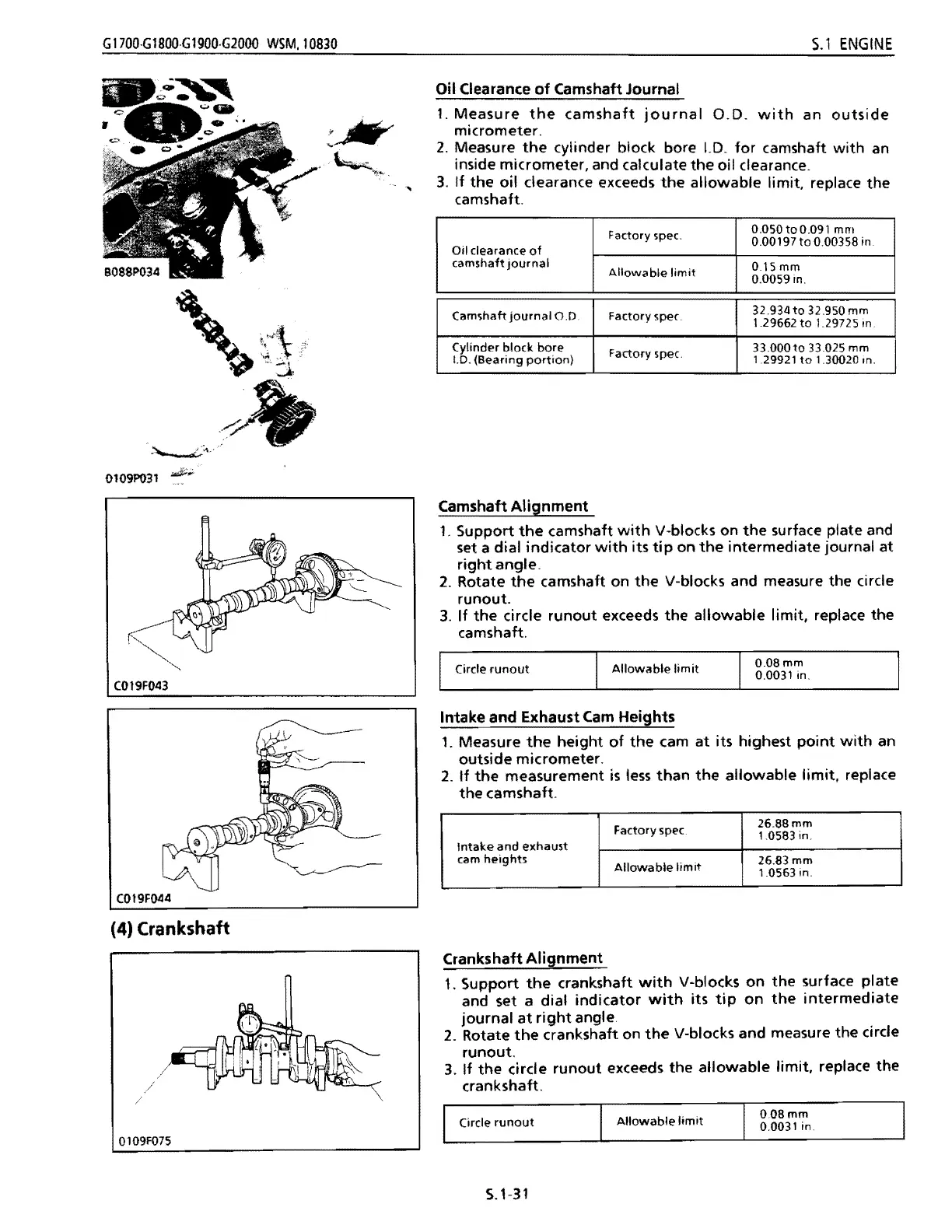

G 1700·G 1800·G 1900·G2000 WSM. 10830
S.1 ENGINE
.: ....... __ :> ...
Oil Clearance of Camshaft Journal
1. Measure the camshaft journal D.D. with an outside
micrometer.
2. Measure the cylinder block bore I.D. for camshaft with an
inside micrometer, and calculate
the oil clearance.
...
3. If the oil clearance exceeds the allowable limit. replace the
camshaft.
Oil clearance of
Factory spec.
0.050 toO.091 mrn
0.00197
to 0.00358 in
camshaft Journal
Allowable limit
0.15mm
0.0059 in.
Camshaft
journal O.D
Factory
spec
32.934 to 32.950 mm
1.29662
to 1.29725 In
Cylinder block bore
tD. (Bearing portion)
Factory spec.
B.OOOto 33.025 mm
1.29921 to 1.30020 In .
0109P031 J;;,.;
COl9F043
Camshaft Alignment
1. Support the camshaft with V-blocks on the surface plate and
set a dial
indicator with its tip on the intermediate journal at
right angle.
2. Rotate the camshaft on the V-blocks and measure the circle
runout.
3. If the circle runout exceeds the allowable limit, replace the
camshaft.
0.08mm
Circle fun out
Allowable limit
0.0031 in.
Intake and Exhaust Cam Heights
1. Measure the height of the cam at its highest point with an
outside micrometer.
1. If the measurement is less than the allowable limit, replace
the camshaft.
COI9F044
(4) Crankshaft
0109F075
26.8Bmm
yspec.
1.0583 in.
Intake and exhaust
cam
heights
Allowable limit
26.83 mm
1.0563 in.
Crankshaft Alignment
1. Support the crankshaft with V-blocks on the surface plate
and set a dial indicator with its tip on the intermediate
journal at right angle.
1. Rotate the crankshaft on the V-blocks and measure the circle
runout.
3. If the circle runout exceeds the allowable limit. replace the
crankshaft.
O.OBmm
Circle runout
Allowable limit
0.0031 in.
S.1-31
177

Kubota G1700 4WS Specifications

General

Type	Lawn Tractor
Engine Model	Kubota D662
Transmission Type	Hydrostatic
Drive Type	4WD
Steering	4-wheel steering
Tire Size (Rear)	23x10.50-12
Engine Type	Diesel, liquid-cooled, 3-cylinder
Width	107 cm
