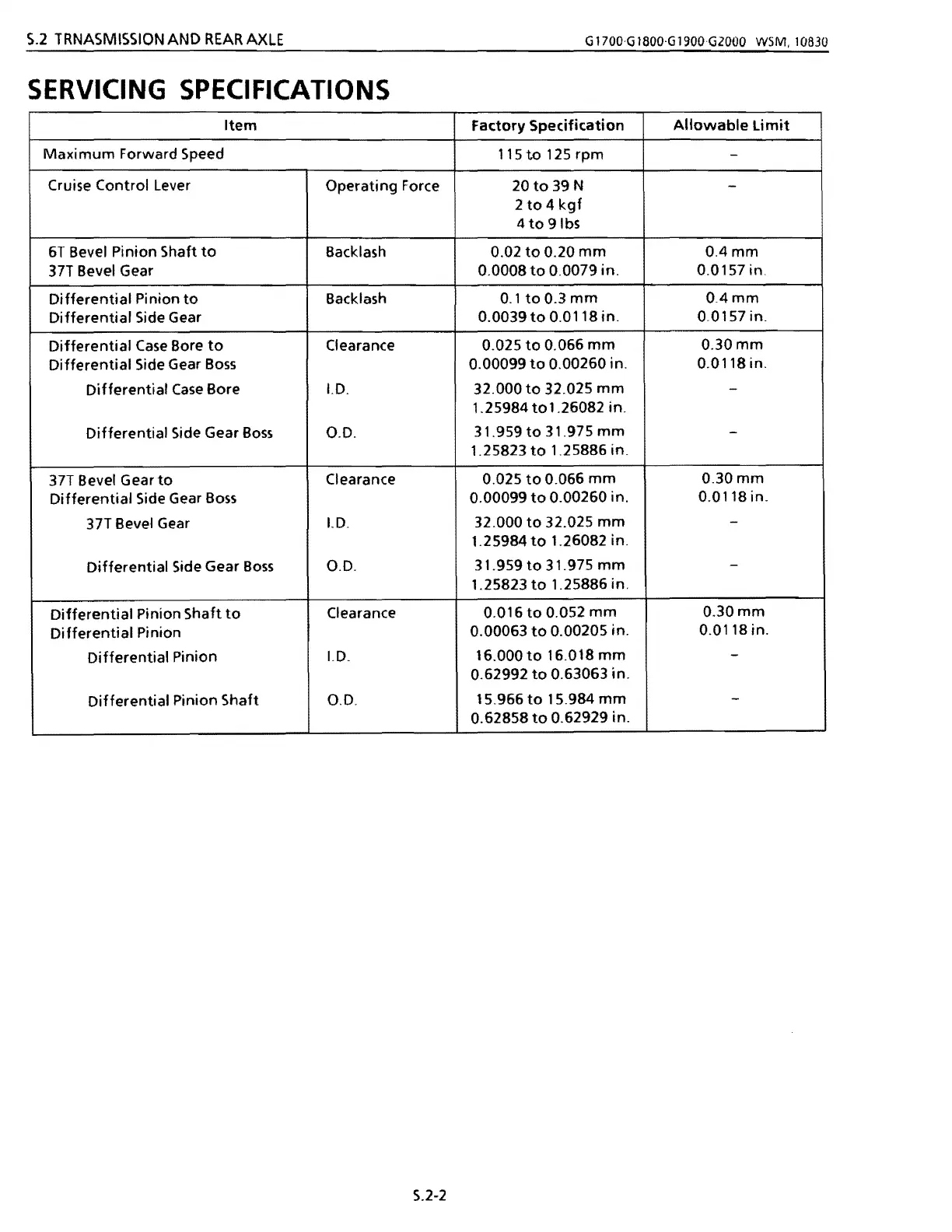

S.2 TRNASMISSION AND REAR AXLE
G1700G1800·G1900G2000 WSM.l0830
SERVICING SPECIFICATIONS
Item
Factory Specification
Allowable Limit
Maximum Forward Speed
115 to 125 rpm
Cruise Control Lever
Operating Force
20
to 39 N
2
to 4 kgf
4to 91bs
-
6T Bevel Pinion Shaft to
37T Bevel Gear
Backlash 0.02
to 0.20 mm
0.0008 to 0.0079 in.
0.4mm
0.0157in
Differential Pinion to
Differential Side Gear
Backlash
0.1 to 0.3 mm
0.0039 to 0.0118 in.
04mm
0.0157 in.
Differential Case Bore to
Differential Side Gear Boss
Clearance
0.025
to 0.066 mm
0.00099 to 0.00260 in.
0.30mm
0.0118in.
Differential Case Bore
I.D. 32.000
to 32.025 mm
1.25984 to 1.26082 in.
-
Differential Side Gear Boss O.D.
31.959
to 31.975 mm
1.25823 to 1.25886 in.
-
37T Bevel Gearto
Differential Side Gear Boss
Clearance
0.025
to 0.066 mm
0.00099 to 0.00260 in.
0.30
mm
0.0118in.
37T Bevel Gear
I.D.
32.000
to 32.025 mm
1.25984 to 1.26082 in.
-
Differential Side Gear Boss
O.D.
31.959 to 31.975 mm
1.25823 to 1.25886 in.
-
Differential Pinion Shaft to
Differential Pinion
Clearance
0.016
to 0.052 mm
0.00063 to 0.00205 in.
0.30mm
0.0118 in.
Differential Pinion
I.D.
16.000
to 16.018mm
0.62992 to 0.63063 in.
-
Differential Pinion Shaft
O.D.
15.966
to 15.984 mm
0.62858 to 0.62929 in.
-
S.2-2
240

Kubota G1700 4WS Specifications

General

Type	Lawn Tractor
Engine Model	Kubota D662
Transmission Type	Hydrostatic
Drive Type	4WD
Steering	4-wheel steering
Tire Size (Rear)	23x10.50-12
Engine Type	Diesel, liquid-cooled, 3-cylinder
Width	107 cm
