G 1700·G 1800·G 1900·G2000 W5M, 10830 5 MOWER

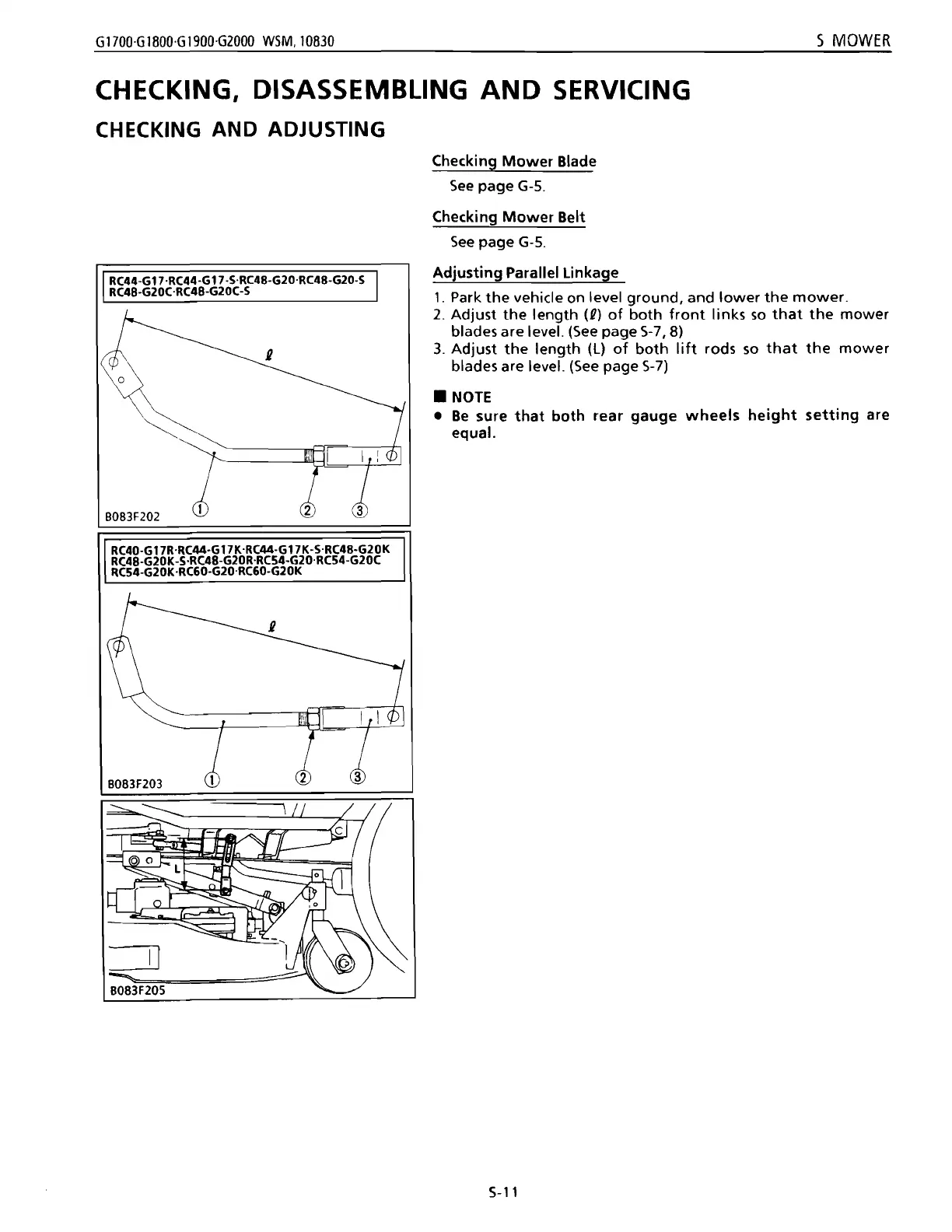

CHECKING, DISASSEMBLING AND SERVICING
CHECKING AND ADJUSTING
Checking Mower Blade
See page G-S.
Checking Mower Belt
See page G-S.
RC44-G 17 ·RC44-G 17 -S·RC48-G20·RC48-G20-S
RC48-G20C·RC48-G20C-S
BOB3F202
RC40-G 17R·RC44-G 17K·RC44-G 17K-S·RC48-G20K
RC48-G20K-S·RC48-G20R·RC54-G20·RC54-G20C
RC54-G20K ·RC60-G20·RC60-G20K
II
B083F20S
Adjusting Parallel linkage
1. Park the vehicle on level ground, and lower the mower.
2. Adjust the length (9) of both front links so that the mower
blades are level. (See page 5-7, 8)
3. Adjust the length (L) of both lift rods so that the mower
blades are level. (See page 5-7)
• NOTE
• Be sure that both rear gauge wheels height setting are
equal.
5-11
375

Kubota G1700 4WS Specifications

General

Type	Lawn Tractor
Engine Model	Kubota D662
Transmission Type	Hydrostatic
Drive Type	4WD
Steering	4-wheel steering
Tire Size (Rear)	23x10.50-12
Engine Type	Diesel, liquid-cooled, 3-cylinder
Width	107 cm
