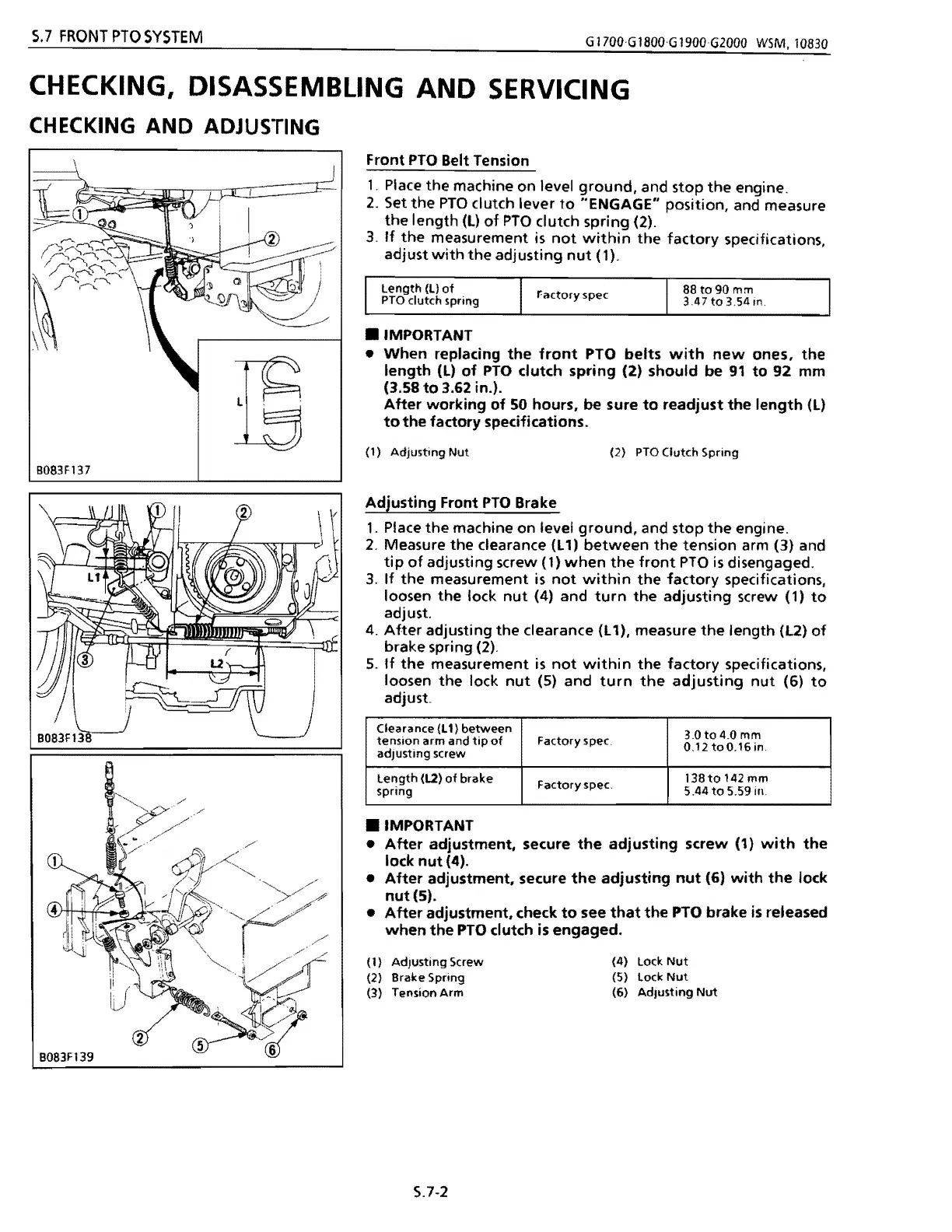

5.7
FRONT
PTO
SYSTEM
G1700G1BOO·G1900G2000
WSM.10830
CHECKING, DISASSEMBLING
AND
SERVICING
B083F137
CH
ECKING
AND
ADJUSTING
Front
PTO
Belt Tension
1.
Place
the
machine on level
ground.
and stop
the
engine.
2. Set
the
PTO
clutch lever
to
"ENGAGE"
position.
and measure
the
length
(l)
of
PTO
clutch spring (2).
3.
If
the
measurement
is
not
within
the
factory
specifications.
adjust
with
the
adjusting
nut
(1).
length
el)
of
88
to
90 mm
ractory
spec
PTO
dutch
spring
347
to
3.54
in .
• IMPORTANT
•
When
replacing
the
front
PTO
belts
with
new
ones,
the
length
(L)
of
PTO
clutch
spring
(2)
should
be
91
to
92
mm
(3.58
to
3.62 in.).
After
working
of
50 hours. be sure
to
readjust
the
length
(L)
to
the
factory
specifications.
(1)
Adjusting
Nut
e2}
PTO
Clutch Spring
Adjusting
Front
PTO
Brake
1.
Place
the
machine on level
ground.
and stop
the
engine.
2.
Measure
the
clearance
(L
1)
between
the
tension arm (3) and
tip
of
adjusting screw
(1)
when
the
front
PTO
is
disengaged.
3.
If
the
measurement
is
not
within
the
factory
specifications.
loosen
the
lock
nut
(4) and
turn
the
adjusting
screw (1)
to
adjust.
4.
After
adjusting
the
clearance
(L
1), measure
the
length
(L2)
of
brake spring (2).
5.
If
the
measurement
is
not
within
the
factory
specifications,
loosen
the
lock
nut
(5) and
turn
the
adjusting
nut
(6)
to
adjust.
Clearance el1)
between
tension
arm and
tip
of
adjusting screw
Factory spec
3.0t04.0mm
0.12
toO.16
in.
length
(L2)
of
brake
spring
Factory spec.
138
to
142
mm
5.44
to
S.S9 in.
• IMPORTANT
•
After
adjustment,
secure
the
adjusting
screw (1)
with
the
lock
nut
(4).
•
After
adjustment,
secure
the
adjusting
nut
(6)
with
the
lock
nut
(S).
•
After
adjustment,
check
to
see
that
the
PTO
brake is released
when
the
PTO
clutch is
engaged.
(1)
Adjusting
Screw
(4)
locI<.
Nut
(2) Brake Spring
(S)
lock
Nut
(3) Tension Arm
(6)
Adjusting
Nut
S.7-2
