G1700·G 1800·G1900·G2000 W5M,10830
S.8 ELECTRICAL SYSTEM
(2) Starter [62000]

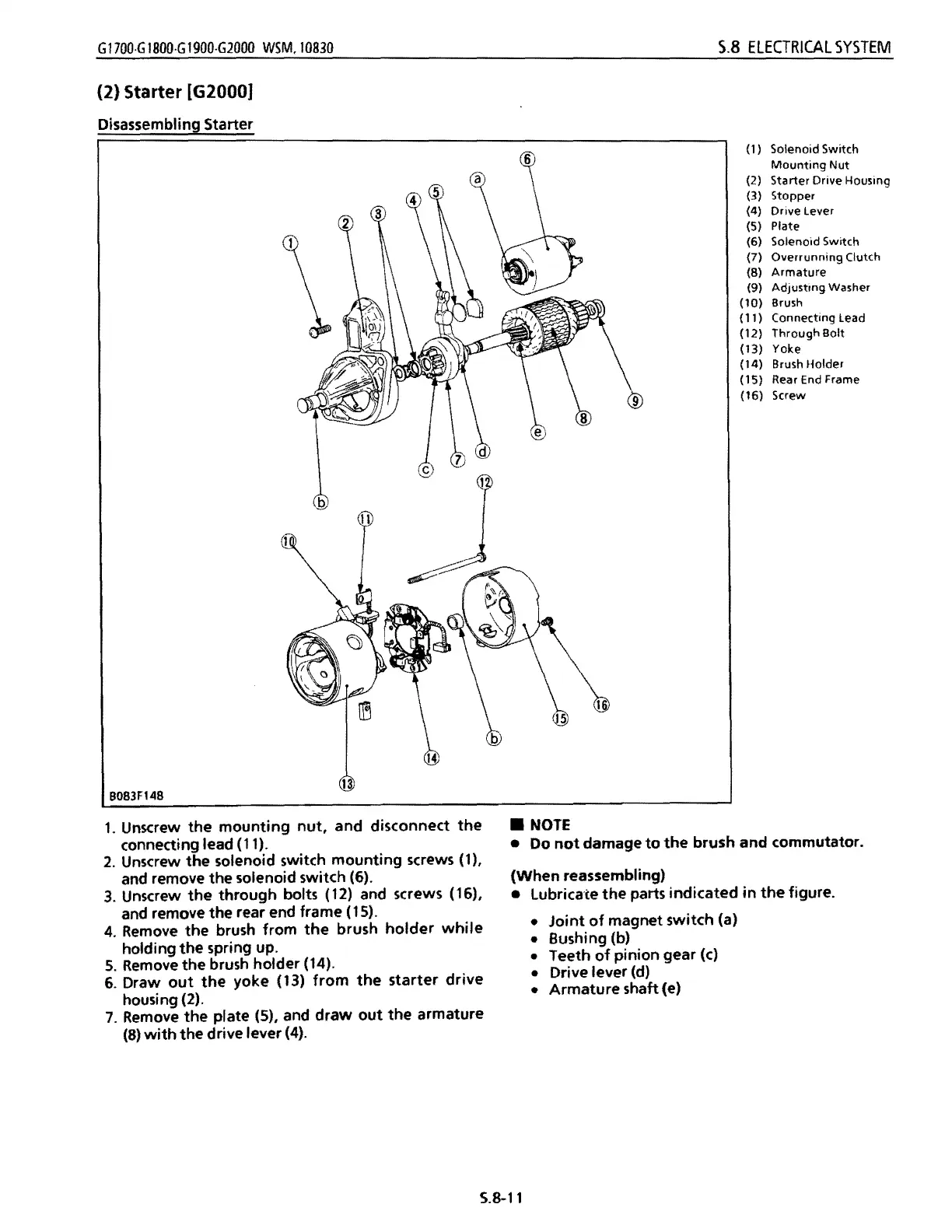

Disassembling Starter
B083F148
~
15
(1)
Solenoid Switch
Mounting Nut
(2)
Starter Drive Housing
(3)
Stopper
(4)
Drive lever
(5) Plate
(6) Solenoid Switch
(7)
Overrunning Clutch
(8) Armature
(9)
Adjusting Washer
(10) Brush
(11)
Connecting lead
(12) Through Bolt
(13)
Yoke
(14)
Brush Holder
( 15) Rear End Frame
(16)
Screw
1. Unscrew the mounting nut, and disconnect the
connecting lead (11).
2. Unscrew the solenoid switch mounting screws (1),
and remove the solenoid switch (6).
3. Unscrew the through bolts (12) and screws (16),
and remove
the rear end frame (15).
4. Remove the brush from the brush holder while
holding the spring up.
5. Remove the brush holder (14).
6. Draw out the yoke (13) from the starter drive
housing (2).
7. Remove the plate (5), and draw out the armature
(8) with the drive lever (4).
• NOTE
• Do not damage to the brush and commutator.
(When reassembling)
• Lubricate
the parts indicated in the figure.
•
Joint of magnet switch (a)
• Bushing (b)
• Teeth
of pinion gear (c)
• Drive lever (d)
•
Armature shaft (e)
5.8-11
319
