S.B ELECTRICAL SYSTEM
G1700·G1800·G1900·G1OOO WSM,10830

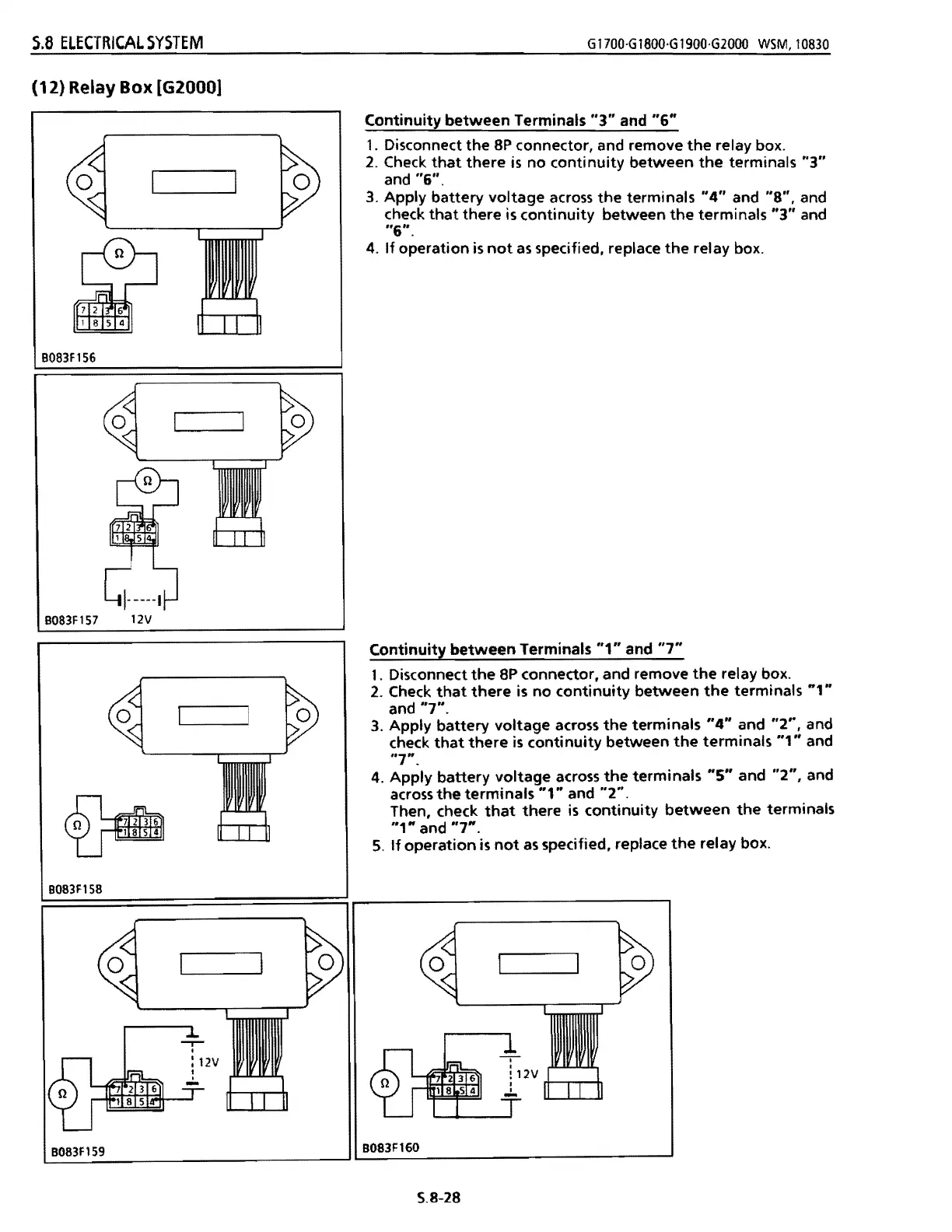

(12) Relay Box [G20001
B083F156
B083F157 12V
Continuity between Terminals "3" and "6"
1. Disconnect the 8P connector, and remove the relay box.
2. Check that there is no continuity between the terminals ''1''
and "6".
3. Apply battery voltage across the terminals "4" and "8", and
check
that there is continuity between the terminals "3" and
"6·· .
4. If operation is not as specified, replace the relay box.
Continuity between Terminals "1" and "7"
1. Disconnect the 8P connector, and remove the relay box.
2. Check that there is no continuity between the terminals "1"
and "7".
3. Apply battery voltage across the terminals "4" and "2", and
check
that there is continuity between the terminals "1" and
"7",
4. Apply battery voltage across the terminals "5" and "2", and
across
the terminals "1" and "2".
Then, check that there is continuity between the terminals
"1" and "7".
5. If operation is not as specified, replace the relay box.
B083F158
B083F160
B083F159
S.8-28
342
