Kubota KX91-3a User Manual

I - 8
WSM Minor Change I Sales Engineering Section

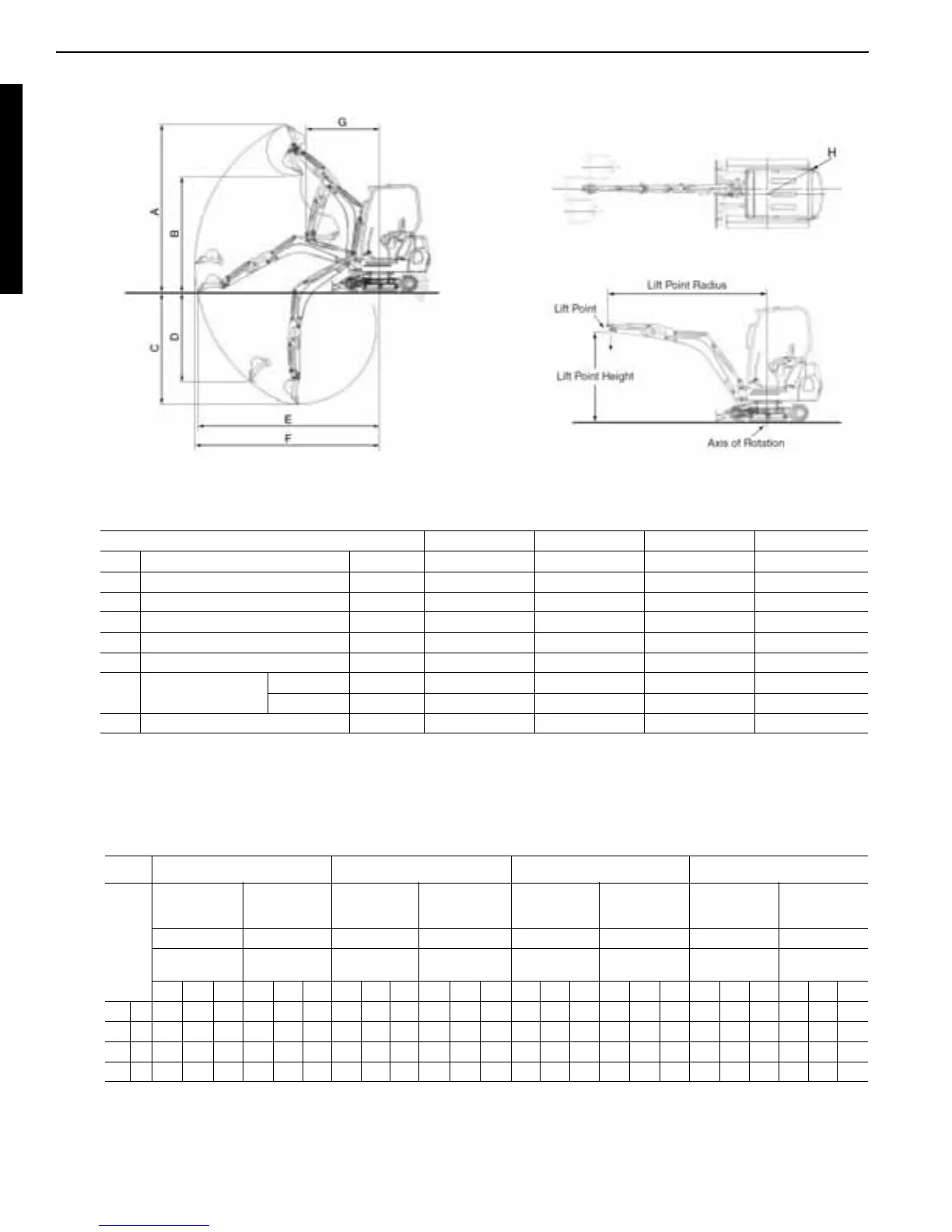

2.DIMENSIONS
3.WORKING RANGE
The company reserves the right to change the above specifications without notice. This brochure is for descriptive purpose only.
Please contact your local Kubota dealer for warranty infomation. For your safety, KUBOTA strongly recommends the use of a Rollover Pro-
tective structure (ROPS) and seat belt almost all applications.
4.LIFTING CAPACITY
Machine with ROPS canopy and rubber crawler, without bucket
Model KX91-3S U35S KX121-3S KX161-3S
A Max. digging height ft.in. (mm) 16'3" (4940) 16'3" (4945) 17'10" (5420) 18'9" (5715)
B Max. dumping height ft.in. (mm) 11'7" (3530) 11'7" (3525) 12'9" (3890) 13'8" (4155)
C Max. digging depth ft.in. (mm) 10'5" (3185) 10'4" (3140) 11'6" (3505) 12'7" (3830)
D Max. vertical digging depth ft.in. (mm) 7'10" (2390) 7'4" (2230) 8'2" (2480) 8'6" (2585)
E Max. digging radius @ ground ft.in. (mm) 16'10" (5135) 16'11" (5145) 18'0" (5475) 20'1" (6130)
F Max. digging radius ft.in. (mm) 17'3" (5245) 17'3" (5260) 18'5" (5600) 20'6" (6260)
G Min. turning radius
W/O ft.in. (mm) 6'2" (1870) 6'7" (2015) 6'9" (2060) 7'11" (2420)
W swing ft.in. (mm) 4'9" (1440) 5'3" (1603) 5'6" (1665) 6'5" (1955)
H Min. tail turning radius ft.in. (mm) 4'4" (1310) 33.5" (850) 4'3" (1300) 3'7" (1090)
U35S KX91-3S KX121-3S KX161-3S
LIFT
POINT
HEIGHT
(ft)
LIFTING CAPACITY
OVER-FRONT
BLADE DOWN
LIFTING CAPACITY
OVER-SIDE
LIFTING CAPAC-
ITY OVER-FRONT
BLADE DOWN
LIFTING CAPACITY
OVER-SIDE
LIFTING CAPACITY
OVER-FRONT
BLADE DOWN
LIFTING CAPACITY
OVER-SIDE
LIFTING CAPACITY
OVER-FRONT
BLADE DOWN
LIFTING CAPACITY
OVER-SIDE
unit=1000lba unit=1000lba unit=1000lba unit=1000lba unit=1000lba unit=1000lba unit=1000lba unit=1000lba
LIFT POINT RADIUS
(ft)
LIFT POINT
RADIUS (ft)
LIFT POINT
RADIUS (ft)
LIFT POINT RADIUS
(ft)
LIFT POINT
RADIUS (ft)
LIFT POINT RADIUS
(ft)
LIFT POINT
RADIUS (ft)
LIFT POINT
RADIUS (ft)
8 12 MAX 8 12 MAX 8 12 MAX 8 12 MAX 8 12 MAX 8 12 MAX 8 12 MAX 8 12 MAX
GL 6 2.13 1.61 - 2.13 1.42 - 1.78 1.42 1.36 1.78 1.30 1.03 3.09 2.19 2.01 3.09 1.83 1.46 4.29 2.6 2.12 4.29 2.59 1.66
4 2.79 1.76 1.58 2.52 1.39 1.10 2.42 1.58 1.43 2.29 1.27 1.01 4.03 2.44 2.15 3.15 1.78 1.43 - 3 2.25 - 2.49 1.63
2 3.28 1.91 1.63 2.42 1.35 1.08 2.95 1.74 1.50 2.18 1.23 0.99 4.66 2.67 2.27 3.02 1.73 1.41 3.9 3.33 2.36 3.9 2.4 1.59
0 3.46 1.99 - 2.37 1.33 - 3.22 1.84 1.53 2.11 1.20 0.97 4.89 2.81 2.34 2.96 1.70 1.38 4.73 3.33 2.43 4.3 2.34 1.57
