II-185
WSM Minor Change
II Service Engineering Section
i.

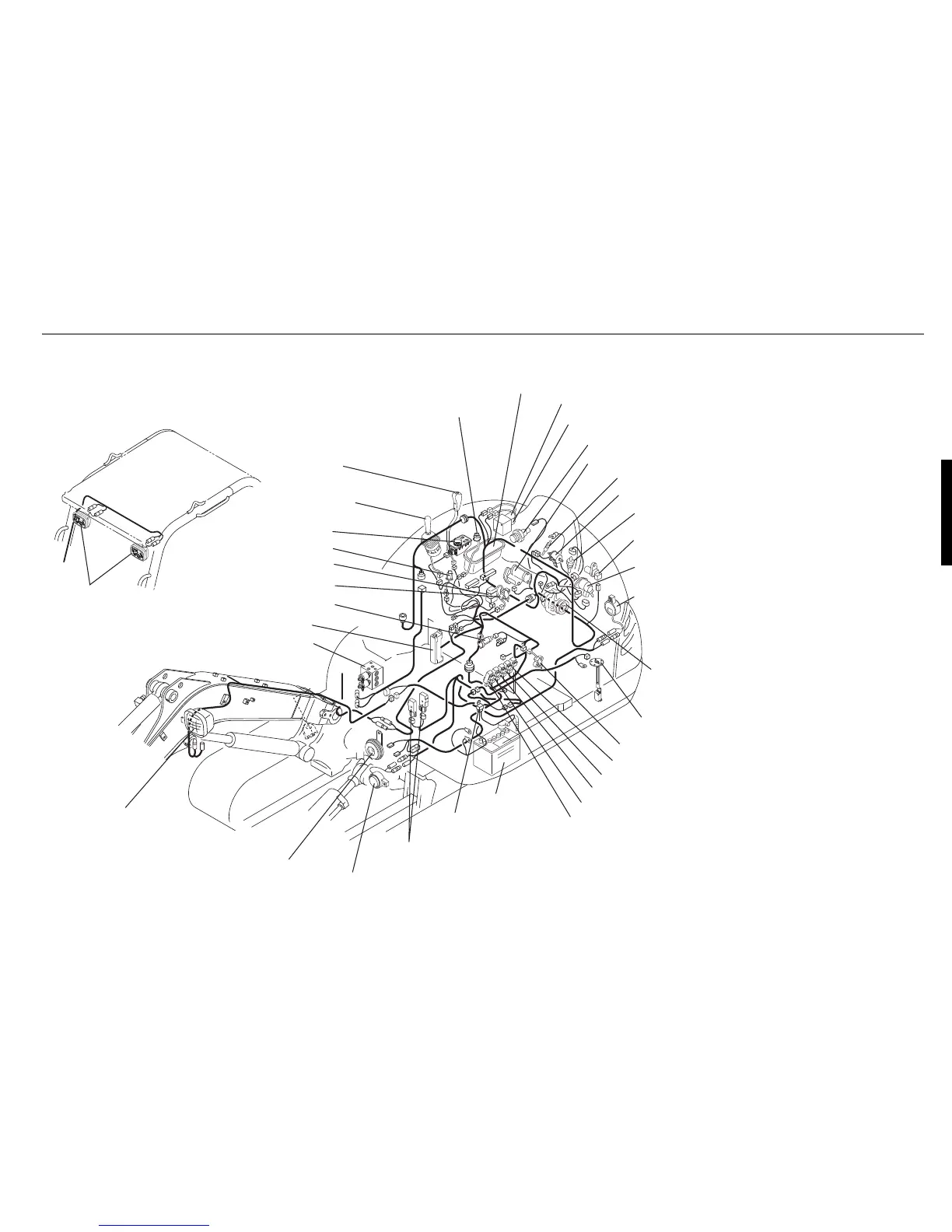

Component layout
1.
KX91-3S·
D
, 101-3·
D
, U35S, U35-3S·
D
electrical wirling
A
A
Head lamp
Work lamp
S/P solenoid valve
Fuse box
Cigar lighter, PTO
Safty lock switch
Glow relay
Main key switch
Accel. dial
Hi-low switch
S/P switch
Horn switch
Breaker lock switch
⎧
⎨
⎩
Heater switch
Meter panel
Hi-low solenoid
Unload solenoid
Engine pressure switch
Starter motor
Glow plug
Fuel pump
Water temp.
sensor
Revolution
sensor
Engine stop
solenoid
Travel buzzer
Alternator
Fuel sensor
Safty lock switch
Light relay
Horn relay
Auto release relay
Cab relay
Heater relay
Battery
Slow blow fuse
Travel sensor (KTA)
Travel buzzer (KTA)
Horn
196
198
